1 ABOUT THIS DIPLOMA THESISThis diploma thesis should give an
overview of the current situation of the group calendaring market. Group
calendaring is a Groupware application, and
Groupware is the implementation of the
studies of the field "Computer Supported Cooperative Work". Therefore this
environment will also be investigated to show that there is not only group
calendaring, but even more applications that help groups working together.
This diploma thesis will show some of the standards involved in Groupware, and the fight for survival of
proprietary solutions and the creation of the Internet Calendaring
standards are investigated. A closer look to one open source groupware solution will show that still a lot
of work has to be done. The reader will realise how difficult it is to
build an application with a clean structure and readiness for future
extensions when several people are voluntarily working on a project.
1.1 The Environment of this Diploma ThesisOperation
Mobilisation (OM) is a christian mission
organisation that has about 40 offices in different countries. These
offices are responsible for the activities of OM
in their country or neighbouring countries. Especially during the summer
months the number of involved people increases due to special outreaches.
The whole administration and organisation is done by those offices. The
office of the International Coordination Team (ICT) in Carlisle provides, beside other help and
tools, the OM Standard
Linux Server. The Linux team develops and maintains this configured
distribution of Redhat Linux. The goal of this standardised server is to have one solution for all offices
with the same configuration. That simplifies the support by the Carlisle
office and means that not every office has to figure out the best suitable
Linux configuration. One problem is the very different situations of
the offices. Some offices are based in poor countries with a minimum of
technical infrastructure, e.g. there is only an expensive dialup
connection to the Internet. There are 2 ocean-going ships as well, with
each 300 staff and 50 workstations on board. Other offices are based in
Europe and the United States and can use a really good technical
infrastructure. Smaller offices often have different needs than huge
offices. The aim of the computers in OM is to
support the people working together, and to give them more time for doing
the real job which is described by OM with these
words: "[...] bring a message of hope to the peoples of the world. [...]
we love Jesus and we want others to have the opportunity to hear about
Him. Operation Mobilisation works in more than 80 countries, motivating
and equipping people to share God's love with people all over the world.
OM seeks to help plant and strengthen churches,
especially in areas of the world where Christ is least known." [OM]
1.2 The TaskThe task was to collect the requirements concerning
an email and calendaring solution with support
of Palm synchronisation to provide groupware functionality for the existing OM Standard Linux Server.
Furthermore a general survey of existing solutions on the market should be
given. Using this survey, the group of solutions that best fit the
requirements should be specified, and finally one chosen solution needs to
be integrated into the server.
1.3 The Structure of this Diploma ThesisThe first chapter
contains this introduction.
The second chapter investigates the
term "Computer Supported Cooperative Work". It refers to the possible
applications of CSCW, and describes the
underlying technologies involved. Also the relation to Multimedia and Pervasive Computing is mentioned.
The new term "enterprise application integration" also is remotely
connected with CSCW. This chapter describes the
ideas behind this diploma thesis.
In the third chapter the main
focus is on the functionality that is expected from email, group calendaring and synchronisation. The
standards used to realise the ideas are named and described.
The
fourth chapter consists of two parts: First there is the description of
how the analysis was realised, and in the second part an outline of the
current market situation is given. So this chapter contains information
about the implementations of the ideas of chapter 2 by using the standards
described in chapter 3.
The fifth chapter covers the specific
requirements and solutions for OM, and contains an
outlook for future computer support for OM.
A summary of the diploma thesis is in chapter 6.
The
appendix holds some tables and installation instructions that were created
during the work on the topic.
All information can also be found on
the enclosed CD-ROM. The diploma thesis document and the results of the
analysis are originally in XML format and were
converted by PHP programs to well structured and
linked HTML documents. All texts taken from the Internet are also saved
on the CD-ROM, and they can be easily accessed via the links in the HTML
version of the diploma thesis.
2 COMPUTER SUPPORTED COOPERATIVE WORKThis chapter describes some of
the ideas that build the basis and the background of groupware products. The terms "Computer
Supported Cooperative Work" and "Groupware"
are explained during this chapter, but also other terms like "Pervasive Computing" and
"Enterprise Application Integration" are mentioned, which influence groupware applications. The main focus is
put on scheduling and on calendaring because this was the field of CSCW that was most required by OM.
2.1 Definition of Computer Supported Cooperative Work and GroupwareIn 1988, Greif described
Computer Supported Cooperative Work (CSCW) in this way: "CSCW
is an identifiable research field focused on the role of the computer in
group work". [GREIF]
Wilson wrote in 1991: "CSCW is a generic
term which combines the understanding of the way people work in groups
with the enabling technologies of computer networking, and associated
hardware, software, services and techniques."
[WILSON]
What is then the relationship between CSCW
and groupware? In the words of Borghoff and
Schlichter, "CSCW includes the universal
scientific research field, groupware deals
with the respective practical system solutions of collaborative work" [BORGHOFF,
p. 88]. And further on they say: "Groupware refers to software systems
supporting teamwork and integrating theoretical foundations achieved by CSCW research" [BORGHOFF,
p. 92]. Johansen states that "Groupware can involve software, hardware, services and/or group process support" [JOHANSEN].
Therefore groupware is the name for
computer systems whose functionality is based on the results of the CSCW research. In the following parts of this
second chapter often the term "groupware"
is mentioned, although the title of the chapter is "CSCW". But that is just the right way: In fact the
topic of CSCW is to define the term "groupware" and to fill it with appropriate
meaning.
2.2 Groups being supported by groupwareThe goal of groupware is to support groups or teams in
their work. It is assumed that these groups have a "common task (or
goal)" [ELLIS
et al.] that they try to achieve by working together. Borghoff and
Schlichter write about different types of groups: They call groups that
only communicate via computer "electronic groups", in contrast to
"electronically supported groups" which have both personal contacts and
electronic communication [BORGHOFF,
p. 93]. The goal of CSCW is to "[make]
distributed communications as efficient as face-to-face communication."
[BORGHOFF,
p. 94]. The groupware system is
supposed to "provide an interface to a shared environment" [ELLIS
et al.]. That means that the members of the group are accessing the
same objects in the environment at the same or different times. That is
especially a requirement when these objects have to be changed by
different persons until the objects are in the aimed state. There are
different degrees of a shared environment and a common task. That means
there are a lot of very different kinds of groupware applications, which are
investigated in a further chapter. Therefore, all groups of people
that work towards a common goal and want to use electronic communication
to deal with a shared environment, need groupware applications in order to work and
communicate fast and efficiently.
2.3 Classification of GroupwareGrudin's extended groupware classification according to time
and space is shown in the following table [GRUDIN].
Grudin extended the classic classification by the factor predictability.
Space/time |
Same time (synchronous) |
Different times (asynchronous) |
predictable |
unpredictable |
Same place |
face-to-face meeting |
shift-work |
blackboard |
Different places (predictable) |
video conference |
email |
joint editing of documents |
Different places (unpredictable) |
mobile phone conference |
non-real-time computer conference |
workflow
management | Here is just one example how to read
this table: Email is a groupware application that assumes different
predictable places, which are the different mail servers that normally are not in the same place
or on the same machine, but their position is predictable because they
don't move. If you want to send someone an email, you just send it to his email address which is associated with his email server. The
sender and the receiver have access to an specific email at different times: The sender writes it,
then he sends it and looses control over the email. He only can read it again if he has a copy
of the mail, but cannot change the instance of the email anymore that he sent away. While the time
difference between the sending and the receiving is not a guaranteed fixed
time, the asynchronous access to the email is
predictable: When the mail has left the email
server of the sender, he cannot access it
anymore, and as soon as the email arrives at
the email server
of the receiver, he has complete control over the mail. So it is
predictable that both would never access the mail at the same time and
that the receiver would never be able to read the mail before the sender
has sent it. What about calendaring? It would fit in the grid at
"predictable different places" and "unpredictable different times". The
argument for the place is the same as with the email, because we are again dealing with a server that manages the calendar. The access to a calendar item is asynchronous because all users
can read and write to a calendar
independently, according to their rights on that specific calendar. One user can add a new appointment, two hours later another user
reads it, and again 30 minutes later the first user cancels it. You cannot predict the chronological
order of different people accessing the calendar or one of its items.
2.4 Applications of GroupwareThis
chapter gives a short description of some application areas of CSCW. It should help answer the question: How can
CSCW be used in the daily working
life?
2.4.1 Email / Message
systemsEmail is one of the most
used groupware applications, but it is
only a loose communication link between the group of people using it:
People are not forced to answer to requests,
and the information contained in different emails is not easy to be organised. Some emails only contain small parts of a discussion,
other messages are holding important decisions or profound drafts. Anyway,
email systems provide a fast and direct
communication channel for text messages and other attached media files.
Groups can use email communication by
either sending their mails to a mailing list which distributes them to all members of
the group that have subscribed to the list. An archive of a mailing list provides the history of past
discussions and communication, which helps new members to join the group
and to catch up the information that they otherwise would miss. The
usenet with its newsgroups is a different way of communication. Its
main goal is to support distributed discussions. So one of the advantages
of newsgroups is that all news or message
items are saved only once on a server, and the
users can download those items they are interested in. This overcomes the
heavy traffic caused by mailing lists,
where all incoming emails are delivered to all
subscribers. And naturally it provides an archive of written news. There
is a clear hierarchy of the messages, but this is also provided with
simple mailing lists, when a message
has reference tags to previous mails in the thread. The disadvantage
of the usenet is that a newsgroup has to be
checked regularly if you are expecting answers to your question or
comments to your statement, and you need to remember where in the
hierarchy your article was placed. A forum is also an application for supporting discussions
like the usenet, but it is represented in HTML
and is not distributed across the network but runs centralised on one server. Newsgroups, mailing lists and forums can be moderated, and the names and email addresses of involved users can be hidden.
2.4.2 ConferencingConferences and meetings are an essential part
of team work, because only in a meeting the group can discuss the
different views about the goal, talk about how far the group have got to
reach that goal, and what actions have to be taken in the coming weeks or
months to come even more closer to the solution of the given task.
Borghoff and Schlichter give some more "benefits of group meetings"
[BORGHOFF,
p. 374]: Sharing of ideas, modification and synergy of ideas,
different people can find problems more easily with an idea than the
person that had the idea, encouragement by knowing that you belong to a
team, and people can learn from each other. But there are also
problems with meetings described in [BORGHOFF,
pp. 374-375], e.g. how to partition the time and right of speaking
between the participants, how to come up
with new ideas when still listening to other's ideas, having not enough
self-confidence to speak out new ideas, or some members of the group are
dominating the meeting and the others are just passively participating.
Borghoff and Schlichter describe different kinds of conferencing which
can be supported by groupware applications
in different ways. The following information is taken from [BORGHOFF,
pp. 95-100] if not another source is mentioned. There are
face-to-face meetings,
i.e. all attendees are physically in one
meeting room. The use of computers can be helpful in preparing and showing
a presentation that helps all people to visualise what the speaker is
talking about. A groupware application
could also help record the meeting minutes or even more detailed
information about the discussion. If necessary, all attendees could be provided with a personal
computer so that they can contribute to the collection of information on
e.g. an electronic whiteboard at the front of the conference room.
Another type of conference is called distributed electronic
meeting. Such a
meeting is between people that are not in the same room but can be in
another building across the road or on the other side of the world.
Borghoff and Schlichter divide this type of meeting in 4 categories:
- Asynchronous computer conferencing is normally realised by the use
of email. It is not required that the people
take part in the conference at the same time. This is also called
"non-real-time computer conferencing" [BORGHOFF,
p. 122]. Such conferences take a lot of time till they are finished
with a usable result, but they don't appear on any schedule. So the
danger is to underestimate the time that is needed for such conferences.
- Shared screen and audio or video connection: The participants can see the same screen and
are able to talk about the subject. The identical screen is realised by
a data link, and the applications in use should support the principle
What You See Is What I See (WYSIWIS). This principle enables the attendees of such a meeting to work on the
same document at the same time.
There needs to be an additional link
between the participants that carries
the audio or video information. If the video images are not displayed on
an extra screen but integrated into a window beside the window of the
shared application on the screen of each participant, this type of conference is
called "desktop conferencing" [BORGHOFF,
p. 122].
- There is the possibility that there are not only human attendees, but also pieces of software called
agents that act in a programmed manner
and can, for example, support the meeting members by searching
information about mentioned keywords, or by recording the minutes on
their own. These agents could also
participate in a face-to-face meeting, but then
someone would be required to control the agent which means to type with the spoken
information.
- In an Virtual Reality conference (VR conference) all participants are represented in the
virtual space by avatars. Those avatars are virtual characters that are
controlled by the hardware that is monitoring the belonging participant. The hardware can be e.g. a
microphone for the audio information, or a data glove to visualise the
movements of the attendee.
2.4.3 Calendaring and SchedulingCalendaring and Scheduling is
necessary to enable a group to organise meetings. Calendaring is the main
subject of this diploma thesis, so this topic gets more attention than the
other applications of groupware. This
chapter should give an idea about the terms involved in calendaring and
scheduling which are used by most applications in the same way. A detailed
example of a calendaring standard is described in the chapter 3.3, which
is about the Internet calendaring standards.
Calendaring and sociological implicationsPalen describes in her
dissertation the history and the background of calendaring. She states
that schedules make "it possible to dependably coordinate with others" [PALEN,
p. 40]. She says there are public schedules, that determine e.g. when
shops are open, or when there is a public holiday. Our public schedules
are also influenced by nature, which makes the difference of day and night
or summer and winter. Personal schedules allow yourself to plan your own
time, and they enable the people around you to have access to you on
agreed times in order to coordinate action. These schedules don't need a
physical representation, they often are just maintained with speech acts.
Palen also dicusses some sociological aspects of calendars and time in general. She says that
time is a possession of every person, and people can show each other
respect or low regard by either giving time or letting someone else wait
[PALEN,
pp. 27-28]. Another more practical problem is that if management
introduces the use of shared electronic calendars, they are the ones who mainly get the
benefit from it because it is easier to organise meetings [PALEN,
p. 10]. But it is up to the normal group member to enter all his
appointments into the shared calendar which
often takes more time than just to maintain a paper calendar [PALEN,
p. 11]. There is a "critical mass" [PALEN,
p. 113] of people needed that maintains their calendars so that group calendaring can be used
effectively in an organisation. Another challenge of group calendaring
applications is that some people already use their own personal calendar application with special advantages,
e.g. portability if it runs on a Personal Digital Assistant (PDA), or it supports a special to-do list. Those people have to manage the
synchronisation of the different calendars
[PALEN,
p. 111]. It is necessary to convince those people how important it is
to have shared calendars so that they are
willing to take on the additional effort of synchronising. But
calendaring can also be a great help to remind people of recurring
personal dates, e.g. birthdays of old friends. That helps to stay in
contact, and this is a good social component [PALEN,
p. 112].
Personal Calendaring and SchedulingReekes, Vice President of
MeetingMaker, a company involved in calendaring software, describes the
evolution of electronic calendaring: It started with personal calendars, was extended to group and shared calendars, and was finally developed to
collaborative scheduling. The following lines are a summary of Reekes'
text [REEKES].
A personal calendar is in Reekes'
definition a simulation "of paper-based day planners" [REEKES,
p. 1]. It helps the user to "track appointments and manage daily
tasks". A personal calendar fits together
with the idea of Personal Information Management (PIM). PIM applications
started to exist on the desktop of personal computers, and then got their
own hardware with the invention of the Personal Digital Assistant
(PDA). A group and shared calendar is an improvement to the personal calendar because it gives the opportunity to
see the calendars of other people in the
organisation. So the calendar is not
isolated from its environment, but shared inside the organisation. The
user of a shared calendar knows about the
availability of his colleagues and can therefore better coordinate his own
time or the time of the group. The use of group calendaring became
possible when client/server technology
was becoming cheaper and more common. Collaborative scheduling allows
the user to interact with the other users through the calendar software, and to arrange meetings
synchronously and in real time. That means he can invite other persons to
a meeting, and immediately get the response from their calendaring
software whether they are free at that time or
not, and then he can book the time on their calendar so that later attempts of arranging a
meeting would realise that there could be already another meeting at that
time. Another source from Alt-N Technologies states that scheduling
depends on "current and accurate" [ALT-N
T] personal calendars, otherwise the
booking of meetings would not be reliable. It has to be assumed that the
free time on the calendar is not already booked by appointments
not listed there.
Meetings, Appointments, EventsThe
Microsoft Outlook 2000 Online Help defines these terms in this way [MSOUTLOOKHELP,
see Using calendar; About appointments, meetings and events]:
"Appointments are activities that you schedule in your Calendar that do not involve inviting other
people or reserving resources." "A meeting is an appointment you
invite people to or reserve resources for." "An event is an
activity that lasts 24 hours or longer." So appointments are all
incidents in which only the user is involved. A personal calendar would only contain these types of
entries. Meetings affect at least 2 or more calendars, and often need to be confirmed by
the other attendees. An example for an event could be a vacation or a seminar. Sometimes
there are extra calendars for the details
of a seminar, but the whole happening as one entity is called an event.
Other Items of a CalendarThere are
also other components of a calendar beside
meetings, appointments and events. People also
want to save notes or journals, to-do entries, and alarms in their calendar. These entries can often be linked to
real calendaring incidents. Notes or journals
help to extend the calendar to be like the
personal paper notebook you carried with you, where you wanted to have a
notice beside an appointment describing your personal thoughts about it.
To-do items describe activities that are not
bound to a special date or time, but have to be done during a given period
of time. Alarms are useful to be reminded about
an event. For example, an alarm can either remember you a day before the event to prepare something for the event, or it can help you 5 minutes before to
stand up from the desk and walk to the meeting room.
PrivacyThere are different levels of privacy that a calendar can allow to its users. All calendar solutions at least allow the user to
mark a single event as private. That means that
other people just see that there is an appointment, but cannot see the
details. Some programs have all calendars
strictly private by default, and allow the user to invite other people and
give them different rights to see or change his calendar, or just to show them the time blocks
when the user is available.
Time OrganisationDepending on the level of privacy, people can
see if you are available or not available during a period of time, which
is also called a time block. A time block can be marked with 4 different
states: free, busy, tentative
and out of office. "Free" means that you are available at that time,
and "busy" means the opposite. "Out of office" also gives the other
people the information that you are not available in the given period of
time. "Tentative" is something in between.
These time blocks can either be shown to the other people as if you were
available, or in a different style so that they know you might be
available. This kind of property of a time block is used whenever an
appointment has no fixed point in time up to which it has to be done, e.g.
you just book it for the morning, but if another more important request comes in for a meeting, you can move
your personal appointment to the afternoon.
Organising a MeetingGroup calendars allow the organiser of a meeting to select the desired
attendees/resources and check at which time
they are all available. He should see the free
and busy times of all attendees/resources and therefore know when
people are available or unavailable. The invitation is either sent via email or is directly inserted into the calendar of the attendee. At that point in time, the meeting is
in the state "no response". Invited persons can accept the invitation or
decline it or set its state to tentative.
That means they might attend the meeting when nothing else is more
important.
Booking ResourcesMeetings don't only need to be attended by the
right people, but also a room needs to be booked, and perhaps some
equipment is required, e.g. a projector. That means that every resource
should have its own calendar. There can be
a manager for a resource who decides in conflict situations which group or
user should get the resource. If there is a group of the same
resources available, the calendaring application should assign a free resource to the request of the organiser.
Different Roles in CalendaringThe organiser, also sometimes called host, is the one
person that invites other people to a meeting. He is allowed to change
details of the meeting proposal. The invited persons that join a
meeting are called attendees or
participants. If someone has
been invited to a meeting but is not able to attend the meeting, he can
ask one of his colleagues or employees to replace himself at the
conference. The one who delegates the
participation is called the delegator, and the person that is sent to the meeting
is the delegate. Another equal name
of this role is delegatee. Another role is the one an assistant
takes when he is acting on behalf of his superior. The assistant is then
called the designate. He is allowed
to manage the calendar of his chief, e.g.
to organise a meeting that is held by the chief, but he is too busy to deal with the details of organising the
meeting.
Recurring EventsThere are different
levels of granularity how to define recurring events. Nearly all scheduling products allow to
define daily, weekly, monthly, and yearly events. Some of them also allow to give a day of
the week on which the event should occur.
Another feature is to give the interval of the event, so it is possible to arrange an
appointment that occurs every second Monday. It's even better to be able
to combine these attributes, e.g. to say an event recurs every first Monday in a month.
Repeating events often have an end date at
which they stop repeating. The calendaring software should allow the
modification of the whole series of events as
well as changes to a single event on a special
day.
Realtime Calendaring versus Message Based CalendaringThere are
always two different ways to realise calendaring: A calendaring solution
can depend on electronic mail services, and
use them to exchange invitations and responses. In contrast to that,
realtime calendaring uses an extra calendar
server that holds all information of the calendars of the users, and invitations can be
inserted into the calendar immediately. If
the user is connected to the calendar server, he sees the invitation at the same time
it has entered the server. The advantage
of this solution is that if the mail server
crashes, calendaring still can be used, because it is a different server program. Furthermore it supports realtime
collaboration: You can be sure that the free/busy times are accurate and that there
are no unread invitations that wait for the user to be added to his calendar. Unread invitations are already
integrated into the calendar and given the
state e.g. "no response". Another advantage is that the calendar and the email client don't
need to cooperate too close, so you are able to use programs from
different producers.
The Meeting
Scheduling ProblemSen and Durfee [SEN]
define the following attributes of a meeting:
- a set of participants
- the owner, also called host or organiser
- duration
- priority
- starting time preferred by the organiser; if it is not completely defined,
participants are allowed to propose
e.g. the time of the given day, if no special time but only the date is
given
- the latest possible starting time, also called deadline
- latest possible time of scheduling the meeting: It has to be decided
to this point in time, whether or not the meeting will take place, and
when exactly it is scheduled.
- The actual meeting start and end time, which is chosen in the end of
the decision process
A personal calendar consists of the following attributes:
- the starting date of the calendar
- the end date of the calendar
- set of time slots, which can cover e.g. an hour or 30 minutes, and
the information about what appointment or meeting is planned for this
time slot, or if it's free.
There are
several possible methods that help in organising a meeting: The organiser can make a proposal which is also
called a request. Potential attendees can send a reply which can be positive or negative, or they can request changes of the meeting, e.g. another
date or time. The organiser can
add new details to a proposed meeting, but
also cancel attendees or a whole meeting. It is also a
great help for the organiser when he can request free busy information from the people he wants to attend
the meeting. When people publish their
free busy details, he
can see what times could be suitable for all or most of them. More
details about this topic can be found in [RFC2446_ITIP]
and in chapter 3.3.
Agents in Calendar ApplicationsBorghoff and
Schlichter describe the use of agents in groupware applications, and they also write
about agents helping in scheduling and
organising meetings. At first there should be a short summary about agents: Agents are
autonomous, they are able to act without intervention of the user [BORGHOFF,
p. 419]. They know about their own internal state and about their
available actions. An agent knows about the
"problem domain" and is able to understand changes in its environment and
how to "react appropiately". That means that the agent has its own behaviour. A special language
called Agent Communication Language (ACL)
was developed at the Advanced Research Projects Agency (ARPA). This language consists of a vocabulary, a
knowledge interchange format (KIF) and a
knowledge query and manipulation language (KQML) [BORGHOFF,
p. 416]. Agents can be used for
distributed problem solving (DPS) [BORGHOFF,
p. 425]. That means that several agents
have "to cooperate in order to solve complex problems" [BORGHOFF,
p. 425]. They have to share "their knowledge, goals, skills and
execution plans". The complex problem is subdivided into several
subproblems, that can be solved by one agent
in coordination with the other agents. The
Contract Net Protocol
[BORGHOFF,
p. 438] helps to find out which agents can
solve what subproblem, and it allows agents to
negotiate how to exchange information in order to collaborate. The primary
message types are: Task announcement, task bid and task assignment. There
are also request, acknowledgement,
termination and report messages. There is a manager that announces the
problem, and agents can bid their available
resources, and the manager decides what is the best bid. Based on that
decision, he assigns the appropriate tasks to the bidders [BORGHOFF,
p. 439]. Now follows the description about how agents are able to solve meeting scheduling
problems: It is assumed that every personal calendar is managed by an agent. The agent of
the person that wants to schedule a meeting takes on the role of the
manager in the contract net
protocol, and sends his announcement with the attributes of the proposed
meeting to the other agents, which are
responsible for the several personal calendars of the participants. These agents match the proposed times with their set of
time slots, and either reply with yes or no or
"suggest a new time interval" [BORGHOFF,
p. 473]. The manager collects all the bids and decides whether a
solution was already found, or if he has to reannounce the meeting with
different time intervals, that better fit to the received bids from the
other agents. If the final interval time is
sent around, the agent of a personal calendar has to recheck if the time slot still
is free, and then he reserves it for the
meeting.
2.4.4 Shared WorkspacesThis category of groupware application is also called "shared
information spaces". Appelt writes in [APPELT,
p. 1] that a shared workspace is a "repository of shared information".
He states that a system with support for shared workspaces allows the
users to upload and download files. It also enables a user to give other
users different levels of access to his files. There should also be a
version management system that helps to cope with different versions of
the same document, which is especially a problem when several people are
working on the same file. Borghoff and Schlichter say there is
"separate responsibility" [BORGHOFF,
p. 123], i.e. it is clear which user is responsible for what parts of
a document. They also compare "mutual exclusive access" against
"synchronous access" [BORGHOFF,
p. 123]. With mutual exclusive access, only one person at the time has
write access to a document. That is realised e.g. by locks. Synchronous
access allows several people to work at the same time together on one
document. Here again the WYSIWIS principle
applies. Another type of information sharing is in between those two
types of access, it is working with "alternate versions" [BORGHOFF,
p. 123]. That means that several people are working on local copies of
the same document, and these different versions of the document have to be
synchronised, which often requires manual adjustment to resolve conflicts.
2.4.5 Group EditorsThe What You See Is What I See (WYSIWIS) principle was already mentioned several
times, and group editors are those applications that realise this
principle. Group editors enable several people to work on the same
document at the same time. Each one of them sees the same version of the
document. If someone changes the document, notification messages are sent
to the other users and their screen is updated [BORGHOFF,
p. 386]. The group editor helps users to be aware of the other
persons that are working on the same document, and shows which parts of it
are edited by whom. It has to avoid that people are working on the same
segment of the document, because then it would not be clear which changes
should be applied to the document. So only one user has write access to a
segment of the document, but still the other users are allowed to read
this segment [BORGHOFF,
p. 121]. According to Borghoff and Schlichter, the architecture of
a group editor consists of the data layer and the operation layer [BORGHOFF,
pp. 397-399]. The data layer holds the content information with the
content of the document including the formatting information. The
structural information, which holds information about other users'
activities, also belongs to the data layer. The data layer is completed
with history information about previous document versions and user
information, e.g. the email address. The
operation layer provides the functionality for editing the content and for
changing the structure of the document. This layer is responsible for the
coordination of updates, in order to have everywhere the same information,
and for the coordination of locks that can be set by the user or enforced
by the editor application. It furthermore notifies the user about the
activities of other users working on that document [BORGHOFF,
p. 399].
2.4.6 Workflow
ManagementWhen people
are working together to achieve a common goal, they have different
activities that need to be coordinated. Some activities can only be
carried out asynchronously, e.g. when two activities on the same object
cannot take place at the same time, because either one depends on the
others' completion, or at least one of them needs unrestricted control
over the object. There are some different approaches described by
Borghoff and Schlichter [BORGHOFF,
p. 124]: The "form-oriented systems"
concentrate on the document that is forwarded from one member of the group
to another, and each of them performs his task on the document. For
example two people have both to add a chapter,
the third person has to review it, and the boss gives his signature. A
"procedure-oriented
system" divides the process of reaching the goal in a lot of different
procedures, which are subdivided into several steps. Each member of the
group is assigned to one or more procedures. Each step in a procedure
receives an information unit, processes it and returns the modified
version, so that it can be the input for the next procedure. "Conversation-oriented
systems" try to model the normal interactions between human beings. There
are electronic message equivalents for some speech acts, e.g. request, promise, reject, accept, cancel, etc. [BORGHOFF,
p. 340]. The "communication
structure-oriented systems" know about the specific roles that are
assigned to the different members of the team, and are able to use this
knowledge to bring some order in the processing of work.
2.5 Disciplines involved in the Development of CSCW ApplicationsBorghoff and Schlichter
write that CSCW is "an interdisciplinary
application domain" [BORGHOFF,
p. 93]. The knowledge and achievements of several disciplines are
required to develop and introduce a groupware system that is accepted by all its
users in a company. Computer science provides the necessary
hardware and software capabilities. Software designers need to
develop applications and user interfaces that can be used in a simple and
quick way, so that the users are willing to accept and use the groupware solution. People must see the
benefit for themselves and the company from changing traditional ways of
work to using CSCW. Telecommunication
technology connects different workstations both inside an office and
also over long distances, even around the globe. Information
Management is needed to cope with the amount of data that is processed
by the people involved and to provide access to the data to the right
people at the right time. Sociology was already mentioned in the
chapter about calendaring, and it is an important discipline: Everyday
work is changed a lot by CSCW to make work more
efficient. Sociologists should ensure that people are not overrun by the
increased teamwork and the awareness of others about everything they are
doing, but to encourage them to enrich the team with their individual
ideas and visions and to find a way how the goals of the group can be
reached together without losing members of the team. Organisational
theory helps the management to be able to change the structure of the
company in a way that CSCW really can help to
improve the effectiveness of the whole company. Sometimes teams will be
composed in a different way than without CSCW.
For example, it is more difficult to organise teams that change with every
project. Another problem for organising a company is that now people can
be involved in different teams at the same time, but the managers of the
teams are based at different sites of the company.
2.6 Distributed Systems and ApplicationsCSCW is based on distributed systems, because
members of a group who use several personal computers want to share data
and applications in order to work together. This chapter describes
distributed systems and the underlying technologies and approaches.
Schlichter defines "a distributed system as one in which
hardware and software components located at networked computers
communicate and coordinate their actions mainly by passing messages" [SCHLICHTER,
p. 9]. This means that the members of a group use applications that
are able to share information and can help each other to process the requests of the users.
2.6.1 Software ArchitectureThe software layers of distributed
systems are shown in the following table [SCHLICHTER,
p. 27]:
applications, services |
middleware |
operating system |
computer and network
devices | A distributed application is
an application that consists of different components. Each of these
components has its own state and operations to change this state. Each of
the components can run on a different machine, and they use the network
for communication [SCHLICHTER,
p. 14]. A definition for middleware is also given by Schlichter: "Middleware is defined as a layer of software
whose purpose is to mask heterogeneity and to provide a convenient
programming model to application programmers." [SCHLICHTER,
p. 27] So it is a good help for the design and development of
distributed applications because it already provides services for communication between the
applications, access to distributed data and the processing of distributed
transactions [SCHLICHTER,
p. 27]. Middleware also provides
transparency, i.e. it masks all
the difficult problems that come up with distributed systems. For example,
location transparency deals with the
physical storage location of objects in the distributed system. Location
transparency means that the middleware gives a logical name for the
object to the application programmer. He can easily use that name without
thinking where the object is located at the moment. The current location
of the object is resolved by the middleware, whenever the application accesses
the object through the middleware [SCHLICHTER,
p. 28]. There are a lot of other types of transparency, which cannot all be covered
here.
2.6.2 Communication ArchitecturesOne very often used architecture
to realise communication between CSCW
applications is the client/server model. Some definitions should be given
although the terms have already been used above. They have all been taken
from [SCHLICHTER,
p. 45].
- A client is a process that
"initiates requests for service operations".
- "A service is a piece of
software that provides a well-defined set of services."
- "A server is a subsystem that
provides a particular service to a set of a
priori unknown clients."
The clients are not known to the server before they request a service.
There is a difference between a client and
a client machine, and even more between a server and a server
machine: Clients normally run on client machines. Services can run on one or more server machines, i.e. a service itself can be distributed. Several servers can run on one server machine. Client and server
are often operated in handshaking
operation: The client requests a service from the server, then it waits and depending on the
implementation that can block the whole client application. When the server sends the reply with the result of the request back to the client, the client
resumes.
The multitier
architecture introduces a new kind of application: This application is
both a server and a client and is the interface between another client and another server. So there are requests sent from the client to the application in the middle, which
acts as a server for this client, but itself requests services
from the other server. The example of the
web applications can help to illustrate this architecture:

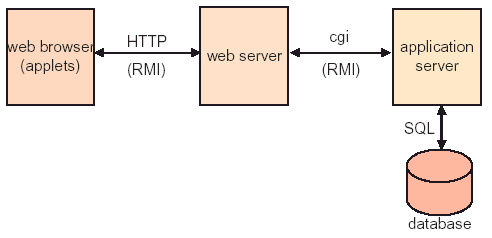

fig. 2.1.:
Example of a multitier architecture
This figure was taken from
[SCHLICHTER,
p. 47]. The web browser is the client
and relies on the web server. Additionally,
applets can run inside the web browser that have their own application
code, but also require services from the server. The web browser can either communicate
with the web server using the Hyper Text
Transfer Protocol (HTTP) or the Java
Remote Method Invocation (RMI)
functionality, which will be explained below. The web server itself is not able to handle the requests of the clients on its own. So the web server requests services from an application server. This is a server that is able to e.g. access a database
and process the required services, and then
sends the result to the web server, which now
again acts like a server and replies to the
web browser. That example shows how the web cannot only be used for
information retrieval for which it was initially designed, but also to
provide all kinds of services and therefore
to support groupware applications as well.
More information about web based groupware
applications can be found in chapter 4. There are a lot of application
servers on the market, and it is not in the
scope of this text to investigate application servers or their architectures. For further
information about this topic, the reader is referred to Schlichter's
description of the JavaTM 2 Platform, Enterprise Edition (J2EE) which basically is "a distributed application
server environment" [SCHLICHTER,
p. 23].
There is furthermore the peer-to-peer model that consists of several processes
or applications which can all communicate directly with each other. There
is no process that has special functionality to coordinate the other
processes. That means that they all have to contain their normal
application code and additionally some code that provides the coordination
[SCHLICHTER,
p. 42]. The advantage of this model is that no special server needs to be installed and configured. The
disadvantages are bad scalability and difficult maintenance: Bad
scalability means that with increasing numbers of participating
applications, the traffic of exchanged messages will also increase
rapidly, and that will cause poor performance. The maintenance of a huge
number of applications is certainly much more expensive than the
maintenance of only some servers. Also backup
is easier when there is a more or less centralised solution.
2.6.3 Remote Procedure CallsThis chapter shows one aspect of middleware. There are two ways how
distributed applications can communicate with each other: Either
message-based or using Remote Procedure Call (RPC). Java's object-oriented version of RPCs is called Remote Method Invocation (RMI). The following table gives a good overview
about which type of communication between distributed applications fits in
which layer of the OSI model [SCHLICHTER,
p. 62]:
client-server model |
layer 7 application layer |
RPC |
layer 6 presentation layer |
message exchange, e.g. request-answer protocol |
layer 5 session layer |
transport protocols e.g. TCP/UDP |
layer 4 transport layer | The request-answer protocol is described in [SCHLICHTER,
p. 62]. It provides bidirectional communication and uses timeouts and
acknowledgements to detect and recover from message loss.
The
advantage of RPCs is that it provides already all
failure detection and correction, and normally works synchronously. So a
programmer of a distributed application client just can use an RPC call to execute a remote procedure that is
provided by a server, and the returned result
can be used for further operations of the client.
BrokeringThere is the problem that distributed applications need
to know which component in the distributed system can offer which service. An RPC can
only be started if the server is known that
would be suitable. This problem is solved by the process of component
binding [SCHLICHTER,
p. 72]. There is static binding which means that the server address is hard-coded into the client application during its generation.
Dynamic binding takes place immediately before an RPC is performed: The client needs to know a broker that can tell the
current address of the server or acts as a
mediator between client and server and just forwards the messages. The
requirement is that the broker always needs to be informed if the server changes its address or service availability. The Common Object
Request Broker Architecture (CORBA) is the
object-oriented approach for dynamic component binding and provides the
brokerage of objects instead of procedures and services [SCHLICHTER,
p. 165 ff.].
XML-RPC and SOAPThe goal is to use a standard language to
form the RPC requests and replies. The currently most
favoured language is the Extensible Markup Language (XML), because it provides well structured documents
that are readable by all kinds of programs, only to mention some
advantages. XML-RPC
is the easiest specification that provides RPC
calls that are represented in XML documents and
are transported via HTTP. For more information
about XML-RPC see [XML-RPC]. The
Simple Object Access Protocol (SOAP) is
an extension of XML-RPC, and is a standard of the World Wide Web
Consortium (W3C). It is described in [SOAP].
2.7 Enterprise Application IntegrationThe term Enterprise
Application Integration (EAI) stands for a
new idea how companies can use computers. This topic does not directly
affect the cooperative work of single users, but allows cooperation of
different applications inside an enterprise. Hansen writes the goal of EAI is about "getting heterogeneous applications to
work together in support of changing business processes" [HANSEN].
A characterisation of EAI comes from Ren [REN]:
He states EAI has the "ability to integrate
applications within the enterprise as well as across enterprises", and it
provides "infrastructure adaptability", "support for multiple integration
topologies" and the "power to handle complexity". Buyens gives this
definition of EAI: "EAI
is the ongoing process of putting an infrastructure in place, so that a
logical environment is created that allows business people to easily
deploy new or changing business processes that rely on IT." [BUYENS]
It always helps to understand a new technology or idea by looking back
in history to realise what the problems are and what made this new idea
necessary. Inmon [INMON]
has written a text to investigate the history of integration. He mainly
focuses on data integration, which is only a part of EAI, but it helps to understand the overall
background of EAI. In the early beginning of
computer usage in companies, the first and only requirement was to
"replicate manual procedures on the computer". So there was one
application for each procedure. When better technologies came up, e.g.
database technology, the existing applications where just extended, but
they and their data remained seperated from each other. The problem is
that there are actually data and procedures available in the companies'
applications, but the applications cannot access each other's data or use
the other's functionality. An example could be a mainframe machine
running programs written in Cobol, and now it is required to allow web
access to the data managed by the established applications. That means you
have to deal with different platforms and different standards. Today,
companies need to react very fast and implement solutions immediately.
Competition has increased much more, because the Internet allows everyone
to provide his solution to the whole world at once. The goal is to
minimise the time of the development of a product until it is ready for
the market. So it really helps the developers when they don't need to
develop a whole application, but can combine the existing solutions and
just add the required functionality. So there
are a lot of products and ideas on the market that try to bring different
applications together to enable them to exchange information. They can be
categorisied in different ways. One categorisation is described in the
following chapter.
2.7.1 Categories of IntegrationThe Hurwitz Group has defined the
following types of integration. They are described by Gold-Bernstein [GOLD-BERNSTEIN].
The level of abstraction increases in the following list of integration
categories. "Platform integration" is at the lowest level of abstraction,
then there is "data integration", "component integration", "application
integration" and "process integration". "Business to business (B2B) integration" is at the highest level of
abstraction. The goal of "platform integration" is to bring together
different architectures of "hardware, operating systems and application
platforms" [GOLD-BERNSTEIN].
Communication can be established with messaging, Object Request
Brokers (ORB) or Remote Procedure
Calls (RPC). "Data integration" provides
gateways between different data stores, and also offers transformation
from one data format to another. "Component integration" deals with
cooperation of applications concerning transactions and the use of the
business logic represented in the procedures of only one component.
"Application integration" means that different applications can work
with each other by using application adapters (also called connectors).
"Process Integration" stands for several applications that are
involved in the same process. This is already a high level of abstraction,
because the business manager can model workflows on this level. The
workflows define how the applications have to work together and how e.g.
an incoming order goes through several processes of different applications
so that finally the product can be delivered. "B2B integration" is integration not only inside the
enterprise but between several companies that either work together as
partners, suppliers or customers. This type of
integration is also needed in mergers or acquisitions when two companies
have to find the best way how to share existing data and procedures.
There are also other categorisations of integration, but this is
not the place for further investigation into this topic.
2.7.2 EAI ArchitecturesKang [KANG]
gives a good overview over different methods of integration and their
physical integration architectures. He compares "point-to-point" and "middleware" integration, and concludes, that
point-to-point integration is not possible when there are too many nodes
that need all to be connected with each other. Using middleware-based integration, all nodes are
connected to one mediator in the middle and can communicate via this middleware. He also describes the
"message bus architecture", the "centralised architecture" and the "J2EE connector architecture" (JavaTM 2 Platform,
Enterprise Edition (J2EE)). Using a
message bus architecture, all messages are multicasted, i.e. applications
send messages to all other applications at the same time, and the
addressed application reacts to the message. This causes a lot of traffic,
and it is not secure because not only the addressed application can read
the message. The centralised architecture consists of one server that provides message filtering and
message delivery to the connected applications, which need each an adaptor
to being able to communicate with the server.
With the J2EE connector architecture, the server provides adapters for all connected
applications, i.e. the adapters are not needed anymore in each
application. There are some good diagrams about these different
architectures in [KANG].
2.8 Groupware, Pervasive Computing and
SynchronisationThe goal of Pervasive Computing is to enable
the user to access all his data anywhere and anytime
from any device. The problem is that still not all people have
devices that are always connected to the Internet. One reason for that is
the sensitive data which is usually shared in a groupware environment. The use of a
collaboration system is normally limited to the intranet for security
constraints. Another reason for not every PDA
having always access to the Internet is that it is too expensive at the
moment. Another challenge to groupware
applications is that people want to have access to their groupware data from any device: They want to
log in on every computer on the network and use their data, and then they
also need to work with their PDA. When they are
travelling, they use additionally a laptop, which also should provide at
least the personal calendaring information. When they are not connected to
the network, they still want to insert personal appointments, and wish to
later copy them to the corporate groupware
system. So there is the need for synchronisation between PDAs, the main server,
and client programs on laptops.
3 STANDARDS FOR EMAIL, CALENDARING AND
SYNCHRONISATIONThis chapter describes the standards that allow Email, shared Calendaring and synchronisation.
The Calendaring chapter was divided into two chapters, because there are
on the one hand the Internet calendaring standards and on the other hand a
mix of other standards used for performing scheduling. Some
specifications are mentioned, but not fully paraphrased here. It is
recommended to read the original specifications for further information.
The Internet Engineering Task Force (IETF) develops and announces the standards for the
Internet. Each standard is defined in a Request for Comments (RFC).
3.1 The people involvedThe goal of Computer Supported Cooperative
Work is to support people in accomplishing their daily tasks. The question
is how these persons can be represented in the system, and how they are
identified by the system and by other users inside and outside the system.
Identification by the system is needed for the login process as well
as for assigning the associated data to the correct user. An example for
such associated data would be a mailbox that belongs to a specific
person. Identification by other users can be compared to the
conventional visiting card. Other users like to have some public
information about a person to being able to stay in contact and for
further cooperation.
3.1.1 Directory ServicesIn order to
deal properly with users, a system needs a directory where the users are
registered. This directory can be understood like a telephone directory
that enables you to communicate with any of the huge number of people in
your town. In contrast to such a global directory, an address book only contains the addresses
of the people you met already or had some kind of contact with them.
Every server that manages several users
needs any kind of directory. A directory needs to implement an
information model and to provide a protocol for querying and manipulating
the information. A directory service is used
by directory enabled applications that are able to use the information
stored inside the directory.
X.500X.500 was developed by the Comite Consultatif
International Telephonique et Telegraphique (CCITT), which is now known as the International
Telecommunication Union - Telecommunication Standardisation Bureau (ITU-T), and the International Standards
Organisation (ISO). The first version of the
standard was published in 1988, a second version was finished in
1992.
In his book "Understanding X.500 - The Directory" [CHADWICK]
David W. Chadwick describes the history and the different parts and
aspects of X.500. His book is the source for the following paragraph
describing the X.500 standard. There are the following parts of a X.500
directory model that should be mentioned: The Directory Information
Base (DIB) contains all the information
stored in the directory. It consists of a set of entries which are
instances of one or several object classes. Each object class is formed by
several attributes with an attribute type and one or more attribute
values. All the entries can be represented as the nodes of a Directory
Information Tree (DIT). That means the
entries stand in a hierarchical relation to each other.
fig. 3.1.: The
X.500 information storage
The X.500 Directory model does not
need to be a centralised system: It supports replication and distribution
of information. The Directory User Agent (DUA) is the component of the system that is run by
the user. The user can insert his requests
and retrieve the results. The system itself is made up by several
Directory System Agents (DSA) which are
connected via the Directory System Protocol (DSP). They provide the DSA Abstract Service
(DAS) to each other. The DUA uses a protocol called Directory Access
Protocol (DAP) to interact with the system.
This protocol deals with the system as a black box. If a DSA cannot answer a request, a process called chaining is started: The DSA forwards the request to its connected DSAs. It waits for the results and finally returns a
positive or negative answer.
fig. 3.2.:
The X.500 directory structure
DAP uses
the Open Systems Interconnect (OSI)
network protocol stack, i.e. DAP provides a poor
performance because every request and reply goes through all 7 layers of the OSI model. Because of that dependency on the whole
OSI stack and the large functionality provided,
the X.500 model can be called heavy weight.
Light Weight Directory Access Protocols (LDAP)The first RFCs
for LDAP were published in 1993. A good
description of LDAP and other directory services can be found in the diploma thesis of
Norbert Klasen [KLASEN,
p. 12]. The following information is taken from his text. In
contrast to the heavy weight X.500 model of a directory, LDAP directly uses the TCP/IP stack. That means the
layers above the transport layer are bypassed, which are the session and
presentation layer. Some special functionality like chaining is also missing, but because of that
the LDAP system is lighter. Instead of chaining, the server without useful information redirects the
questioning user to the other known servers. The goal of LDAP is to provide as much as possible the same
functionality like X.500, but to be lighter. There are gateways to connect
LDAP to X.500.
3.1.2 The user's representation by a vCardThe vCard, also called
the Electronic Business Card, was invented by an initiative called Versit.
Versit was founded by Apple, AT&T, IBM and Siemens. Since the end of
1996, the Internet Mail Consortium now has the control over vCard. The
vCard specification [VCARD]
describes the details of this standard. vCard is also described in the
RFC 2425 [RFC2425_MIMEDIRECTORY]
and RFC 2426 [RFC2426_VCARD].
The goal is to provide the users with several ways to give their details
to other users. It should be possible to send the information with email (placing the vCard in a MIME attachment), but also to send it via an
infrared connection from one PDA to another. The
vCard cannot only hold information about a person but also about a
resource. The vCard is related to the Directory Service by representing the details of an entry
of the directory. The attempt was made to map the attributes of a vCard to
the attributes described in the X.520/X.521 standards [VCARD,
p. 2]. There are many address
book applications that support the import and export of contact details
via the vCard standard. The vCard is a text file that uses the syntax
specified by the MIME specification which is
described in RFC 1521 [RFC1521_MIME].
See more about encoding below. This is an example of a vCard, created
by the phpGroupWare address book: BEGIN:VCARD VERSION:2.1 X-PHPGROUPWARE-FILE-AS:phpGroupWare.org N:Testsurname;Testfirstname;D.;Dr. FN:Dr. Testfirstname D. Testsurname BDAY:1970-01-01 URL:http://www.om.org ORG:Operation Mobilisation A.ADR;WORK:;;London Road 123;Carlisle;Cumbria;GB LABEL;WORK;QUOTED-PRINTABLE:London Road 123=0D=0ACarlisle=0D=0ACumbria=0D=0AGB END:VCARD
3.2 EmailThis chapter covers several
standards concerning email delivery and
reception and the format of a mail. There are two standards which
describe the email transporting process and
the addressing format. 2 other standards provide access to received emails for users that are not always connected to
the network. Finally there is the email
message and its standardised format itself.
3.2.1 Mail Transmission ProtocolsSome of the following
information was extracted from [EDMONDS].
Generally, there are three types of components: The Mail User
Agent (MUA), the Message Store (MS) and the Message Transfer Agent (MTA). The MUA is that
software that helps the user to send and to receive electronic mail. The
Message Store keeps messages that have been delivered earlier already.
Each MUA and each Message Store need to be
connected to an MTA. The MTA is the program that is responsible for routing
the messages to the correct destination. More than one MTA can be involved in an email delivery, when the message is routed
through several networks. That means that the MTAs always need to be online on the network.
X.400The X.400 standards were published in cooperation by ISO and CCITT, now called
ITU-T. That are several standards, all with a
name in the format X.4xx. In 1984, the X.400 standards were described in a
"Red Book" series. These standards can make use of the directory services provided by an X.500 implementation,
which was mentioned earlier. There are several protocols that define
the communication in an X.400 Message Handling System. These protocols are
just given simple names: P1 deals with message transfer between MTAs, P3 describes connections of both Message Store
or MUA with the MTA, and
P7 defines the rules of conversation between the Message Store and the MUA. X.400 is a protocol that is based on the OSI model and belongs to layer 7, the application
layer. An X.400 address consists of values for the country code (C),
administration domain name (ADMD), private domain name (PRDM), given name
(G), and surname (S). An example address could look like this: /C=UK/ADMD=OM/PRMD=ICT+Carlisle/G=Testfirstname/S=Testsurname Some
information in this paragraph originates from [DIFFUSE].
SMTPThe Simple Mail Transfer
Protocol (SMTP) is an alternative to X.400.
In contrast to the official X.400 standard, SMTP
is only a "de facto" standard. But there is the RFC 2821 [RFC2821_SMTP],
that is a recommendation how to implement SMTP
compliant software. SMTP is an Internet
protocol, i.e. it is directly based on TCP/IP. An SMTP address consists of a user name or alias,
often used in a format like "firstname.surname". Then there is the @
("at") character, and it is followed by the computer name that runs the
mail server of the user. This computer name
consists of the domain name and the toplevel domain name, which is
assigned either concerning the type of organisation which the user is
working with, or the country where the user lives. An example address
could look like this: Testfirstname.Testsurname@c.ict.om.org c and ict are subdomains of the domain om.org. Because OM is a
worldwide operating organisation, every department has its own subdomain,
in this case the department is the International Coordination Team, and
because it is based at two locations, the c stands for Carlisle. The
basic structure of SMTP defines an SMTP client (that is
the MUA) and an SMTP server (that is the MTA). They can communicate with each other via SMTP commands and replies. The client also can send mail data to the server.
Comparison SMTP vs X.400The X.400
addressing format is quite complicated, but it can deal with all kinds of
letters, and is therefore preferred by French speaking countries, e.g.
Canada and France. SMTP addresses are easy to
remember, but do not support special characters. X.400 supports
attachments, but loses the file names. SMTP
needs the MIME (see more about email encoding below) extensions for attachments.
SMTP is the most often used standard for
electronic mail communication.
3.2.2 Remote Mailbox AccessNormally, the user is not always
connected to the network, and is therefore not able to receive all of the
emails that are addressed to him. The solution
is that the mailbox of the user resides on the server, which usually also hosts the MTA. Now the user needs a way to be able to read the
mails that are saved on the server. Terry
Gray [POP3IMAP]
describes the three types of operation how the user can access his email:
- In offline mode, the user accesses the Mail Transfer Agent from time to time and downloads the new
received messages to his personal workstation. The downloaded emails are removed from the server.
- In online mode, the user reads the messages while he is online, the
messages stay on the server, and he can
manipulate the mails remotely. He has no copy of them on his machine.
- In disconnected mode, the user downloads the mails from the MTA, can manipulate them locally, and when he
connects again to the MTA, the local and the
remote mailbox are synchronised.
Most of the following
information is taken from the article written by Terry Gray [GRAY].
X.400 has its own protocol P7 to support the different operation modes,
but if only Internet orientated protocols should be used, the following
protocols apply. The next paragraphs describe the two protocols POP3
and IMAP4 which both provide access to emails
only. They assume the user uses SMTP for
sending mails. Both use the Internet Protocol for transportation. POP3 is
defined in RFC-1725 [RFC1725_POP3]
and IMAP4 is defined in RFC-1730 [RFC1730_IMAP4].
POPThe Post Office Protocol (POP) is originally a protocol that just supports
offline operation. There is the attempt to provide online operation, by
allowing the user to leave the messages on the server. But this is not a real online mode. One
missing feature is the support of state information about an email, e.g. answered, read, etc. This is not
supported by POP. Another problem is that there
is no way to handle several remote folders, and you can't store a message
on the server.
IMAPThe Internet Message Access
Protocol (IMAP) fully supports the offline
operation model, but is is also designed for online / disconnected
operation. It is capable to resynchronise an offline clients to the server. It supports remote message folders that
can be modified like local folders. Some functions of IMAP: "IMAP4 includes operations for creating,
deleting, and renaming mailboxes; checking for new messages; permanently
removing messages; setting and clearing flags; RFC 822 and MIME parsing;
searching; and selective fetching of message attributes, texts, and
portions thereof." [RFC1730_IMAP4]
Conclusion POP vs IMAPThe best usage of POP is the offline mode, because it was created for
that type of operation. If more functionality is required, IMAP is the best solution, because it supports all
3 operation modes. But it is more complicated, because it provides more
functionality and possibilities to the user. So it depends on the
requirements of the users what protocol suites them best.
3.2.3 Email FormatsAgain, X.400 has
its own rules and standards to encode mail messages and deal with
attachments. But there is no place here to go into details about it,
because the Internet standards are more commonly used. The Internet
Message Format RFC [RFC2822_IMF]
defines the envelope and the contents of an email, also called the header fields and the
message body. SMTP handles emails in this format.
The Header Fields of an Internet MessageThe following example [RFC2822_IMF,
p. 44] shows some of the possible header fields in an email that is built according to the Internet Message Format. From: Mary Smith <mary@example.net> To: John Doe <jdoe@machine.example> Reply-To: "Mary Smith: Personal Account" <smith@home.example> Subject: Re: Saying Hello Date: Fri, 21 Nov 1997 10:01:10 -0600 Message-ID: <3456@example.net> In-Reply-To: <1234@local.machine.example> References: <1234@local.machine.example> This is a reply to your hello. A
description and categorisation of the header fields can be found in [RFC2822_IMF,
pp. 20-28]: There are fields in the header that show who sent the
message ("originator fields") and who is the receiver ("destination
address fields"). The "identification fields" help to identify the
current message and its related messages, e.g. the identification string
of that message that this message is the reply
to. The "informational fields" provide information only important to
the user, e.g. the "subject" field. There is the possibility to resend
a received mail to another person and make it look like it was sent by the
original sender. This is realised with the "resent fields". These fields
ensure that the receiver still knows not only the original sender but also
who was the resender. "Trace fields" are filled by SMTP, and they provide information about which way
the message took across different servers to
reach its destination. There is a way to implement additional fields to
build new standards based on the Internet Mail Format. These fields are
called "optional fields".
The Message Body of an Internet MailAccording to the Internet
Mail Format, the content of an email is just
"made up of characters in the US-ASCII range of 1 through 127" [RFC2822_IMF,
p. 6]. The length of the lines is limited to 998 characters. This is
enough for text content, when no special characters are used. But
sometimes there is the need to add attachments,
e.g. multimedia files, images, or other files in binary format, that means
files that use all 255 possible values of a character. Also some languages
use special characters, that are beyond the 7-bit representation. There
are some ways for translating (or also called encoding) these files into
text files, and then to decode them back. Some names of encoding types are
"Base-64", "Quoted-Printable", "uu-encoding", and
"BinHex". Base-64 and Quoted-Printable will be described in
more detail in the next chapter.
MIMEThe Multipurpose Internet Mail
Extensions (MIME) are defined in RFC 1521 [RFC1521_MIME].
These extensions support multipart
messages, i.e. a MIME encoded email can contain several files in all kind of
formats. That enables MIME to be "a standard for
the transfer of multimedia information via the Internet" [BORGHOFF,
p. 117]. The following table shows the recursive definition of an
email message in MIME format:
message |
header (includes SMTP
header information) |
body is an entity |
header of the entity (holds the content-type
value) |
body of the entity is one of the types on the
left |
text |
multipart: several body parts of
a given subtype, each of them is an entity |
application |
message |
image |
audio |
video | The iteration occurs on entity and
message: The body of an entity can hold a message, and the multipart content can consist again of
entities. The "Content-Type" value of a header describes the content
of the associated body, and the "Content-Transfer-Encoding" value gives
the type of encoding of the body. MIME uses "quoted-printable" and "base64
encoding", or unmodified data in "7 bit", "8 bit" or "binary" format. "7
bit" stands for ASCII characters with short lines, "8 bit" data has short
lines to be sent via SMTP, and binary data
cannot be used with SMTP [RFC1521_MIME,
pp. 14-15]. The idea of "Quoted-Printable" encoding is described
in [RFC1521_MIME,
p. 18]. It is mostly used for text that includes some special
characters beyond the 7 bit range of value. The goal is to keep the text
more or less readable by humans. Only special characters are modified
according to a set of rules. That costs some bytes, because these modified
characters must be different from the normal characters. "Base-64" Content-Transfer-Encoding is not
concerned about humans, and therefore encoded files "are consistently only
about 33 percent larger than the unencoded data" [RFC1521_MIME,
p. 21]. Basically, this encoding converts a file to a set of 6-bit
characters, which means that there are 64 different values. Three bytes
(8-bit) are converted to four 6-bit characters. A "text" does not need
to be an ASCII text, but can also be encoded. The charset parameter in the
Content-Type field tells the character set of the text. The default is the
US-ASCII character set, but also character sets for other languages with
their special characters can be set here. The binary data of some
application ("application"), another email
("message"), or an "image", an "audio" or a "video" file can also be the
content of an entity. A message with several body parts ("multipart") is associated with a special
subtype, which is one of "mixed", "alternative", "digest" or "parallel"
[RFC1521_MIME,
pp. 34-37]. "Mixed" means that there are entities with different
types. If those entities do not have a header, they are just text files in
US-ASCII encoding. The subtype "alternative" allows the sender to
include a document in several file formats. A "digest" is a set of email messages. "Parallel" is the same as
"Mixed", but there is no significant order of the parts. The body parts
are meant to be displayed at the same time. The specification of the
"Security Multiparts for MIME" [RFC1847_SECURE_MP_MIME]
defines two additional types for bodyparts of a multipart entity: "Multipart/Signed" and "Multipart/Encrypted". That allows to assure
who sent a message and who is able to read it.
3.3 Internet CalendaringThe "Guide to Internet Calendaring" [RFC3283_ICALGUIDE]
explains the relations between the different IETF RFCs that together
define the standards for Internet calendaring. There are some terms
used by the Internet calendaring standards. They are described in [RFC3283_ICALGUIDE,
p. 3], and the following information and quotations are taken from
there. Calendars are the "basic storage containers for
calendaring information" of a person or resource. Calendars are made up of several
components, which have properties that carry the information
about the component. A Calendar User (CU) is an "entity (often a human) that accesses calendar information". A Calendar
Store (CS) is a data store which can hold
several calendars and other calendaring
information. A Calendar Service is a program that allows
several calendar users to access their calendar stores. The Calendar User
Agent (CUA) is the application that runs on
the user's machine and allows to manage the calendars provided by a calendar service
or a local calendar store. Calendar
Access Rights define which users are allowed to perform reading or
writing operations on what information on a given calendar.
The Internet calendaring
standards are described in detail in the next chapters. [RFC3283_ICALGUIDE,
p. 4] gives a short overview of these standards: There is a definition
of a language for describing calendar
objects (iCalendar), an application protocol for using the language to
perform scheduling (iTIP), and a description how
to transport the messages via email (iMIP). At last, there is another protocol that
allows to do calendaring with a calendar service in realtime (CAP). There is an interesting comparison of the
Internet calendaring standards and the Internet message standards in [RFC3283_ICALGUIDE,
p. 4]: iCalendar has the same goal as the Internet Message Format
defined in [RFC2822_IMF],
iTIP and iMIP can be
compared with SMTP [RFC2821_SMTP],
and CAP is analogous to POP3 [RFC1725_POP3]
or IMAP [RFC1730_IMAP4].
New standards are in development and at least should be mentioned
here: xCal [XCAL]
allows to use the iCalendar language not only in the MIME environment but also with XML. SkiCal [SKICAL]
will extend the iCal language so that yellow-page directory listings can
be enhanced to provide not only address information and descriptions of services, but also upcoming events and happenings.
3.3.1 iCalendariCalendar is defined in the "Internet Calendaring
and Scheduling Core Object Specification (iCalendar)" [RFC2445_ICALENDAR].
iCalendar is a language to define the components of a calendar. It is based on the work of the
vCalendar specification, that was written like the vCard specification by
the Versit consortium, and is now controlled by the Internet Mail
Consortium. There are the following types of components that can fill
a calendar: Event, To-Do, Journal entry, Free/Busy time information, Time Zone information, and Alarm. Events, to-dos and journals
can be recurring. Events and to-dos can contain one or several alarm components. iCalendar defines several
data types which are used to represent the properties of the components.
Some of the data types will be explained with the examples. For a
complete understanding of all data types and all properties, the reader is
referred to [RFC2445_ICALENDAR].
The Event ComponentAn event can have a start and an end date. It can be
related to to-do or journal components. This is an example from
[RFC2445_ICALENDAR,
p. 54]: BEGIN:VEVENT UID:19970901T130000Z-123401@host.com DTSTAMP:19970901T1300Z DTSTART:19970903T163000Z DTEND:19970903T190000Z SUMMARY:Annual Employee Review CLASS:PRIVATE CATEGORIES:BUSINESS,HUMAN RESOURCES END:VEVENT
There
is an identification string UID that allows to
build relations between components of a calendar. DTSTAMP gives a timestamp to show
the date and time when this message describing the event was created. Another tag, LAST-MODIFIED,
describes the time of the last change to the definition of this event. The CLASS value says whether the event is private, public or confidential. For
recurring events see the extra paragraph
below. An event also can be a reminder
without consuming time, e.g. to mark a special anniversary. Then the tag
TRANSP with the possible values OPAQUE and TRANSPARENT should be set to
TRANSPARENT, so that it is not published as busy
time [RFC2445_ICALENDAR,
p. 96].
The To-Do ComponentA to-do component represents something that has to
be done, be finished, or be prepared at a given point in time. This
deadline is given in the DUE property. A to-do component can be related to other to-do or journal
components. The following example of an to-do item is taken from [RFC2445_ICALENDAR,
p. 56]: BEGIN:VTODO UID:19970901T130000Z-123404@host.com DTSTAMP:19970901T1300Z DTSTART:19970415T133000Z DUE:19970416T045959Z SUMMARY:1996 Income Tax Preparation CLASS:CONFIDENTIAL CATEGORIES:FAMILY,FINANCE PRIORITY:1 STATUS:NEEDS-ACTION END:VTODO There
is a priority number assigned to a to-do so
that several to-dos can be ordered. The status
of a to-do can be one of the values
"NEEDS-ACTION", "COMPLETED", "IN-PROGRESS", or "CANCELED".
The Journal ComponentA journal is supposed to hold a descriptive text.
It can be used to store information about past events or to write down just incoming
information, e.g. minutes of a telephone call, or to prepare an event by adding some remarks to it. Journals can be related to each other or to events or to-dos.
The following example shows a journal
item, and it is taken from [RFC2445_ICALENDAR,
p. 57], but with a shorter description: BEGIN:VJOURNAL UID:19970901T130000Z-123405@host.com DTSTAMP:19970901T1300Z DTSTART;VALUE=DATE:19970317 SUMMARY:Staff meeting minutes DESCRIPTION:Staff meeting: Participants include Joe\, Lisa and Bob. Aurora project plans were reviewed. There is currently no budget reserves for this project. Lisa will escalate to management. Next meeting on Tuesday. END:VJOURNAL There
are special rules for formatting the content lines of iCalendar chunks,
the maximum length of a line should be 75 octets. The process of inserting
a carriage return, a line feed and a whitespace (either blank or a
tabulator) is called "folding" and is described in [RFC2445_ICALENDAR,
p. 13]. The result of folding can be seen in the example with the
value of the DESCRIPTION property. In fact, it could be used for all
iCalendar examples shown before, but it helps the human reader to write
each property in a new line.
The Free Busy
ComponentA Free Busy Component can hold a request for free busy times of a specified time range, or it can be
the response to that request, or it can be
just a publication of free busy times. This is an example for a request for free busy times from [RFC2445_ICALENDAR,
p. 59]: BEGIN:VFREEBUSY ORGANIZER:MAILTO:jane_doe@host1.com ATTENDEE:MAILTO:john_public@host2.com DTSTART:19971015T050000Z DTEND:19971016T050000Z DTSTAMP:19970901T083000Z END:VFREEBUSY The
ORGANIZER is the person that is asking the ATTENDEE for his free busy information
in the time range given with DTSTART and DTEND. The response would also
have the same ORGANIZER and ATTENDEE
properties, but additionally some FREEBUSY properties and an URL where to
retrieve the most current version of the free
busy times. This is an example of a
publication of free busy times [RFC2445_ICALENDAR,
p. 60]: BEGIN:VFREEBUSY ORGANIZER:jsmith@host.com DTSTART:19980313T141711Z DTEND:19980410T141711Z FREEBUSY:19980314T233000Z/19980315T003000Z FREEBUSY:19980316T153000Z/19980316T163000Z FREEBUSY:19980318T030000Z/19980318T040000Z URL:http://www.host.com/calendar/busytime/jsmith.ifb END:VFREEBUSY In
this case, the ORGANIZER is the owner of the calender whose free busy time of the
given time range is published.
The Time Zone ComponentThe time zone component is used to define time zones with their special arrangements
about summer time (DAYLIGHT) and winter time (STANDARD) and their time
difference from the Coordinated Universal Time (UTC). This is not used very often, so the reader
is just referred to [RFC2445_ICALENDAR,
p. 66] to see an example.
The Alarm ComponentAn alarm only appears as part of an event or to-do
component and describes what action should be taken at which time to
remind the user about the event or to-do. This example is from [RFC2445_ICALENDAR,
p. 72] BEGIN:VALARM TRIGGER;VALUE=DATE-TIME:19970317T133000Z REPEAT:4 DURATION:PT15M ACTION:AUDIO ATTACH;FMTTYPE=audio/basic:ftp://host.com/pub/sounds/bell-01.aud END:VALARM The
TRIGGER could also contain a relative time definition to the start or end
of the associated component. It defines when the alarm should go off. It can be repeated several
times with a given duration of silence in between. The ACTION can have one
of the values "AUDIO", "DISPLAY", "EMAIL" or
"PROCEDURE". According to the ACTION value, an attached audio file
referenced by the ATTACH tag is played, or a message given in the
DESCRIPTION field is displayed, or an email is
sent, which is assembled from the DESCRIPTION as the body, the SUMMARY as
the subject, and the ATTENDEE as the
recipient. The PROCEDURE action executes the file that is referenced in
the ATTACH tag, but this can be dangerous in an open system due to viruses
or hacker attacks.
RecurrenceThere can be recurring events, to-dos and journals. Recurrences can also be used to
define the summer and winter time of a time zone. There can be exceptions from
recurrences, and for free busy times recurrences are split down to the
single events. The recurrence rule has a
powerful syntax to produce any recurrence that could be required. It is
described in all details in [RFC2445_ICALENDAR,
pp. 117-125]. Normally a start date is given, and then there is a
rule how often (COUNT) or till when (UNTIL) the event takes place with a given frequency (FREQ).
Just some examples can be mentioned here: This example from [RFC2445_ICALENDAR,
p. 118] defines that the event would recur
for 10 days starting on the given start date: DTSTART;TZID=US-Eastern:19970902T090000 RRULE:FREQ=DAILY;COUNT=10 Just
one other example, from [RFC2445_ICALENDAR,
p. 120], shows an event that occurs on the
first friday of each month for 10 times. DTSTART;TZID=US-Eastern:19970905T090000 RRULE:FREQ=MONTHLY;COUNT=10;BYDAY=1FR
3.3.2 iTIP The iCalendar
Transport-Independent Interoperability Protocol (iTIP) [RFC2446_ITIP]
is the scheduling protocol that allows to exchange messages to organise
meetings. The messages hold events in
iCalendar format. iTIP is not bound to a
specific transport protocol. iTIP just defines
the application protocol for scheduling meetings and working with Internet
calendaring. All the properties are already defined in iCalendar, but
iTIP now gives them a meaning and prescribes
semantics for performing Internet calendaring. iTIP has rules for events, to-dos, journals and freebusy times, which are all
components of a calendar item defined in
iCalendar. In the following paragraphs the iTIP
semantics only for events and freebusy will be
explained in more detail.
Organising EventsThere are several
types of messages that can be sent between Internet calendaring participants. The message types are: PUBLISH, REQUEST,
REPLY, REFRESH, ADD, CANCEL, COUNTER and
DECLINECOUNTER. There are two roles defined by iTIP, Organiser and
Attendee. Both of them are allowed to send
some types of messages in specific situations. There are a lot of
described situations, and this is not the right place to go through all of
them. The following table shows a simple example of organising a group
event. The table was taken from [RFC2446_ITIP,
p. 64].
Action |
"Organiser" |
"Attendee" |
Initiate a meeting request |
"A" sends a REQUEST message to
"B", "C", and "D" |
|
Accept the meeting request |
| "B" sends a REPLY message to "A" with
its ATTENDEE "partstat" parameter set
to "accepted" |
Decline the meeting request |
| "C" sends a REPLY message to "A" with
its ATTENDEE "partstat" parameter set
to "declined" |
Tentatively accept the meeting request |
| "D" sends a REPLY message to "A" with
its ATTENDEE "partstat" parameter set
to "tentative" |
Confirm meeting status with attendees |
"A" sends a REQUEST message to "B"
and "D" with updated information. |
| Just to show one example of such a message
(taken from [RFC2446_ITIP,
pp. 64+65]): BEGIN:VCALENDAR PRODID:-//ACME/DesktopCalendar//EN METHOD:REQUEST VERSION:2.0 BEGIN:VEVENT ORGANIZER:Mailto:A@example.com ATTENDEE;ROLE=CHAIR;PARTSTAT=ACCEPTED;CN=BIG A:Mailto:A@example.com ATTENDEE;RSVP=TRUE;TYPE=INDIVIDUAL;CN=B:Mailto:B@example.com ATTENDEE;RSVP=TRUE;TYPE=INDIVIDUAL;CN=C:Mailto:C@example.com ATTENDEE;RSVP=TRUE;TYPE=INDIVIDUAL;CN=Hal:Mailto:D@example.com ATTENDEE;RSVP=FALSE;TYPE=ROOM:conf_Big@example.com ATTENDEE;ROLE=NON-PARTICIPANT;RSVP=FALSE:Mailto:E@example.com DTSTAMP:19970611T190000Z DTSTART:19970701T200000Z DTEND:19970701T2000000Z SUMMARY:Conference UID:calsrv.example.com-873970198738777@example.com SEQUENCE:0 STATUS:CONFIRMED END:VEVENT END:VCALENDAR There
are roles assigned to attendees. In this
example, "A" is supposed to be the host of the meeting, "D" is not
invited, but he should know about the meeting. If there is the RSVP (from
French: répondez s'il vous plaît) parameter set to TRUE, then the organiser expects the attendee to send a reply. There is a room booked. E is not invited,
but should know about the meeting. Other more complicated situations
are that an attendee proposes another date
or time using a COUNTER message, and that the organiser replies either with a
DECLINEDCOUNTER to reject it or sends a new REQUEST to all attendees. The way to delegate an event
is described in [RFC2446_ITIP,
p. 68]: The delegator sends a REPLY to the organiser, with his attendee property parameters filled with the
status "delegated" and a value for "delegated-to" which holds the address
of the delegate. There is also an additional
attendee, the delegate, inserted in the reply, and his "delegated-from" parameter refers
to the delegator. The delegator also sends a copy of the original REQUEST with the delegation information to the
delegate. The delegate can react to this REQUEST as usual, i.e. decline, accept, or set
to tentative. Even situations how to
replace an organiser are described in [RFC2446_ITIP,
p. 75]. This can be necessary for example when the organiser has left the company, and someone
needs to be responsible to apply changes for the event.
Another problem addressed by iTIP is the sequencing of messages [RFC2446_ITIP,
p. 11]. Sequencing is important because every recipient of any message
must know which one is the most current description of the event. The Unique Identifier (UID) helps to see which message belongs to which event [RFC2445_ICALENDAR,
p. 111]. One event and all the following
messages concerning that event have the same
UID, but different SEQUENCE numbers. The SEQUENCE
number is incremented with every ADD and CANCEL, and also, when information of the event is changed, with PUBLISH and REQUEST, but not with a delegating request [RFC2446_ITIP,
p. 10]. A special case are recurring components that are split up: A
specific instance of a recurring event is
identified by the same UID as the recurring event, but has a special RECURRENCE-ID property
which holds the specific date and time of the specific event [RFC2445_ICALENDAR,
p. 107]. At last, the sequence of messages with the same
identification can be discovered by comparing the time stamp which is
given in DTSTAMP.
Exchanging Free Busy TimesExchanging free busy times is only
based on 3 methods [RFC2445_ICALENDAR,
p. 31 ff.]: A calendar user can REQUEST free busy times of a given time range from another
user, and this user can REPLY. Or a calendar user can just PUBLISH his free busy times without being asked for it.
Examples of a request and a reply dealing with free busy times were
given already above. It just should be mentioned that it is possible to
specify several attendees in a request in order to get replies from all
required people.
3.3.3 iMIPThe iCalendar
Message-Based Interoperability Protocol (iMIP) is a transport protocol for Internet
calendaring messages. It uses email standards
for the transport. It is described in [RFC2447_IMIP].
The messages are wrapped in MIME encoded emails. The "content-type" value is "text/calendar". This is a very basic approach, and
it is recommended to use encryption and authentication e.g. with the
"Security Multiparts for MIME" [RFC1847_SMIME].
3.3.4 CAPThe Calendar Access
Protocol (CAP) is still work in progress, and
it is described in [DRAFT_IETF_CALSCH_CAP].
CAP extends iTIP by
some methods that are necessary for realtime operation on a calendar service. The iTIP
workflows are not changed [DRAFT_IETF_CALSCH_CAP,
p. 18]. CAP sends MIME encapsulated commands, and uses the Blocks
eXtensible eXchange Protocol (BEEP) as the
transport and authentication protocol [DRAFT_IETF_CALSCH_CAP,
p. 22]. BEEP is described in [RFC3080_BEEP].
It is based on TCP, and in contrast to the Internet mail protocols, it
provides realtime operation. There can be queries to search a calendar store (for examples see [DRAFT_IETF_CALSCH_CAP,
p. 33 ff.]), and all other necessary commands to administrate the calendar service
and the remote calendar store. This
standard is still not ready, and some bits are missing. But it will become
really important for standardised calendar
servers.
3.4 Other Standards for CalendaringBecause the Internet
calendaring standards are not all confirmed yet and some solutions were
created already before the existence of any Internet calendaring standard,
there are some strange standards and ideas how to implement group
calendaring. The following solutions provide some kind of access to
calendaring information in order to being able to organise a meeting.
3.4.1 MAPIThe Messaging Application
Programming Interface (MAPI) is the
Microsoft solution for applications which need to "exchange or store
information in a particular format" [MICROSOFT_MAPI_F].
It consists of two parts, a messaging architecture and a client interface component [MICROSOFT_MAPI_G].
The messaging architecture defines the interactions between applications
and messaging systems. The client interface
component defines an interface for clients so
that they can use the messaging systems through a standardised interface.
Furthermore, Microsoft uses a proprietary format for encoding MAPI messages into a serial data stream [MICROSOFT_TNEF].
It is called Transport-Neutral Encapsulation Format (TNEF). Service
providers are pieces of software that can be accessed by an application
through the standard client interface in
order to use the messaging system that the service provider is able to use. The service provider translates the general MAPI requests und
functions to the specific handling of the message store, the directory and
the message transport. In the rest of this text, these service providers are called connectors,
because some companies call their products like this and it illustrates
the functionality of this kind of software. For example, Outlook
supports MAPI service providers. That means, that any company
can develop a MAPI compatible service provider, and install it with Outlook.
The service provider of this company would
then use the messaging system of the company to manage all data that is
processed with Outlook. An idea often used with this approach is to
save calendaring data in IMAP folders. This
allows to save calendaring data wrapped in an email in one IMAP
folder, and all content of one IMAP folder
represents a persons calendar. The calendar server
is responsible for the group calendaring, and it is able to read and
modify the calendar data saved in the IMAP folders.
3.4.2 FTP, HTTP,
HTTPS, WebDAVThe following approach only
provides very poor group calendaring: It just allows to publish and subscribe free busy times. The
disadvantage is that no details of the events
that make the person busy is visible to anyone,
and that everyone can only change his own free
busy times. The advantage of the "only free busy times"
approach is that no calendaring server is
required. Free busy times can be considered as shared
information. You don't need a server, but
just a shared workspace where you and your colleagues have write and read
access to. This shared workspace was first provided by a combination
of the File Transfer Protocol (FTP) and
the Hyper Text Transfer Protocol (HTTP)
to access the directory with the free busy times on the server. The user saves his free busy times via FTP on the server
whenever his calendar changes, and other
users can subscribe to his free busy times and retrieve his free busy times via HTTP from the server.
That helps them to organise a meeting because they can see whether the
user would be available to attend the meeting or not. FTP is not a suitable protocol concerning security
constraints, because it has no encrypted password or data transmission,
and a third person is able to listen to all traffic and can understand all
data. HTTPS is the improved HTTP with extended
security features. HTTP also provides the
transfer of files in both directions, so people thought about extending HTTP with additional functionality so that it can
be used for all kinds of distributed authoring and versioning. This new
protocol, based on HTTP, is called Web-based
Distributed Authoring and Versioning (WebDAV). It is defined in [RFC2518_WEBDAV]
as an "extension to the HTTP/1.1 protocol that
allows clients to perform remote web content
authoring operations".
3.5 SynchronisationData synchronisation can be defined as "the
process of making two sets of data look identical" [SYNCML_WP,
p. 3]. There is also a good definition of the term
synchronisation protocol: "A data synchronization protocol
defines the workflow for communication during a data synchronization
session when the mobile device is connected to the network. The protocol
must support naming and identification of records, common protocol
commands to synchronize local and network data, and it can support
identification and resolution of synchronization conflicts." [SYNCML_WP,
p. 3] At the moment there are a lot of different proprietary
protocols for data synchronisation between PDAs,
mobile phones, personal computers, and servers. That makes it hard to develop
applications that process data that should be available on different
devices: It needs to be ensured the application can communicate and
synchronise with the whole number of different existing protocols. The
creators of such a proprietary protocol are often the providers of an
operating system that is designed for mobile devices. They also have the
problem that they want their products to be usable with as much
applications as possible. One step to encourage application developers to
support their protocol is to provide a synchronisation software for
several platforms and operating systems, which is able to use plugins from
the application developers. These plugins are also called
conduits. They are able to access the
application's data and to associate the correct data fields of the
application with those of the mobile device's software. But it is still
an expensive task to provide a special conduit for each of a big number of existing
products.
3.5.1 Initiatives and AlliancesIn February 2000, the
SyncML initiative was founded by some important companies that are
involved in the market of wireless devices. SyncML stands for Synchronization Markup
Language. The initiative aims to define a specification that allows
devices to synchronise their data although they store it in different
formats and are based on different software platforms. See more about
technical details of this specification below. In November 2000,
already more than 500 companies from the same sector [SYNCML_SUPPORT]
supported this initiative. A SyncML C
Reference Toolkit was published under an open source licence in August 2002 [SYNCML_TOOLKIT].
There were 99 SyncML compliant products in
September 2002 [SYNCML_PRODUCTS].
One problem was that many important companies joined this initiative, but
Microsoft did not [STEMBERGER,
p. 4].
In June 2002 the Open Mobile Alliance (OMA) was formed [OMA].
Its members are the SyncML initiative and
other initiatives which have their own synchronisation protocol standards.
Besides other 200 companies, even Microsoft joined this alliance [MCCARTHY].
The goal of this alliance is to create open standards and specifications
for mobile devices that allow interoperability between devices from
different providers and based on different platforms. Hopefully they will
also create good standards for synchronisation.
3.5.2 SyncMLThis chapter should just
give a short introduction to the SyncML
specifications. They are designed to be platform independent and
transport independent. The connection can be wired or wireless. Examples
for supported transport protocols are HTTP, SMTP, the Wireless Session Protocol (WSP), and the Object Exchange protocol (OBEX) [STEMBERGER,
p. 2]. WSP belongs to the Wireless
Application Protocol (WAP), and both
protocols are supervised by the Open Mobile Alliance. OBEX was created by the InfraRed Data
Association (IrDA) and is a session protocol
that is often used with Bluetooth. There are two SyncML specifications: The SyncML Device
Management specification helps e.g. to remotely update and configure
the wireless devices in the company. In this text, the main focus is on
the SyncML Data Synchronisation specification, which consists of
two protocols and a Document Type Definition (DTD) for the XML compliant
Synchronisation Markup Language. The two protocols are the SyncML Sync Protocol and the SyncML Representation Protocol. The Sync Protocol
describes the ways data can be synchronised between a client and a server, while the Representation Protocol
defines the semantics of the individual commands and their effects.
fig. 3.3.: SyncML
Framework
The Representation Protocol describes the SyncML Framework, which is shown in fig.
3.3 [SYNCML_SYNC,
p. 7]. The Sync Protocol defines the behaviour and structure of the
sync engine, the server agent, and the client agent, which
are all outside the framework. The SyncML Sync
Protocol There are 7 different types of synchronisation described
in [SYNCML_SYNC,
pp. 8+9]. The most common type is the two-way sync, which only transfers the changed and
new data items between the sync client and
the sync server in both directions. The
slow sync also synchronises in
both directions, but transfers all data. The "one way sync from client
only" only sends new data from the client to
the server. There is also the reverse
situation that the client just gets modified
data from the server. Another type of
synchronisation is a refresh, which
can be used either from the client or from
the server only, and means that all old data
is replaced with a complete set of data from the other device. The last
type, the server alerted sync, gives the server the opportunity to ask the client for a synchronisation. For all types
of synchronisation, it is necessary that the involved devices know about
the history of their data, i.e. the change log information, and the history of
synchronisations, which is represented with the sync anchors. If a device is synchronised with several
other devices, it needs to keep the records of history for each of the
other devices [SYNCML_SYNC,
p. 10]. [SYNCML_SYNC,
p. 27] also describes the sync initialisation that is required before
every type of synchronisation. This initialisation both helps to detect
the capabilities of each device and to authorise the access to the data
that should be synchronised. For more information and a good
introduction to the SyncML Sync Protocol, see
[PABLA]
or [BUCHMANN].
4 MARKET STUDY OF EXISTING GROUPWARE
APPLICATIONSThe main focus of this market study is the support of
group calendaring. Synchronisation with an offline client and a PDA device
is also taken in account. Some assessment and comparison of the
products can be based on common requirements, but the final ordering of
the solutions is up to those who know the requirements of their own
environment.
4.1 Analysis of products and projectsThis chapter describes the
way used to analyse the existing solutions for groupware needs.
4.1.1 How to find solutionsAt first there were some proposals
from users who had come across some possible solutions. Other names of
solutions could be found by searching on the Internet for "groupware". Another way to find further
products was to read the documentation of a product, especially the
references to competing products and how to import data. The discussion on
the mailing lists of open source projects also gave the names
of some products: People required that the coming open source product should have similar
functionality to an existing product or should provide the import of data
from that existing product. So while investigating the known solutions,
some further solutions could be found.
4.1.2 Investigation of a productThe best way to compare the
different products is to collect a group of attributes based on a list of
requirements. This list contains company specific requirements as well as
common requirements. Each product should be investigated concerning these
attributes, so to allow the comparison of each product with the others.
4.1.3 Assessment of a productBecause the attributes are related
to the companies specific requirements, it is possible to sort the found
solutions using the attributes and the priority of the related
requirement. So if a solution fails a requirement with the highest
priority, it is marked as unsuitable. But the better a solution meets high
priority requirements, it is more and more suitable. For the people who
have to decide about the topic, there is also a short summary of the pros
and cons, a conclusion based on that, and finally a standardised decision
statement by which the products can be grouped.
4.1.4 Common aspects of a productSome questions should be asked
when investigating any kind of product:
- Are there enough other users? What are their experiences?
- Is the providing company stable enough to support the product over a
long period of time?
- Can the product be configured so that it meets the customer's specific requirements?
4.1.5 Special aspects of open
source projectsThere are some points in assessing a product that are
different for open source projects.
There will be no agreement that will ensure support like a commercial
product would provide. These are the topics that have to be investigated:
- Looking back: How long does the project exist? What are the
achievements of the project? Was there enough progress in relation to
the time span the project exists?
- Who is leading the project? Is it a single person or a team of
leaders?
- How many and what people are contributing to the project? Are there
enough competent and committed people?
- Are users supported by the open
source community? How busy is the mailing list? Are there competent
answers to problems of the users? How many users are using the product?
- Does the license fit for the required use in the company?
- Is there commercial support by other companies? How are those
companies involved in the project? Are employees working with the open source community, or are they
working on their own commercial extensions? (Some licenses allow that)
- Looking ahead: Are there visions of new goals? Will future releases
still meet the companies' specific requirements?
Answers to
these questions can be found by visiting the projects' websites. Archives
of the mailing lists provide
information about past discussions. It also helps to look at the roadmap
of the project to see plans for the future. If the project is hosted at a
website that provides support for open software development, there is a
short standardised description of the project. Some examples for such
providers are:
4.1.6 List of AttributesThe following table shows the list of
attributes that was collected for this work. It is influenced by the list
of requirements. In many cases, the investigation of some attributes
already made clear that the product would not be suitable for OM, because a high priority requirement was not met.
For there was not too much time for the project, no further investigation
was conducted in those products. That is the reason why not all products
are investigated concerning all attributes. The attributes and a short
description for each of them are given in the following table:
name of attribute |
short description |
id |
Identification string |
category |
association to a specific category (see possible values
below) |
short |
if the category is not exactly describing the product, some more
details can be given here |
title |
name of the product |
version |
the investigated version |
Internet addresses |
the website of the product; sometimes other Internet links to
information concerning the product |
download address |
the Internet link to a webpage where a test or full version of
the product is provided |
documentation |
a link to a webpage containing help for users and description of
the product, or a description where to find documentation in the
downloaded version |
installation help |
link to a webpage containing help for administrators, or a
description where to find documentation in the downloaded
version |
installation hints |
If the program was installed for testing on the OM Standard Linux
Server, here is a short protocol of what had to be done and how
arising problems could be solved. |
demo version |
link to an online demo version that allows testing the product
without installing it; the public demo user login name and the
password are also provided. |
client |
short description of the requirements of the client |
server |
short description of the requirements of the server part of the solution |
licence |
Is the product under an open
source licence, or is it commercial? |
costs |
The prices of the product given on the webpage of the producer;
What other costs of required products are necessary? |
marketing statement |
Just one sentence that is on the webpage of the producer and
helps to see what goal the company has for this product. |
calendar |
The functionality of the calendar
that belongs to the product is described here in more detail. Some
products that got a special investigation have the subtopics
"invitation", "private", "resource", and/or "repeating". These give
information about how other people can be invited, if there is the
possibility to create private appointments, how the booking of
resources is integrated into the calendar, and how repeating appointments
and meetings can be created. |
email |
If the product contains an email client, its functionality is described
here. |
data exchange |
This is information about how the product allows synchronisation
with PDAs and offline clients. Also export/import functionality
with files is mentioned if available. |
modules |
A short enumeration of other modules besides calendaring and email, that are included in the
product. |
reliability of support |
short description of the company or developers community, and
information about the users community |
pro |
The main advantages of this product. They should be already
mentioned in the investigation, but are summarised here. |
contra |
The main disadvantages of the product which are attributes of
the program that don't fulfil a requirement. |
conclusion |
A short summary why and how the following decision was
made |
decision |
The decision whether or not this product is suitable for OM. There are several defined decisions that
group the products again, but now according to the requirements of
OM. For the list of possible decisions see
below. |
4.2 Categorisation of SolutionsThis chapter shows how groupware applications can be assigned to
categories. Different categories are formed, based on different points of
view. In the end, a set of categories is given by which the investigated
solutions can be grouped together.
4.2.1 The Solutions and their Communication ArchitecturesThere
are several approaches to provide groupware functionality:
- peer-to-peer model: The clients
communicate directly with each other e.g. via email. There is no central storage or
processing of calendaring information. All data is stored locally. One
example for this is Ximian Evolution.
- free/busy server: This basically provides a central storage
of calendaring data. There is no processing of data on the server. Outlook and Mozilla support this basic
type of group calendaring.
- client/server model: The user can use a client to connect to the server. The server can support clients running on different platforms. Not
every client software also provides offline
functionality, i.e. not all clients save
the data locally.
- multitier approach: A web interface is used to get access to
the functionality provided by the calendaring server.
Some solutions provide a server that works with both a web interface and
one or more clients, e.g. for several
platforms. The products that include at least one client software, normally also provide a tool
for PDA synchronisation.
4.2.2 The Solutions and their Software LicencesThere are a lot of
different types of licences under which a software can be developed and
released. This text only uses the terms commercial and open source licences. Software with a
commercial licence normally is not for free,
and the main characteristic is that the sourcecode is not publicly
available. There are many different types of open source licences, but here this term
is used for all software which is published for free and includes the source code. Especially
with the client/server approach it is
possible to mix commercial solutions with open source projects. The following list
is ordered by the degree of dependability on commercial software.
- commercial client and commercial server (e.g. Exchange/Outlook, Lotus
Domino/Notes, and lots more)
- commercial client with commercial client connector tool and commercial server running on Linux (e.g. Outlook &
Insight Connector & Insight Server)
- open source client with commercial client connector tool and commercial server (e.g. Ximian Evolution & Ximian
Connector & Exchange)
- commercial client with commercial client connector tool and open source server running on Linux (e.g. Outlook &
Insight Connector & Kolab)
- open source client and open source server running on Linux (e.g. KDE-PIM & Kolab)
But also the solutions
that provide a web interface can use different licence models:
- webbased interface and commercial server running on Linux (e.g. BSCW)
- webbased interface and open
source server running on Linux (e.g.
phpGroupWare, PHProjekt, moreGroupware)
- A service provider can give allow
users to create and access their data on a server that is on the Internet. The advantage
is that there is no maintenance of a server, but information is carried out of the
company and does not stay inside the intranet.
Most commercial
solutions are sold on a per user basis, but some of them sell the
individual client software. That makes the
solution even more expensive if the user wants to access his data with
both e.g. a Windows client and a PDA. Some of the commercial solutions have a quite
long history and changed from proprietary standards to open standards.
4.2.3 The CategoriesThe products investigated in this diploma
thesis can be assigned to the following categories:
- Outlook/Linux: There is a Linux server that is able to provide Outlook with
group calendaring
- webbased & Outlook: A server running Linux that provides a webbased
interface and allows Outlook either to use this server for group calendaring or to import and
export calendaring data from and to that server
- webbased: A Linux server just
providing a webbased interface
- webbased & client: A Linux server providing a webbased interface and
some proprietary offline client
- client: a client for group
calendaring
- sync: synchronisation tools, either for synchronisation
between a server and Outlook or a server and PDAs
The following categories were formed because some products
should be mentioned when talking about groupware, although they are not useful for
the OM Standard Linux
Server:
- no calendar: groupware tools
without group calendaring support
- non Linux server: server
requires e.g. Solaris or Windows operating system
- outdated: These programs are not supported anymore.
- service provider: These companies just provide group
calendaring on their website.
4.2.4 Investigated Products ordered by CategoriesThis is a table
about all the products that were investigated during this diploma thesis.
For more details about each solution, please refer to the appendix, or see
the following subchapters that mention some of the products in more
detail.
Outlook/Linux [BILL
WORKGROUP] BILL Workgroup Server; [BYNARI
INSIGHT] Bynari Insight Server; [KOLAB]
Kolab / Free Software Groupware Project; [CALDERA
VOLUTION] Caldera Volution Messaging Server webbased &
Outlook [ORACLE
COLLABORATION] Oracle Collaboration Suite; [SUSE
MAIL] Suse Mail Server; [SAMSUNG
CONTACT] Samsung Contact; [DAYPOINT]
FrontOffice Communications: DayPoint Enterprise; [ECAL]
eCal M1; [SCHEDULEONLINE]
ScheduleOnline Intranet; [WEBEVENT]
WebEvent Team webbased [SQWEBMAIL]
Courier MTA / SqWebMail; [MOREGROUPWARE]
moreGroupware; [BSCW]
BSCW; [PHPROJEKT]
PHProjekt; [PHPGROUPWARE]
phpGroupWare; [TUTOS]
Tutos; [TWIG]
TWIG; [SKYRIX]
SKYRiX Web Groupware; [XENTRIX]
intisoft Xentric groupware server; [ERIDU]
eridu; [PROIEKTOR]
Proiektor; [UW]
UW Calendar Information Center; [GROVEWARE]
Groveware CAL/RM 2000SE; [CALENDAR
INTERNET] Calendar Internet; [GHC]
Great Hill Corporation: Calendars for the web; [HTMLCAL]
HTMLCAL; [MDAEMON]
MDaemon webbased & client [TEAMWARE
OFFICE] Teamware Office; [NOVELL
GROUPWISE] Novell Groupwise; [MEETINGMAKER]
Meeting Maker; [SUSE
GROUPWARE] SuSE Linux Groupware Server with Lotus Domino; [LOTUS
DOMINO] (IBM) Lotus Domino / Notes; [MAILSTUDIO]
MailStudio Calendar Server; [CYBERSCHEDULER]
Crosswind Cyberscheduler & Synchronize & CyberSync; [BROWNBEAR
CALCIUM] BrownBear Calcium Web Calendar Server and
TripleSync client [OPENOFFICE.ORG]
OpenOffice.org Groupware; [MICROSOFT
OUTLOOK] Microsoft Outlook; [XIMIAN
EVOLUTION] GNOME Ximian Evolution; [MOZILLA]
Mozilla Calendar; [KDE
PIM] KDE PIM application suite (with KOrganizer); [CHANDLER]
Chandler sync [AXISSYNC]
AxisSync; [PHPORGASYNC]
phpOrgaSync; [SYNCBUILDER]
SyncBuilder Java Framework no calendar [ICQ
GROUPWARE] ICQ Groupware; [PHPCOLLAB]
phpcollab non linux server [MICROSOFT
EXCHANGE] Microsoft Exchange; [SUN
CALENDAR] Sun Calendar Server; [LIVELINK]
Opentext Livelink; [HYPERWAVE]
Hyperwave Team Workspace outdated [SUN
STAROFFICE] Schedule and Schedule Server - StarOffice; [NETSCAPE
CALENDAR] Netscape Calendar Server service provider [CONTACTOFFICE]
ContactOffice; [APPOINTMENTQUEST]
Appointment Quest; [APPOINT.NET]
appoint.net; [CALENDARS.NET]
Calendars.net; [CALENDARSERVER.COM]
CalendarServer.com; [HUNTCAL]
www.huntcal.com; [E2DO]
www.e2do.com; [LOCALENDAR]
www.localendar.com; [SMARTCAL]
www.smartcal.com; [SUPERCALENDAR]
www.supercalendar.com; [YAHOO
CALENDAR] www.calendar.yahoo.com
4.3 Description of SolutionsThis chapter gives a short
description of some group calendaring supporting solutions. The CAP protocol is not fully specified, so there is yet
no basis for calendar servers to be built on the Internet standards.
Hopefully, the soon future will bring Internet based calendaring in such a
variety as there are Internet message servers and clients at the moment that are all capable of
the same Internet protocols, e.g. POP3 and SMTP.
4.3.1 Integrated Client/Server Groupware SolutionsThis chapter gives an
overview over the history of collaboration software and the existing
integrated solutions that are delivered with both a server and a client.
Just to give an impression about
the size and the shares of the collaboration market, here is a quotation
from [WONG]:
"In 2001, IBM led the $1.6 billion market with a 49 percent share of
revenue, followed by Microsoft with 39 percent and Novell with 6 percent,
according to market researcher IDC. Microsoft, however, ranked first in
the number of customers. Of 210 million users
worldwide last year, Microsoft captured 40 percent, followed by IBM with
35 percent and Novell with 16 percent." The original articles from the
market researchers are expensive, so it is not possible to provide the
correct context of this figures. It seems that IBM/Lotus is more
expensive, but enough companies are willing to pay for it anyway, so that
in the end the revenue is bigger than that of Microsoft. But it seems that
Microsoft will overtake IBM/Lotus by improving Exchange more and more and
by having better user acceptance. For more information about this topic
see [WATSON].
IBM and Lotus have the longest experience in the collaboration
market with their products Notes and Domino. Lotus introduced Lotus Notes
in 1989 [WATSON].
Microsoft published the first version of Exchange in 1996 [MICROSOFT_L].
It replaced the Microsoft Mail Server.
Exchange provides both a mail server and groupware functionality, e.g. shared folders
that can contain e.g. email, calendars and documents. Outlook is the client for Exchange. Novell Groupwise cannot
be investigated here. It did not provide a Linux server, so it was not interesting for OM anyway. There are also smaller companies that
offer group calendaring software. One example is MeetingMaker who sell
their product with the same name. They are working in this area since
1990. They concentrate on just group calendaring and don't provide any
other groupware functionality. Another
example is Fujitsu/Teamware with their product Teamware Office. This is a
suite that provides several groupware
applications, e.g. calendar, email, and forum.
Lotus Domino/NotesLotus Domino and Notes were not installed
during this diploma thesis, because it was obvious that these products
would be too powerful for OM. They have so many
features and provide all the applications that are already covered by the
existing OM solution. They would replace the OM Standard Linux with its preconfigured
applications, but it would take a lot of time to prepare Lotus
Domino/Notes so that it is as easy to install and maintain as the existing
solution. But nevertheless, the Lotus products at least should be
mentioned because they are widely used. Lotus Notes is the "e-mail,
calendaring, group scheduling, Web access and information management client" [BRICHACEK,
p. 5]. Lotus Domino is the application server for it. The approach of Lotus is to
use a powerful database that is able to manage all kinds of entities.
Examples for such entities are emails,
appointments, documents, and much more. The database supports replication
and therefore offline or disconnected operation is possible ([LAVINE]
and [BORGHOFF,
p. 140]. There is the possibility to extend Domino/Notes with customer applications. Domino can work together with
the IBM Websphere Application Server to
provide web services [BRICHACEK].
One point that needs to be mentioned is that Lotus was able to
overcome the own proprietary email and
directory standards and to implement Internet standards [JOHNSTON].
Microsoft Exchange/OutlookThis chapter focuses on Outlook, which
is the client for Exchange. But this will
show the abilities of Exchange as well. Microsoft Outlook is very well
known because Outlook Express, which is a restricted Outlook version with
only email client
functionality, is given away for free together
with the Microsoft Internet Explorer. And Outlook belongs to the Microsoft
Office which is used by many companies. In earlier versions up to
Microsoft Outlook 2000, there were 3 modes in which Outlook could be
operated. In the current version, Microsoft Outlook 2002, all modes can be
used simultaneously. That means one profile can contain several email account types at the same time. In the
"No Email Mode", Outlook just works as a
standalone Personal Information Manager (PIM) without any email
functionality. There is the "Internet Mail Only" mode, that allows
using email services with POP3/IMAP/SMTP, and group
Calendaring with the Internet Free/Busy
feature. Internet Free/Busy uses the
iCalendar standard to manage the free and the
busy times of a person. The Internet Free/Busy times are saved and accessible from
an HTTP server
that runs the Frontpage extensions. These extensions are not only
available for Microsoft's webserver, but also for the Apache webserver.
For Outlook 2000, the Microsoft Web Publishing Wizard is required, but
there is only a supported version for Windows NT 4.0 or Windows 98 [MICROSOFT_FB].
Invitations are sent via email. That means
that no realtime calendaring is used. In the "Corporate Workgroup"
mode Outlook has a connection to a groupware server, which normally is Microsoft Exchange.
This cooperation is based on MAPI. But there are
some other companies that offer a plugin program, which enables Outlook to
communicate with another server than
Exchange. Outlook provides offline folders, that can be synchronised with
the associated folder on the server. A
folder can contain emails, a calendar, notes, contacts and tasks (to-do). Permissions can be granted to other users
on different levels, e.g. it is possible to permit a colleague to only add items but not to edit existing items. There are
also public folders, which are folders without any write or read
protection. Outlook is able to import and export appointments in the
iCalendar format, but the export works only with one appointment per file.
So this is no real help for exporting all events of e.g. a week. Another type of import and
export works with files in the Comma Separated Values (CSV) text file format. The problem with this is that
a lot of information, e.g. all the recurring events information, gets lost. A recurring event is replaced by one event per instance. There are no unique IDs
assigned to the events, so it is difficult to
avoid duplicated entries during synchronisation. Every PDA supports synchronisation of calendar items with Outlook. That means that
an Outlook conduit is delivered with the
synchronisation software of the PDA.
4.3.2 Groupware ClientsThis chapter gives more details
about some groupware clients. Only those clients are mentioned, that either seem to
establish their own standards which are widely accepted or that are using
the existing Internet standards and are expected to work with the coming
Internet standards. The Microsoft Outlook client was already investigated in detail. A
connector software, e.g. Bynari Insight Connector, can be used to
integrate Outlook with other servers than
Exchange. The open source
community is working on some projects to provide free groupware servers and clients. On the client side, there is work in progress on
Mozilla and OpenOffice.org. Mozilla is extended with a calendar application. The people developing
OpenOffice.org want to integrate the Mozilla code into their groupware component. OpenOffice.org is the
opensource version of StarOffice, which belongs to Sun. These two
projects, Mozilla and OpenOffice.org, are intended to run on both the
Linux and the Windows operating systems. The problem is that there is no
suitable free server yet available that would provide
realtime calendaring. Ximian Evolution is a client only to be used on Linux systems. The
KDE PIM application suite also requires Linux.
There is a project called "Kroupware", they are developing the Kolab server (see below) and want to port the KDE PIM applications to Windows.
MozillaThe Mozilla project is based on the source code of the
Netscape browser. In March 1998 this source code was released by Netscape
under an open source license. People
outside the company were invited to join the project, to improve the
product and to develop the future releases. There are people payed by
AOL/Netscape who only work on the Mozilla project, in parallel to the
developers working on the Netscape browser releases. Mozilla technology
can be used for every other project that fulfills the requirements of the
Mozilla or Netscape Public License. Some detailed information about
this deal is described by Eric S. Raymond [RAYMOND,
pp. 27-29]. The current Netscape browsers (up from version 6.0) are
based on Mozilla technology. The Netscape Communicator 4.x contained a
calendar component, but that was licensed
from CS&T (Corporate Software Technologies
International Inc., which is today known as Steltor and was taken over by
Oracle). So the calendar component could
not brought into the Mozilla project like e.g. the email client.
Because there is no open source Calendar server
available, the calendar that is in
development at the moment only supports exchange of calendar items via email and free/busy times using an FTP/HTTP or WebDAV/HTTPS server. The invitation is not yet integrated
with the creation of appointments. There is no PDA synchronisation available yet. But at least it
appears on the requirements list of the Mozilla calendar.
Ximian EvolutionXimian is the same company that founded the Gnome
project. Ximian is opensource, and it is sometimes called the Outlook for
Linux. It can be used together with the Microsoft Exchange server, but then a commercial connector from
Ximian is required. It also can be used without any calendaring server, because it supports a peer-to-peer architecture for group
calendaring. This is based on the Internet calendaring standards, by
communicating via emails consisting of
iCalendar messages. Free/Busy times can
also be sent via email. For more
information about Ximian Evolution, see [MOELLER].
KDE PIMThe KDE PIM kit also provides some collaboration clients for the Linux users, e.g. an email client
(KMail), and a calendaring client
(KOrganizer). KPilot is a synchronisation tool for PDAs, and there is work in progress on Kitchensync.
Work on the integration of the several applications is going on, there
is the Kaplan project and the temporary Kroupware project. The
Kroupware project was initiated by the German "Bundesamt für Sicherheit in
der Informationstechnik" with the goal to find and/or develop an open source group calendaring server and the fitting client software [ERFRAKON,
p. 6]. One step to the final solution is to provide a Linux client [ERFRAKON,
p. 36]. This project was called Kroupware, but its name will either be
replaced by a better name, or the project will be integrated into the
existing KDE PIM tools. Erfrakon also plans
to port these applications to Windows in some time in the future [ERFRAKON,
p. 37]. That could be possible by using the QT library and Cygwin for
Windows. The solution is not ready for group calendaring at the
moment: Peer-to-peer operation is not
possible, because the mail and the calendaring client are not integrated yet, and there is no
server available. The Kolab server, also from Erfrakon, could fill this
gap. It is described below.
4.3.3 Groupware Solutions providing a
Web InterfaceA lot of groupware servers also give the user the opportunity to
access the groupware applications using a
standard web browser. The main advantage of using a web interface is
the centralised installation, nothing has to be configured on the
workstations. A suitable web browser is always available [KLOECKNER,
p. 6]. But there is a problem with alarms
or reminders: A web interface is only able to react, but cannot act on its
own. A solution for that problem is the use of a Java applet or a routine
in Javascript that can poll the server to
ask if there is an upcoming event. Another
disadvantage when using the solution inside an intranet is that the data
is not available from the outside, which would be important e.g. when
people are travelling. There are often solutions to synchronise a suitable
client software, often Outlook, with the server that provides the web interface. The
big problem of the open source groupware solutions is that synchronisation
with an offline client and a PDA device are not yet available. Most of those
solutions are based on programs written in the language PHP Hypertext
Preprocessor (PHP). That means there would be
a problem if such a solution would be used in huge enterprises, because PHP was not designed to provide scalable
applications, but to provide an easy programming environment for quick
development [HULL].
But that should really become a problem when a company with 200
workstations is using all applications of a PHP
based groupware solution. In OM, only the calendaring application would be used,
and a maximum of 50 workstations is accessing the groupware server at the same time. A lot of calendar servers
that have their own client or support Outlook
as client, also provide web interfaces, e.g.
Sun Calendar Server, Novell Groupwise, Samsung Contact and
Suse Mail Server. The open source solutions PHProjekt,
phpGroupWare and moreGroupware are described below, TWIG and Tutos are not
very different from them. phpGroupWare is an exception from the other open source solutions because it has a
really good software architecture. phpGroupWare has the potential to
become a real groupware server that does not only provide a web
interface. This will be described later in more detail. The BSCW system is developed by the German National
Research Center for Information Technology (GMD). BSCW stands for "Basic Support for Cooperative
Work". It is a commercial product, and provides web based group
calendaring and other group supporting applications. The GMD also provides
free accounts on their Internet server. One other example of a commercial
server in this category is ScheduleOnline.
Its advantage is that it provides Outlook and PDA synchronisation, and the server runs on Linux, without requiring a
special email server software. Those are the common problems
with other commercial solutions, which fail in one or two of the mentioned
topics.
PHProjektPHProjekt is in its third version, and it seems to be an
established webbased groupware
application. The leader of this project is Albrecht Günther. The problem
is that there are no published goals to improve it more and more, and the
ongoing work is not documented. For example, there is the requirement of
synchronisation with PDAs posted on the website
for months, but it seems that nobody is working on it. There is no import
or export functionality of calendar items
at all. There is a product called phpOrgaSync that is able to
synchronise Outlook and PHProjekt. It is freeware, that means it is
available for free, but the sourcecode is not
under an open source licence. So there
is no chance to deal with bugs: If it was a commercial software, there
would be a contractor that has to ensure the usability of his sold product
by providing bug fixes. If it was open
source software, there is the chance for everyone in the users community
to find and eliminate the bug and publish the
bugfix on the Internet. But with freeware, the user has no rights besides
being allowed to use the software.
phpGroupWareThis project has not yet reached the 1.0 release
stage, but it is already a program that needs to be taken serious. It is
led by a team of 5 people. That ensures that the project will be pushed
forward even if not all members of the leading team are working on it. The
problem with open source projects is,
that a lot of the developers and the team leaders are only working on the
project during their leisure time. That means if there is a hard time at
work or the family requires more attention, the open source project which is just a hobby
will be the first to be neglected. But the propability of the project
being stopped is smaller when there are several people in the team,
because then responsibility is split up, and others can push the project
forward. The phpGroupWare software has a clean design, which is
necessary because the project claims to provide not only a web based groupware solution, but a groupware Application Programming
Interface (API) that will be usable also for
other applications and in the future for other clients. The phpGroupWare API is clearly divided from the applications, and
supports any kind of groupware
applications that can take advantage of the functionality provided by the
API. Even inside the applications, the code
concerning the user interface is clearly seperated from the business
layer, and from the storage layer. This modularisation combined with XML RPC or SOAP functionality allows other programs in all
kinds of programming languages to request services from the phpGroupWare server. More information about the
phpGroupWare API is given in chapter 5. The
goal is to port the phpGroupWare project to another language than PHP. Especially in environments where only
calendaring services without a user
interface are required, PHP does not provide the
best scalability.
moreGroupwareThis project is supported and led by a company
called "Morelogs" who wanted to create their own webbased groupware solution. It is not finished yet.
The advantage of an open source
project being supported by a company is that there is money brought into
the project, by giving people time to work on the project during their
payed worktime. But the general problem with such a situation is that the
communication between the developers inside the company must be public, so
that other developers from the outside are able to participate in the
work.
4.3.4 Servers that replace
ExchangeThe integrated solutions as well as the servers providing a web interface were already
covered above. This chapter now shows servers that are aiming to simulate an Exchange
server that is able to deal with Outlook.
Samsung ContactHewlett-Packard developed a product called
OpenMail, which included Outlook support and group calendaring. It was
bought by Samsung, renamed to Samsung Contact, and is now maintained by
them. Samsung is actually using the program in their own offices. The
product consists of proprietary server parts
and a special MAPI connector for Outlook.
Oracle Collaboration SuiteIn July 2002, Oracle also published
their plans of entering the collaboration market. They bought the company
Steltor with their product CorporateTime which is a group calendaring
solution. Oracle is now working on the Oracle Collaboration Suite which
will be based on Oracle's application server
and database server. The goal of Oracle is
to support Outlook so that people don't need to change the client software they are used to.
Open Source Exchange
ReplacementsThe open source
community always has the goal to replace commercial products by free products that can be improved and be used by
everyone. For there is no competition but cooperation between several open source projects, it makes sense to
find standards so that the products can exchange data and provide
functionality to each other. One of the first solutions to configure
Linux to work with Outlook and provide Email
and Calendaring was developed by Kevin Erickson ([ERICKSON]
and [JOHNSON_MEAD]).
He only used open source software. One
disadvantage of his proposal was that he did not provide a MAPI connector tool, so he only could realise Free/Busy group calendaring and email server
functionality. Following Ericksons case study, some companies built
their own packages of existing open
source programs and published the scripts and installation routines either
under an open source or commercial
licence.
Bynari Insight The
company Bynari had the goal to develop a MAPI
connector that uses standards so that their Bynari Insight Server could provide also shared folders etc.
to Outlook [ADELSTEIN].
This connector is called Bynari Insight Connector. It is a MAPI compliant software and enables Outlook to
communicate with the server that provides
the groupware functionality. The Bynari
Insight Server is a commercial server that consists mainly of open source parts, e.g. the email server and
directory server and so on. But the linking
parts are not published.
Bill
Workgroup The company Neuberger & Hughes also follows the same
idea with its product Bill Workgroup Server.
The difference is that they develop the server under an open source licence, and only sell the MAPI connector software.
Kolab Another project in this category is the
Kolab project, they also want to build a Linux based server that provides Microsoft Outlook with the
same services and functionality as the
Microsoft Exchange server. The difference is
that Kolab is open source and should
also work with a KDE client. But the Kolab server also requires the commercial Bynari
Insight Connector when Outlook should be used as client. The disadvantage of Kolab is that it
still uses TNEF as the format for saving
messages and calendar items, because the
Bynari Insight Connector does not convert the data to a standard format,
e.g. iCalendar. At least, TNEF is well
documented and therefore it is possible to write Linux clients for the Kolab server. The Kroupware project group modified
the existing KDE PIM applications to be able to
use the Kolab server.
4.4 SynchronisationIt was already mentioned with some programs'
descriptions how they support synchronisation, or if they use special
tools to maintain several sets of data on several clients. The best solution would allow
synchronisation of the server with the PDA and some kind of offline client, that also works in disconnected mode.
Generally speaking, there are three ways to synchronise PDAs:
- Synchronisation of the PDA with the client program.
- Synchronisation of the PDA directly with
the calendar server
- An extra synchronisation server
manages all synchronisation between the different client tools of the user: PDA, web interface, and one or several
workstation clients.
Microsoft and
Palm have 2 different standards of synchronisation. Devices running
Windows CE use the Microsoft ActiveSync technology, and Devices with Palm
OS use the Palm HotSync technology. So it is required that a calendaring
client or server provides one conduit for every PDA
operating system, and it becomes even more complicated taking the other
mobile devices, e.g. mobile phones, in consideration. Palm provides
Palm Network Hotsync that allows synchronisation with a remote server that can be accessed over a network [PALM_NETSYNC].
Microsoft offers the Mobile Information Server [MICROSOFT_MI],
that will be integrated in the next major upgrade of Exchange [CAIN].
There is also a number of synchronisation servers, but this is again no place for
investigating them.
The reader is referred to [BUCHMANN]
to learn about the Sync4j project. This project provides frameworks to
develop SyncML clients and servers, and is based on Java.
5 OM AND GROUPWAREThis chapter now deals
specifically with the needs of Operation Mobilisation. The current
situation is investigated, the requirements of OM
are collected, and the products discovered in the previous chapter are
ordered again, now concerning the requirements of OM. 5 choices for suitable solutions are given, and
in the end one of these options is investigated more, and a prototype of
the modifications to this program is described.
5.1 Analysis of Requirements in OM concerning
Groupware
5.1.1 Current SituationAt the moment, OM
are still working on standardising the use and the structure of the
computer and network systems in their offices. Some procedures are not
computer supported at all. The OM Standard Linux Server,
which is used by all offices except the ships, provides email functionality, access to the web, a backup
system, shared diskspace on the server, and
some other helpful services. Sharing
documents is possible by using the shared diskspace on the server. But there is no version control or log
of modifications. Mailing lists
are mainly used globally, so a solution based on the OM Standard Linux Server is
not possible, because the servers are not
always connected to the Internet. At the moment, the free solution of an Internet mailing list provider is used. There
is a worldwide intranet for the whole organisation, and each office has
its own local intranet as well. The local intranet is not standardised.
In the Carlisle office, the intranet provides a readable resource calendar, e.g. for laptops, mobile phones and
other resources. The calendars of some
important persons in the office are also available with read access. There
are persons who are responsible to manage these calendars. There are also printouts of calendars for every month with the birthdays
of the staff in that office and details for events during the month. The offices on the
ships use a Microsoft Windows server instead
of the OM Standard Linux
Server, and the people on the ships got very used to have Microsoft
Exchange for scheduling. They don't want to switch to the OM Standard Linux Server
because there is no group scheduling available at the moment. But it would
be better for OM to have a centralised
development team of the server system, and
only one system administrator in each office. The goal is to have the same
linux server in each office. That allows a
standardised training of system administrators and helps the Carlisle
Linux team to support them when there is trouble with the system. At the
moment, the ships need their own specialists for the Microsoft solution,
while the servers of the other offices can
be maintained by normal system administrators without special development
or adaption skills. So both the ships and the Carlisle office have
their own solutions for calendaring. But there is no OM standard for group calendaring, and offices
without the necessary skilled staff don't have group calendaring at all.
5.1.2 The RequirementsThe list of requirements can be found in
the appendix. The requirements were collected via email from the people in the offices that are
responsible for installing and administrating the local computer network,
and other developers working for OM. That is the
origin of most of the requirements. Some other requirements came from the
managers of the Linux team who are responsible for the development of the
OM Standard Linux
Server. It turned out that some requirements did not belong to the task
of providing OM with a groupware solution. The definition of this
solution had to be made, and finally only a groupware calendar was left. All email concerning requirements were postponed, the
only requirement to the calendaring solution was that it has to support
the existing mail functionality of the OM Standard Linux Server.
The requirement of a centralized email address book was already met by an LDAP solution. The main requirements were long
term reliability of the solution, and the price of it. For OM is a charity organisation that only exists from
donations, they have to ensure that the given money is not wasted but used
in a sensible way. A clear requirement was that the solution had to be
integrated in the OM
Standard Linux Server. The requirement for the client side was to support Microsoft Windows
because this is the OM standard operating system
for the workstations.
5.2 Matching the Requirements with the Market StudyThe products
were ordered according to the requirements list. So products that did not
support a Linux server or did not provide
group calendaring at all were put to the end of the list. There were
the following categories by which all solutions were grouped:
- suitable: This product fulfils the requirements of OM
- could be suitable / depends on other solution: This product
could be fine, but it requires another product which is not available
yet. The two programs together would fulfil the OM requirements.
- promising, but still under development: The product's
requirements list would probably fit the OM
requirements, but the work on it still is not finished. There are
already non stable testversions. There is the hope that the products in
this category soon will be ready for real use.
- need to be considered concerning the costs: These products
would fit the requirements of OM. The selling
companies were asked for discounts, and OM have
to decide if it makes sense for them to pay for one of these solutions.
- even with discounts too expensive for OM: These products would fit the requirements
of OM. They first were in the category "need to
be considered concerning the costs", and after the next stage (asking
for discounts) they joined this category. Even with discounts these
products were still too expensive for the budget of OM.
- experimental: The difference to the "promising" category is
that these products are far away from a stable release, and it is unkown
how and when they will be usable.
- missing synchronisation support means that there is no way to
synchronise with an offline client, and/or
no way to synchronise with a PDA directly or
with a client that can synchronise with a
PDA.
- outdated: The product is not available anymore.
- not enough reliability of support: Either the developer
community is too small, or the product is free but not under an open source licence
- not suitable for OM: that means that
either calendar functionality is
missing, or the Linux server is not
supported, or the Windows workstations are not supported.
- too difficult to integrate with current OM solution: The products in this group
provide all functionality that is expected from a mail and groupware server, and they would replace the OM Standard Linux Server.
But then all the preconfiguration need to be developed again, so that
the solution would have the same easy installation and maintenance than
the OM Standard Linux
Server. That was not an option.
5.3 Analysis Result: Ordering by DecisionThis is the list of the
same products listed in the end of chapter 4, but now the products are
ordered by the decision which was met based on the requirements of OM. For more details about the solutions, please
refer to the appendix.
suitable none could be
suitable / depends on other solution [PHPGROUPWARE]
phpGroupWare; [MICROSOFT
OUTLOOK] Microsoft Outlook promising, but still under
development [KOLAB]
Kolab / Free Software Groupware Project; [AXISSYNC]
AxisSync need to be considered concerning the costs [SAMSUNG
CONTACT] Samsung Contact; [SCHEDULEONLINE]
ScheduleOnline Intranet even with discounts too expensive for
OM [WEBEVENT]
WebEvent Team missing synchronisation support [SQWEBMAIL]
Courier MTA / SqWebMail; [MOREGROUPWARE]
moreGroupware; [BSCW]
BSCW; [PHPROJEKT]
PHProjekt; [TUTOS]
Tutos; [TWIG]
TWIG; [TEAMWARE
OFFICE] Teamware Office; [MOZILLA]
Mozilla Calendar; [SKYRIX]
SKYRiX Web Groupware; [XENTRIX]
intisoft Xentric groupware server; [MAILSTUDIO]
MailStudio Calendar Server; [CYBERSCHEDULER]
Crosswind Cyberscheduler & Synchronize & CyberSync; [GROVEWARE]
Groveware CAL/RM 2000SE; [GHC]
Great Hill Corporation: Calendars for the web; [HTMLCAL]
HTMLCAL not enough reliability of support [BILL
WORKGROUP] BILL Workgroup Server; [PHPORGASYNC]
phpOrgaSync; [SYNCBUILDER]
SyncBuilder Java Framework; [ERIDU]
eridu; [PROIEKTOR]
Proiektor experimental [ORACLE
COLLABORATION] Oracle Collaboration Suite; [OPENOFFICE.ORG]
OpenOffice.org Groupware; [UW]
UW Calendar Information Center; [CHANDLER]
Chandler outdated [SUN
STAROFFICE] Schedule and Schedule Server - StarOffice; [NETSCAPE
CALENDAR] Netscape Calendar Server not suitable: no linux server
support [NOVELL
GROUPWISE] Novell Groupwise; [MICROSOFT
EXCHANGE] Microsoft Exchange; [SUN
CALENDAR] Sun Calendar Server; [LIVELINK]
Opentext Livelink; [HYPERWAVE]
Hyperwave Team Workspace; [CONTACTOFFICE]
ContactOffice; [CALDERA
VOLUTION] Caldera Volution Messaging Server; [APPOINTMENTQUEST]
Appointment Quest; [APPOINT.NET]
appoint.net; [CALENDAR
INTERNET] Calendar Internet; [CALENDARS.NET]
Calendars.net; [CALENDARSERVER.COM]
CalendarServer.com; [DAYPOINT]
FrontOffice Communications: DayPoint Enterprise; [ECAL]
eCal M1; [HUNTCAL]
www.huntcal.com; [E2DO]
www.e2do.com; [LOCALENDAR]
www.localendar.com; [SMARTCAL]
www.smartcal.com; [SUPERCALENDAR]
www.supercalendar.com; [YAHOO
CALENDAR] www.calendar.yahoo.com; [MDAEMON]
MDaemon not suitable: no windows workstation support [XIMIAN
EVOLUTION] GNOME Ximian Evolution; [KDE
PIM] KDE PIM application suite (with KOrganizer) not suitable:
no group calendar included [ICQ
GROUPWARE] ICQ Groupware; [PHPCOLLAB]
phpcollab; [BROWNBEAR
CALCIUM] BrownBear Calcium Web Calendar Server and
TripleSync too difficult to integrate with current OM
solution [BYNARI
INSIGHT] Bynari Insight Server; [MEETINGMAKER]
Meeting Maker; [SUSE
MAIL] Suse Mail Server; [SUSE
GROUPWARE] SuSE Linux Groupware Server with Lotus Domino; [LOTUS
DOMINO] (IBM) Lotus Domino / Notes
5.4 The Options for OMThere are several
possibilities: Option 1: phpGroupWare & AxisSync At the
moment, phpGroupware has no support for data exchange and synchronisation
with an offline client. But in contrast to
the other free web based solutions, it is not
too hard to add new functionality to the program.
There are already import and export functions for address book items. It seems to be one of
the most promising projects that will have a future. So it is useful to
invest some effort into the project. The functionality that could be
added and was prototyped for this diploma thesis is the import and export
of calendaring data from and to files in the Comma Seperated Values
(CSV) format, that can be imported and exported
by Outlook as well. A prototype for Palm synchronisation also exists
with the tool AxisSync, but it is not stable yet. The export of
calendaring data from phpGroupware to a Palm device is working already,
but the other direction is still missing. But work is going on with the
development of this tool, and in the end of October there was a new
release. The solution is not ready at the moment, but approximately in
autumn 2003, this product will be the first choice of free web based group calendaring solutions. But
the synchronisation with an offline client
won't be very comfortable. Option 2: Kolab This server is free, but
the Bynari Insight Connector need to be bought. But it provides the full
Outlook functionality, and therefore also PDA
synchronisation is available. At the moment the Kolab server is in the testing and bug-fixing phase,
so it is not ready yet. It should be stable in spring 2003, and it will
provide a cheap but comfortable solution. Option 3: Schedule
Online This product is commercial and provides web based
calendaring with additional software for synchronisation with Outlook and
PDAs. It is expensive, and cannot provide
the conveniences of a solution that fully integrates Outlook.
Option 4: Samsung Contact This product is also commercial
and expensive, but it provides both a web interface and full Outlook
integration. The PDA synchronisation is provided
by Outlook. Option 5: Free Internet Calendaring server The
best solution in the future would be a free calendar server
in combination with a free calendaring client that both support Internet calendaring.
The calendar server could be an extension of the current
phpGroupWare API, or a program based on a future
version of the libical library, which is an implementation of the Internet
calendaring standards. The client could be
the Mozilla Calendar. It is hard to
estimate when this solution will be ready, because the Internet
calendaring standards are not confirmed yet. But in 2004 there could
already have been started a new era of calendaring with some standards
based free calendaring servers and clients.
If there had been more time,
it would have been interesting to investigate these products even more and
to compare their functionality in more detail. The Kolab server was not installed during this diploma
thesis, because it was still in Alpha testing. There was also no time
for the installation of Schedule Online, but the functionality could be
checked in the online demo. The installation of Samsung Contact was
successful, and Outlook could be used with all its features. There were
problems with installing the web interface which is written in Perl, so
that would need further investigation. It was also not fully tested if
there could be problems with the email server of the OM Standard Linux Server.
phpGroupWare got more attention, because the code was very
interesting. But also here, the functionality was not investigated in all
detail. However, some information can be found in the appendix with the
description of the solutions.
5.5 phpGroupWareThis chapter describes the phpGroupWare project
in more detail. A technical insight into phpGroupWare and its applications
is given, by investigating the calendar
application and explaining the prototype that was developed in this
diploma thesis.
5.5.1 The Structure of phpGroupWarephpGroupWare is organised in a
3 layer architecture. That means that the user interface, the business
layer with the logic and the data storage are seperated from each other.
That allows the phpGroupWare project to have the goal of becoming a groupware server that not only provides a web interface.
There could be a specialised WAP interface that
allows also clients with small screens, e.g.
mobile phones, to make use of phpGroupWare. XML-RPCs or SOAP could be used by client applications to access the phpGroupWare
server and request services
from it. There is the idea for the future to port the phpGroupWare
project to a real application server and use
XML for the representation of data and queries
[HULL].
To understand the modularisation of phpGroupWare, it is helpful to
investigate the structure of the directories and the names of the files in
which the source code is represented: In the root directory of a
phpGroupWare installation, there is one directory for each application.
Furthermore, there is a directory called "phpgwapi" which holds the
classes that provide all necessary functionality for phpGroupWare to be a
framework for the development of groupware
applications. It provides interfaces to e.g. the formatting of data for
specific browsers, the access of data in different databases, account
management, file access, and much more. Just look in this directory and
read through the different files. There are several other special
directories that don't just hold normal applications, e.g. xmlrpc, soap, syncml-server, and the two directories with the setup
tool and the preferences application. All other functionality of
phpGroupWare is provided by several applications. Each application has
the following subfolders:
- doc
- help
- inc
- setup
- templates
| The "doc" folder should
provide some documentation for other developers, while "help" contains
information for the users, with subdirectories for several languages.
The "inc" directory is the most important folder of an application,
because the classes with the actual source code are placed here. There are
different types of files, according to their different tasks. There are
the classes that are responsible for the user interface, their name is in
the form "class.uiAPPLICATION.inc.php", while
"APPLICATION" stands for the name of the application or an important part
of the application, that is coded in this file. The files with a name like
"class.boAPPLICATION.inc.php" provide the
procedures with the business logic, and bo stands for business objects.
The "so" classes are responsible for the access to the data storage, which
is normally the SQL database. The "setup" directory holds all
information for the installation and upgrade of the application. There are
the language files with translations for all strings shown in the user
interface of the application. The information how to create or upgrade the
appropriate tables in the database is also provided in this directory.
Initial data, e.g. public holidays for the selected country, can also be
given here. The "templates" folder contains one default template
layout for the application. There should be one extra subdirectory for
each available template that provides a different screen layout.
The calendar application has two
additional subfolders in the "inc" directory, which are "import" and
"export". These folders hold files for the import and export of
calendaring information into and from the several file formats.
5.5.2 A Prototype for CSV
Import/ExportThe goal was to have at least synchronisation of
phpGroupWare with Outlook, because that would enable people to synchronise
their PDAs indirectly with phpGroupWare by using
Outlook as mediator. There is the hope that the AxisSync tool earlier
mentioned will become available and stable soon, that would make
synchronisation with PDAs much more easier.
It would already be a little help to allow synchronisation with
Outlook via CSV files. The following diagram
shows the normal composition of an application with its classes for the
user interface, the business logic and the storage parts. Furthermore the
modifications that were necessary to support CSV
files can be seen in this diagram.
fig. 5.1.:
Class diagram of the Calendar Import/Export
At the moment, the
socalendar_ class is based on SQL storage. The uiXport, boXport,
import_conv and export_conv classes were added to create the prototype for
the CSV support. The phpGroupWare address book application already provides
CSV functionality, and so the names and the
structure of the classes were taken from there. Also the algorithms for
storing and loading CSV data with using a buffer
were taken from there. There was already a button for the import of
iCalendar files. For a good design it would be necessary to change the
structure of the classes, i.e. the functionality of the uiiCalendar class
would be integrated into uiXport. But because there was only the goal to
provide a prototype, the structure of the classes was not changed.
CSV ExportThe uiCalendar class displays
the calendar application, and uses the
colors and styles of the given theme and the layout of the current
template. The uiCalendar class creates an business object, which is an
instance of boCalendar. There is the function "uiCalendar.footer()" that
needs to be modified so that beside the existing "import" button another
button with the name "export" is displayed at the bottom of the calendar application. The template of this
function is saved in the file "templates/default/footer.tpl". Another
variable needs to be inserted there for the second button: <!-- BEGIN blank_row --> <td valign="top" width="10%"> {b_rowImport} </td> <td valign="top" width="10%"> {b_rowExport} </td> <!-- END blank_row --> The
button is inserted in the user interface in "uiCalendar.footer()" with
these lines: $var = Array( 'submit_button' => lang('Submit'), 'action_url_button' => $GLOBALS['phpgw']->link('/index.php','menuaction=calendar.uiXport.export'), 'action_text_button' => lang('Export'), 'action_confirm_button' => '', 'action_extra_field' => '' ); $this->output_template_array($p,'b_rowExport','form_button',$var); If
the button is clicked, the associated action ("menuaction") displays the
user interface that is defined in the function "uiXport.export()" and
shown in the following figure.
fig. 5.2.: The
calendar export screen
The user can choose from what period of
time the calendar items should be
exported. He can specify the start date and the end date of this period.
The export() function looks in the "calendar/inc/export" directory for any files,
and expects that each of them holds a class called "export_conv". This
idea helps to provide export functions for several file formats, e.g.
different language versions of Outlook CSV files.
The user selects the file format of the exported calendar data by selecting one of the
options. The class uiXport has an object of the class boXport, so when
the user clicks the "Submit" button, the function "boXport.export()" is
called. In boXport there is also an object of the class boCalendar, and
the function "boCalendar.store_to_cache($period)" returns all calendar items in the given period in an
array. Now for every event and every attribute
of an event, the details have to be given to
the current export_conv class. This class adds
all information in the correct format to a buffer. In the end,
"uiXport.export()" returns this buffer as a file to the browser of the
user. The following sequence diagram illustrates this process:
fig. 5.3.:
Sequence Diagram for the Calendar Export
The prototype is able
to export the following attributes of an event: The title or subject, the start and the
end date, the name of the owner or organiser, the name of the participants, the description, the
location, the priority and finally the information whether this event is private or not.
CSV ImportThe import functionality was
not written in the uiXport class, because there was already an import
button for iCalendar files on the front screen of the calendar. As already mentioned before, some
functionality was inserted into the uiiCalendar class in order to change
the existing classes as less as possible. In the following screenshot
the coexistence of the two possibilities of import is shown.
fig. 5.4.: The
calendar import screen
The way of using different import file
formats is the same as with the export process described above. At the
moment, an event on the same day and with the
same title like the imported event is replaced
with the imported event. For more about this
topic see below. The prototype imports the same fields of an event as it exports, but the owner is not yet
resolved. The current user becomes the owner of the imported event. Participants are not imported at all at the
moment.
Known Problems and Future ImprovementsThere are some topics that
are not too difficult and would improve the import/export
extension: The export functionality should be extended by also
exporting the names of the participants
of a meeting and the category to which this meeting belongs to. The
classes involved in the user interface of the import functionality should
be redesigned. Perhaps the people of the leading team of phpGroupWare
should be asked first. The several file formats should be better
integrated as well, e.g. should the icalendar format also appear in the
drop down box with the Outlook CSV file formats.
At the moment the categories, the participants and the owner are not resolved
in the import process. That should be realised, but it requires that
Outlook uses only user names that have accounts in phpGroupWare.
There are also problems that limitate the import and export
functionality with CSV files: One problem is
that recurring events are split up by the CSV export and import because there is no way to
save information about recurring events in the
Outlook CSV file format. Another problem are the
missing identification numbers of events in
the Outlook CSV file format. That means that the
import algorithm can only check for attributes, e.g. the subject, in order
to find out if an event already exists in the
calendar. But because the subject is not
unique there can be different events with the
same title. And if the subject is changed, there would be 2 events. A solution would be to rely on two or
more attributes, e.g. start date and title, and if at least one of them is
fitting to an existing event, this event is replaced by the imported event. But that can still always cause trouble.
5.5.3 Administration of phpGroupWare via XML-RPCThis is just
a proposal how to integrate phpGroupWare into the OM Standard Linux Server. It
should also show a bit of the XML-RPC functionality of phpGroupWare. The OM Standard Linux Server
provides an application based on text menus that helps system
administrators to add and edit users. This
application is called "sysadm", and it is programmed with Perl scripts. It
would be useful, if the creation of a user in phpGroupWare could be
integrated with the creation of a Linux user in "sysadm". There is an
XML-RPC implementation
for Perl called Frontier::RPC which was written
by Ken MacLeod. The "phpgwapi/doc/xmlrpc" directory also contains a file
"perl.txt" which describes how to log into the phpGroupWare server with Frontier::RPC. Only to get a quick overview of the
opportunities of XML-RPC in phpGroupWare, the following example shows
how to access phpGroupWare from an external PHP
script, using the functions of "XML-RPC for PHP" from Edd
Dumbill. This function logs into the phpGroupWare server given in the "domain" variable, and uses
the XML-RPC client given in the "client" variable. The client has already got the IP address of the server machine before the execution of the
login function. function login(&$client, $domain, $username, $password) { $sessionid = -1; $kp3 = -1; $loginparams=new xmlrpcval( array("domain" => new xmlrpcval($domain), "username" => new xmlrpcval($username), "password" => new xmlrpcval($password) ), "struct"); $msg=new xmlrpcmsg("system.login", array($loginparams)); $response = $client->send($msg); $value = $response->value(); if (!$response->faultCode()) { $value = $value->scalarval(); if ($value['sessionid']) { $sessionid = $value['sessionid']->scalarval(); } if ($value['kp3']) { $kp3 = $value['kp3']->scalarval(); } $client->setCredentials($sessionid, $kp3); } return $sessionid != -1; } "system.login"
is the method which is called on the server,
and the parameters for the username and password are also delivered.
This is the XML message that is sent by this
function: <methodCall> <methodName>system.login</methodName> <params> <param> <value><struct> <member><name>domain</name> <value><string>localhost</string></value> </member> <member><name>username</name> <value><string>timop</string></value> </member> <member><name>password</name> <value><string>mypassword</string></value> </member> </struct></value> </param> </params> </methodCall> The
answer looks like this: <methodResponse> <params> <param> <value><struct> <member><name>domain</name> <value><string>c.ict.om.org</string></value> </member> <member><name>sessionid</name> <value><string>16d7659129b54e81f282fc36ff839191</string></value> </member> <member><name>kp3</name> <value><string>3c125da178c4b53f360451252da03997</string></value> </member> </struct></value> </param> </params> </methodResponse> At
the moment, the XML-RPC functionality is not added to every class. In
the future, there should be a function called "list_methods" in every
business object class. This function returns the names of all the
available XML-RPC or
SOAP methods. For creating users using the
XML-RPC interface, the
file "admin/inc/class.boaccounts.inc.php"
provides the function called "rpc_add_user". This function is not working yet. There
was no time to find out the problem. But it should be possible to add a user with all the details, i.e. first name,
last name, accountid, password, etc., as it is in the "boaccounts.add_user" function.
6 SUMMARY AND OUTLOOKJust to finish this diploma thesis, this chapter
gives a short conclusion about the current situation of the group
calendaring market and shows the future functionality that will be
required from groupware applications. In
the end, there are some personal impressions about the past work for this
diploma thesis.
6.1 The Current SituationAfter investigating the existing and
coming standards and the available solutions for group calendaring, the
following conclusions can be made: At the moment, there are convenient and
comfortable solutions, but they are commercial and not always based on
open standards. Especially concerning the calendaring and synchronisation
standards, this would even not be possible, because not all standards are
finished and confirmed yet. The open source community also provides
several solutions, most of them are webbased. The huge advantages of a web
based solution are the platform independence and the maintenance-free clients. But
there is no free groupware server that is able to serve all three types of
clients: a webbased interface, an offline client and PDAs. Own
effort needs to be brought into each of these projects, and each company
or organisation has to decide if this effort is worth the time and money
that otherwise could have been spent on a commercial solution. The
other possibility, besides spending money or programming effort, is to
wait for the coming times of free and standard
based calendaring solutions and just take it when it is ready. A
comparable situation is the huge amount of free
email servers
and clients that can be mixed with each
other because they are based on Internet standards.
6.2 The Future of Groupware
FunctionalityOne thing that should be considered is that it would be
easier for the users if groupware
functionality would be integrated in one user interface. It would help
with learning how to use the system because there is not a different user
interface for each application, and it would make communication via calendar, email,
instant messaging or video conference even more normal.
The goal
of integration is also pursued by the two companies that are the leaders
in the collaboration market, IBM/Lotus and Microsoft. There are two texts
which each describe the functionality expected of the coming releases:
Cain writes about the future of Microsoft Exchange [CAIN],
and Olsen and Hawkins give an outlook to the next releases of IBM/Lotus
Notes/Domino [OLSEN].
Both companies mention the term Contextual Collaboration which exactly means the
integration of different applications that are delivered as components.
Microsoft plans that third parties can use Exchange services and content in their applications.
Microsoft also will improve the performance in two areas: The required
bandwidth should be reduced, which is an increasing problem because of the
growth of email traffic and storage.
Furthermore the storage on the server should
be moved from the current solution of a special database to the SQL server. Lotus Domino will move closer to
the application server of IBM, which is
called Websphere. The goal is to develop a new server program called NextGen which provides a
J2EE platform and web services. It will coexist with Domino for a
time, and finally replace it. Lotus Sametime will become a real-time
collaboration server. Another topic for
the future is Pervasive
Computing: Both servers will become more
aware of pervasive devices and allow synchronisation and provide data
access for PDAs, mobile phones, and other mobile
devices.
6.3 Personal ImpressionsIt seems that there are a lot of open source projects in progress, and it
was interesting to watch the ongoing work and take a snapshot of the
current situation. A better understanding of how open source projects work could be
achieved by realising their problems and success. It was interesting to
read the mailing lists and by that to
be a passive part of some open source
projects and the group of people that are formulating the Internet calendar standards. It was good to have
the chance to work without a lot of constraints on an own project, with
the need to organise the time and work and to be finished on a fixed date.
A huge amount of information was collected during the work for this
diploma thesis: The links to Internet articles, the details of the
solutions, and the text of the diploma thesis itself needed to be managed.
This was achieved by storing all the information in XML files. Some PHP
scripts formatted the data and printed it to HTML documents. An Word macro
was developed to help formatting the printable text of the diploma thesis.
These scripts can be found on the enclosed CD-ROM, together with the
online version of all information.
7 APPENDIX
7.1 Table of Requirements
category |
priority |
requirement: title & description |
profiles, user habits, location of mails |
2 |
people use different computers at different times to access
their messages Any user must be able to log into any
workstation, with all personal calendar information & settings
following him
|
3 |
configuring users settings add or administer a users
settings without using his account and password
|
import/export of data |
2 |
exchange with handhelds Conduit to PalmOS
Interfaces needed both ways: - data from Palm Pilots/Outlook
to "groupware" - data from "groupware" to Palm Pilots/Outlook
need to exchange at least calendaring information.
|
2 |
disconnected mode / offline client needed for
travellers In "disconnected" operation, a client connects to the
server, makes a copy of all user account information, and then
disconnects from the server, later to reconnect and resynchronize
with the server. it mainly has to work with the personal
calendar information
|
Calendaring / Booking |
2 |
Allows calendars to be shared Viewing others
Calendars, but not changing them
|
3 |
calendar managed by other person permit other persons
to manage personal calendar (e.g. Directors Secretary managing his
calendar)
|
3 |
organizing a meeting the one organizing a meeting
needs to be able to ask the system to find a time when the invited
persons are all free and to then book (or suggest) a meeting...
|
3 |
common (not personal) calendars absences (see more
below) meetings current events
|
4 |
absences annual leave booking, so system that
handles - person requests leave - manager approves
|
3 |
Resource Booking (special kind of common
calendar)
types of
resources: vehicles equipment rooms office equipment
(e.g. projector, mobile phones etc)
resources need to be set
up by the administrator each resource has an assigned manager
that approves the booking if there is a more urgent request this
manager can cancel the previous booking, an email is send to the
affected user
support multiple resources of the same type
|
requirements from Linux Project Team |
1 |
long term reliability of support The support of the
solution needs to be guaranteed by either a reliable company or an
active user/developer community.
|
2 |
costs The costs of the solution must be affordable by
OM. The costs consist of both the costs of the software licences
(server and client software) and the cost of maintenance
|
2 |
linux server support The server of the groupware
solution has to run on the OM Standard Linux Server to provide a
common solution installed on one machine.
|
2 |
windows workstation support The client of the
groupware solution has to run on Microsoft Windows for that is the
standard operating system in OM.
|
4 |
POP3/SMTP support the solution needs to support the OM
Mail module (based on sendmail) for eMail Clients that use POP3/SMTP
(e.g. Pegasus Mail, Outlook)
|
other types of communication |
4 |
Voting Voting capability (Send out a survey, or
invitation, and people can click a button to reply yes / no,
accept/reject etc)
|
4 |
discussion list management - notice board (e.g. items
for sale/loan)
|
7.2 Table of Solutions
APPOINT.NET |
appoint.net |
Home |
http://www.appoint.net/ |
category |
service provider, webbased service provider
|
decision |
not suitable: no linux server support |
|
APPOINTMENTQUEST |
Appointment Quest |
Home |
http://www.appointmentquest.com/ |
category |
service provider, webbased service provider
|
decision |
not suitable: no linux server support |
|
AXISSYNC |
AxisSync 0.5.0 Alpha |
Home |
http://www.axisgroupware.org/ |
other links |
http://docs.axisgroupware.org/index.php?page=AxisSync http://savannah.gnu.org/projects/axis/
|
category |
sync, synchronisation of palm and phpgroupware client:
Palm Hotsync and Netsync server: phpgroupware, pgsql,
coldsync |
licence/costs |
opensource (GNU General Public License (GPL)) costs:
free |
documentation |
http://docs.axisgroupware.org/index.php?page=axissyncREADME |
marketing statement |
Axis Groupware is a groupware suite for workgroups and
enterprise, built on phpGroupWare. Axis Groupware is not a fork of
phpGroupWare, but rather a custom distribution of phpGroupware
focusing on high quality, production deployment. AxisSync brings
palm synchronisation to phpGroupware. |
installation |
Download: http://axisgroupware.org/axissync/axissync-0.5.0.tar.gz official
installation guide: http://docs.axisgroupware.org/index.php?page=axissyncINSTALL
|
functionality |
- data exchange: synchronizes palm / phpgroupware: memos,
address, calendar, todos
not all conduits are working yet
|
reliability of support |
2 developers; Alpha 0.5.6 was released in the end of October;
work is going on |
contra |
THIS IS AN ALPHA RELEASE! DO NOT USE THIS IN A PRODUCTION
ENVIRONMENT! |
conclusion |
Not all conduits are available yet. |
decision |
promising, but still under development |
|
BILL WORKGROUP |
BILL Workgroup Server 2.1.3 |
Home |
http://www.billworkgroup.org/billworkgroup/home |
other links |
http://developer.berlios.de/projects/bill http://www.n-h.com/ http://www.nlcom.nl/NLcom/US%20Site/
|
category |
Outlook/Linux, outlook in combination with a linux
server client: Outlook + MAPI Service Provider server: BILL
Open Workgroup Server |
licence/costs |
Server software is opensource (GNU General Public License
(GPL)), MAPI Service Provider is commercial, Outlook is
commercial costs: Outlook belongs to MS Office; 39 EUR per MAPI
Client |
documentation |
not available |
marketing statement |
N&H received more and more customer requests asking for a
independent workgroup server solution running under LINUX, but using
MS-Outook(TM) as the Client on the MS-Windows(TM) Desktop for use
with shared calendars and task lists, etc, and not limited to
e-mail. MS-Outlook(TM) uses a MAPI Service Provider to store
workgroup data centrally in MS-Exchange(TM) database or other 3rd
party messaging servers. Based on this, N&H decided to start
an internal project that implements a storage server that can run on
LINUX where different workgroup clients and other applications can
exchange workgroup data. BILL Open Workgroup Server is now under
the GNU public licence. |
installation |
Download: http://www.billworkgroup.org/billworkgroup/home/Download official
installation guide: http://www.billworkgroup.org/billworkgroup/home/Doc/BillInstallLinux
|
functionality |
- calendar: Outlook in workgroup mode, shared folders,
user needs to give others the permission to see his folder
with the calendar information
- email: outlook functionality; perhaps problems with
sendmail configuration of OM Linux
- other modules: -
- data exchange: palm synchronisation belongs to outlook
functionality
|
reliability of support |
N&H is a two man company, they sell the Easygate workgroup
server, and support it. The opensource Bill Workgroup Server is
part of the Easygate server, and is also developed by them and one
other person. The Bill Server was put under GPL in February 2002.
|
pro |
- |
contra |
main focus on small and medium sized workgroups: Bill has a poor
performance with more than 30 accounts. no big community or
company to support the product calendar functionality works just
with shared folders. To see another person's calendar this person
needs to give permissions to you. |
conclusion |
The supporting community of the BILL Server is too small, and
the Easygate Server with support is not suitable for OM, since this
is a standalone server and cannot be integrated with the OM Standard
Linux Server. |
decision |
not enough reliability of support |
|
BROWNBEAR CALCIUM |
BrownBear Calcium Web Calendar Server and TripleSync
3.7 |
Home |
http://www.brownbearsoftware.com/calcium/ |
other links |
http://www.brownbearsoftware.com/calcium/TripleSync.html
|
category |
webbased & client server: perl based, runs on
linux (e.g. Apache) |
licence/costs |
commercial costs: triple sync unlimited copies: $1,500;
Calcium: unlimited number of calendars, unlimited users, basic
email: $395.00 |
documentation |
see http://www.brownbearsoftware.com/calcium/docs/ and
http://www.brownbearsoftware.com/calcium/FeaturesList.html |
installation |
Online Demo: http://www.brownbearsoftware.com/calcium/demos.html Download:
http://www.brownbearsoftware.com/calcium/download.html
|
functionality |
- calendar: good repeating events;
can only invite
via email; can insert an appointment into several calendars at
the same time. But events are duplicated, change of event means
that every event needs to be changed: see in doc: Add to Multiple
Calendars Dynamic Calendar Merging: department calendars
detailed user settings for each user, watch/edit rights for
each calendar no conflict management, no comparison of busy
times
- data exchange: offline client available; synchronises
with pda's; Outlook CSV text files import and export
|
pro |
nice integrated solution of Handheld + Desktop + Web |
contra |
no real group calendaring; Desktop client has no access to
several calendars |
conclusion |
If it was for free, then it would be worth consideration. But
without real group calendaring but only multiple calendaring this is
not suitable. |
decision |
not suitable: no group calendar included |
|
BSCW |
BSCW 4.0.6 |
Home |
http://www.bscw.de/index_en.html |
other links |
http://bscw.fit.fraunhofer.de/
|
category |
webbased client: webbrowser, javascript server:
Linux / windows program, using Python and CGI |
licence/costs |
commercial costs: schools and universities receive royalty
free licences for educational purposes; others: e.g. 1000 user:
16.850,- EUR |
documentation |
http://bscw.gmd.de/bscw_help-4.0/english/ |
marketing statement |
The BSCW system supports collaboration by providing shared
workspaces over the Internet. A shared workspace allows storage and
retrieval of documents and sharing information within a group. This
functionality is integrated with an event mechanism to provide each
user with an awareness of the activities of others within the
workspace. It comprises numerous features, e.g., support for
threaded discussions, version management of documents, group
management, search features and many more. The system is designed
primarily to support self-organising groups. |
installation |
Online Demo: http://bscw.gmd.de/bscw/bscw.cgi User/password:
get your own free account Download: http://bscw.gmd.de/InstallUnixServer.html official
installation guide: http://bscw.gmd.de/InstallUnixServer.html
|
functionality |
- calendar: groupcalendaring works this way:
search
for a person, e.g. test2. insert this user into
addressbook create a folder, make it shared. invite member
now you can do: File New GroupCalendar but: you have to
invite the members that can see/use your calendar the other
person has access to the shared folder in his home window can
put persons together to a group can create roles and assign to
different people, for each shared folder shared calendar only
with permitted people. Can build group, permission
easy possible to create a public calendar, only for reading,
and permit specific users for changing.
- invitation: sends email to invited people,
even to people that are not members of the system
no
comparison of free time; every participant needs to confirm,
else the appointment is marked tentative
- private appointments: not possible in shared calendar
- repeating events: no repeating events
- resource booking: no selection of resources
- email: no integration of webmail, but uses sendmail for
invitations
- other modules: shared folders, shared documents,
addressbook, waste basket, clipboard, discussion forums
- data exchange: no open source, so there is no
possibility for creating an own synchronisation tool for palm or
outlook
supports export of event in iCalendar file; no import
of iCalendar files no export / import of vCard |
reliability of support |
The project was started in 1995 by FIT Fraunhofer, belonging to
GMD, the German National Research Center for Infomation Technology.
OrbiTeam Software GmbH was founded in summer 1998 as a spin-off
company of GMD. OrbiTeam offers support, maintenance and extensions
of the system. Since 1995 more than 800 BSCW Servers have gone
online. |
pro |
a lot of good calendaring and document sharing functionality
|
contra |
synchronisation is not provided |
conclusion |
palm and outlook synchronisation is not available |
decision |
missing synchronisation support |
|
BYNARI INSIGHT |
Bynari Insight Server 3.5.4 |
Home |
http://www.bynari.net/ |
category |
Outlook/Linux, outlook in combination with a linux
server client: Outlook+InsightConnector server: linux based
server software (uses Cyrus IMAP server, Exim MTA, and
OpenLDAP) |
licence/costs |
commercial (Outlook, InsightConnector, InsightServer) costs:
Insight Server Standard Edition 25 User Base Pack (Special priced
bundle package with Connector) = $600.00; 25 Additional Users
License Pack = $495.00 |
documentation |
http://www.bynari.net/UserManual35.pdf |
marketing statement |
Bynari's InsightServer provides a centralized messaging and
collaboration system running on Linux. It allows users to migrate
from installed and running Exchange servers to an open source, RFC
compliant model. With this program installed on a Linux server,
combined with the Bynari InsightConnector installed on client
workstations, users will be able to continue to use their existing
Outlook interface with very few changes. |
installation |
Download: http://www.bynari.net/downloads.html official
installation guide: http://www.bynari.net/insightserver35x_install.pdf
|
functionality |
- calendar: outlook functionality
- email: outlook functionality; uses Exim MTA instead of
sendmail: the configuration of exim is quite different to that of
sendmail.
- other modules: shared folders
- data exchange: palm synchronisation belongs to outlook
functionality
|
reliability of support |
company was founded in fall 1998. InsightConnector and
InsightServer were first released in 2000. a lot of detailed
documents show the reliability of the company and the product |
pro |
cheaper than Microsoft Exchange |
contra |
email server causes problems with sendmail |
conclusion |
That would mean for OM to change the current sendmail
configuration to exim. |
decision |
too difficult to integrate with current OM solution |
|
CALDERA VOLUTION |
Caldera Volution Messaging Server Email Server Release
1.1 |
Home |
http://www.caldera.com/products/volutionmsg/ |
other links |
http://www.caldera.com/products/volutionmsg/datasheet.html
|
category |
Outlook/Linux, outlook in combination with a linux
server client: outlook server: Platform: Caldera OpenLinux
Server 3.1 or Open UNIX 8 Release 8.0 with Linux Kernel Personality
|
licence/costs |
commercial |
documentation |
http://docsrv.caldera.com:8457/en/Navpages/MsgDoc.html |
marketing statement |
Volution Messaging Server is designed to be compatible with the
Microsoft Outlook and other mail clients. It comes pre-configured to
support mail, LDAP address book, and busy-free calendar features of
this popular mail reader. Major components of Caldera's Volution
Messaging Server include an advanced mail agent, proven IMAP server,
support for OpenLDAP, and built-in security. |
functionality |
- data exchange: Outlook is supported concerning the
Internet Free/Busy feature
|
conclusion |
no Redhat Linux support |
decision |
not suitable: no linux server support |
|
CALENDAR INTERNET |
Calendar Internet 2002 |
Home |
http://aufrance.com/calendar.htm |
category |
webbased server: runs on Microsoft IIS or O'Reilly
WebSite |
decision |
not suitable: no linux server support |
|
CALENDARS.NET |
Calendars.net |
Home |
http://www.calendars.net/ |
category |
service provider, webbased; supports Outlook
|
licence/costs |
free for charities |
marketing statement |
Calendars Net currently provides over 50,000 interactive web
calendars for free. Most of these calendars are for schools,
churches, and other civic or social organizations, worldwide. We
provide these calendars (and technical support) for free. |
installation |
Online Demo: http://www.calsnet.net/practice
|
functionality |
- data exchange: import / export of calendar data via
.csv file with Outlook; can be used with BrownBear iCal.
|
decision |
not suitable: no linux server support |
|
CALENDARSERVER.COM |
CalendarServer.com |
Home |
http://www.calendarserver.com/ |
category |
service provider, webbased
|
contra |
only publishing of personal calendar |
decision |
not suitable: no linux server support |
|
CHANDLER |
Chandler |
Home |
http://www.osafoundation.org/our_product_desc.htm |
category |
client client: should run on Windows, Linux,
Mac
|
marketing statement |
Our product (code-named "Chandler" after the great detective
novelist Raymond Chandler), is a Personal Information Manager (PIM)
intended for use in everyday information and communication tasks,
such as composing and reading email, managing an appointment
calendar and keeping a contact list. Because of the ease with which
Chandler users can share information with others, we might call
Chandler the first Interpersonal Information Manager. (The term PIM
was first used in conjunction with the product Lotus Agenda in the
1980's. Chandler is the spiritual descendant of Agenda (and has a
common designer in Mitch Kapor.) |
reliability of support |
Open Source Applications Foundation: Mitchell Kapor, Founder of
Lotus, has given $5 million dollar to this project, and is leading
it. Also other big names are involved, e.g. Tim O'Reilly. They want
to use as much existing open source software as possible. |
conclusion |
only design plans; first alpha version promised for end of
2002 |
decision |
experimental |
|
CONTACTOFFICE |
ContactOffice |
Home |
http://www.contactoffice.com/ |
category |
service provider, webbased service provider
|
functionality |
- data exchange: with palm / outlook synchronisation
|
conclusion |
no local installation of server possible |
decision |
not suitable: no linux server support |
|
CYBERSCHEDULER |
Crosswind Cyberscheduler & Synchronize & CyberSync
|
Home |
http://www.crosswind.com/ |
other links |
http://www.envicon.de/cyberscheduler/cybersync/index.html
|
category |
webbased & client client: webbased &
clients server: linux or NT |
licence/costs |
commercial costs: see http://www.envicon.de/e/cyberscheduler/preise.html;
no prices for Synchronize & CyberSync; 500 licenses;
CyberScheduler & CyberSync 50 EUR; Synchronize: ??? DM |
documentation |
http://www.crosswind.com/feature3.htm |
installation |
Online Demo: http://www.crosswind.com/CyberSched/En_US/login.html Download:
see http://www.crosswind.com/testlock.htm#synch and http://www.envicon.de/e/cyberscheduler/cybersync/indexe.html
|
functionality |
- email: no email functionality
- data exchange: Palm Sync supported by CyberScheduler;
offline client supported by Synchronize; But no Palm Sync with
Synchronize?
|
reliability of support |
There seem to be two companies: Crosswind and envi.con; The
price list of envi.con is not really helpful, still using DM; really
bad integration of english translation |
pro |
realtime group calendaring |
contra |
not both offline client and palm sync |
decision |
missing synchronisation support |
|
DAYPOINT |
FrontOffice Communications: DayPoint Enterprise |
Home |
http://www.daypoint.com/products/daypointent.asp |
category |
webbased & Outlook server: Microsoft Server |
licence/costs |
commercial costs: Price per server, unlimited users:
$995 |
functionality |
- data exchange: Palm and Outlook synchronisation
|
decision |
not suitable: no linux server support |
|
E2DO |
www.e2do.com |
Home |
http://www.e2do.com/ |
category |
service provider
|
decision |
not suitable: no linux server support |
|
ECAL |
eCal M1 |
Home |
http://www.ecal.com/products.asp?action=m1 |
category |
webbased & Outlook client: webbased server: Sun
Solaris, Oracle Database |
licence/costs |
commercial |
documentation |
http://www.ecal.com/documents/m1_ss_1.pdf |
functionality |
- data exchange: Palm and Outlook support
|
decision |
not suitable: no linux server support |
|
ERIDU |
eridu |
Home |
http://eridu.sourceforge.net/ |
category |
webbased, php
|
conclusion |
August 2001: Currently the Eridu project is on
hold. |
decision |
not enough reliability of support |
|
GHC |
Great Hill Corporation: Calendars for the web 2.5.1 |
Home |
http://calendar.greathill.com/ |
category |
webbased client: webbased server:
linux/apache |
licence/costs |
commercial |
documentation |
http://calendar.greathill.com/calweb/cw_help/usermanual_frame.htm |
installation |
Online Demo: http://calendar.greathill.com/cgi-bin/calweb/calweb.cgi Download:
http://calendar.greathill.com/dlarea.htm
|
functionality |
- data exchange: import/export via text files, but no
synchronisation
|
decision |
missing synchronisation support |
|
GROVEWARE |
Groveware CAL/RM 2000SE |
Home |
http://www.groveware.com/products/crm2000se_overview.htm |
category |
webbased
|
decision |
missing synchronisation support |
|
HTMLCAL |
HTMLCAL |
Home |
http://www.htmlcal.com/ |
category |
webbased, cgi client: webbased server: linux
apache |
licence/costs |
costs: unlimited calendars: $400 |
installation |
Online Demo: http://www.htmlcal.com/demo/
|
conclusion |
not a useful calendar: only formatting calendar
data |
decision |
missing synchronisation support |
|
HUNTCAL |
www.huntcal.com |
Home |
http://www.huntcal.com/ |
category |
service provider
|
decision |
not suitable: no linux server support |
|
HYPERWAVE |
Hyperwave Team Workspace |
Home |
http://www.hyperwave.com/e/products/tws.html |
category |
non linux server, webbased
|
functionality |
- data exchange: outlook synchronisation
|
contra |
requires Oracle 8i (8.1.7) or Microsoft SQL Server 2000 |
conclusion |
server doesn't run on linux |
decision |
not suitable: no linux server support |
|
ICQ GROUPWARE |
ICQ Groupware 1.12 Beta |
Home |
http://www.icq.com/groupware/ |
category |
no calendar, messaging tool (without calendar) client:
ICQ groupware client server: program runs on WinNT (both server
or workstation) |
licence/costs |
commercial |
documentation |
http://www.icq.com/groupware/specifications.html |
marketing statement |
The System is designed to support communications and
collaborative work over Intranet. It comes with many internal
functions such as group chats, online and offline messaging,
collaborative browsing, file transfer, central message broadcasting
and more. The System also supports many popular collaborating
voice, video and data applications. The System is designed to
support groupwork. It supports multi-user chats, multi-user
collaborating browsing and multi-user messaging. The user can
construct a list of members of his group and see at all times their
online/offline availability. |
installation |
Download: http://www.icq.com/groupware/register.html
|
functionality |
- calendar: no calendar available
- other modules: chats, online and offline messaging,
collaborative browsing, file transfer, central message
broadcasting; collaborating voice, video and data applications
|
contra |
no calendar beta version |
conclusion |
no calendar |
decision |
not suitable: no group calendar included |
|
KDE PIM |
KDE PIM application suite (with KOrganizer) |
Home |
http://korganizer.kde.org/ |
other links |
http://pim.kde.org/
|
category |
client, linux groupware client
|
documentation |
http://korganizer.kde.org/workshops/KOrganizerIMIP/en/html/index.html |
marketing statement |
KOrganizer is KDE's calendaring and scheduling program for
organizing appointments, todo lists, projects and more. It is an
integral part of the KDE PIM suite, which aims to be a complete
solution for organizing your personal data. KOrganizer supports the
two dominant standards for storing and exchanging calendar data,
vCalendar and iCalendar. |
functionality |
|
decision |
not suitable: no windows workstation support |
|
KOLAB |
Kolab / Free Software Groupware Project |
Home |
http://kroupware.kde.org/ |
category |
Outlook/Linux client: Outlook and Outlook Bynari
Connector or KDE PIM tools, Kroupware server: open source linux
server |
licence/costs |
opensource, but uses outlook and bynari connector (Insight
Connector 500 User Pack $11,000.00) costs: bynari connector |
documentation |
http://kroupware.kde.org/concept-1.0.1/index.html |
installation |
Download: only alpha version at the moment: ftp://master.kde.org/pub/kde/unstable/server/kolab/kolab-current/ official
installation guide: http://kroupware.kde.org/howto-kolab.html
|
pro |
should work in some time with Kroupware on windows, without
outlook |
conclusion |
At the moment only Outlook is supported as windows client,
and it requires the Bynari Connector. Or wait for the KDE PIM
port to windows, but the development of that has not started
yet. |
decision |
promising, but still under development |
|
LIVELINK |
Opentext Livelink 9.1 |
Home |
http://www.opentext.net/livelink |
category |
non linux server, webbased server: Windows or
Solaris |
licence/costs |
commercial |
functionality |
- calendar: optional shared scheduling;
|
conclusion |
no linux server support |
decision |
not suitable: no linux server support |
|
LOCALENDAR |
www.localendar.com |
Home |
http://www.localendar.com/ |
category |
service provider
|
decision |
not suitable: no linux server support |
|
LOTUS DOMINO |
(IBM) Lotus Domino / Notes |
Home |
http://www.lotus.com/products/r5web.nsf/webhome/nr5noteshp |
other links |
http://www.lotus.com/products/r5web.nsf/webpi/Notes?opendocument&cwesite=notes http://www.lotus.com/products/r5web.nsf/webhome/nr5serverhp-new
|
category |
webbased & client server: domino runs on linux,
Windows, ... |
documentation |
see http://www-10.lotus.com/ldd/today.nsf/lookup/notes_rnext_technical_overview
and http://www-10.lotus.com/ldd/today.nsf/lookup/domino_rnext_technical_overview |
conclusion |
overkill of functionality |
decision |
too difficult to integrate with current OM solution |
|
MAILSTUDIO |
MailStudio Calendar Server |
Home |
http://www.mailstudio.com/prod_cal_ov.html |
category |
webbased & client client: webbased server: unix
/ Linux supported, Windows 2000 support is planned |
licence/costs |
commercial |
installation |
Online Demo: http://cal.mailstudio.com/index.cgi?lang=eng&tnum=2
User/password: guest/guest
|
functionality |
- calendar:
- data exchange: minimal outlook support: can receive
invitations and react on them
|
conclusion |
no calendar synchronisation with offline client |
decision |
missing synchronisation support |
|
MDAEMON |
MDaemon |
Home |
http://www.altn.com/Products/Default.asp?product_id=MDaemon |
category |
webbased server: Microsoft Windows 95
OSR2/98/ME/XP/NT/2000 operating system |
decision |
not suitable: no linux server support |
|
MEETINGMAKER |
Meeting Maker 7.1 |
Home |
http://www.meetingmaker.com/ |
category |
webbased & client client: supports mac, win,
solaris, and webinterface server: solaris, win, mac, linux (with
X11) |
licence/costs |
commercial costs: mailto:europe@meetingmaker.com |
documentation |
http://www.meetingmaker.com/support/ |
marketing statement |
Meeting Maker, Inc.'s meetingmaker is a real-time,
cross-platform calendaring & scheduling solution. |
installation |
Download: http://www.meetingmaker.com/sales/trial official
installation guide: http://www.meetingmaker.com/support/
|
functionality |
- calendar: support of resources, free/busy times, can
check availability before inviting; real time calendaring
- invitation: can invite people outside the system
- email: e-mail independent system architecture;
therefore OM mail is supported
- data exchange: synchronisation with PDA over the
network is provided. The system is built on a distributed,
replicated database. A copy of most data is available locally,
that supports the use of a laptop disconnected from the network.
Synchronisation with Microsoft Outlook Calendar.
|
reliability of support |
The company Meeting Maker Inc. has been working with real time
calendaring for over 12 years. |
contra |
graphical interface for server administration required |
conclusion |
OM Standard Linux works without graphical
interface. |
decision |
too difficult to integrate with current OM solution |
|
MICROSOFT EXCHANGE |
Microsoft Exchange 2000 |
Home |
http://www.microsoft.com/exchange/ |
category |
non linux server, windows server, with Outlook as
client server: runs on Microsoft Windows 2000 Server |
contra |
no linux support |
conclusion |
This server will not run on a Linux machine. |
decision |
not suitable: no linux server support |
|
MICROSOFT OUTLOOK |
Microsoft Outlook 2000 |
Home |
http://www.microsoft.com/outlook |
other links |
http://support.microsoft.com/default.aspx?scid=kb;en-us;Q179431 http://support.microsoft.com/default.aspx?scid=KB;EN-US;q270044 http://support.microsoft.com/default.aspx?scid=kb;en-us;Q180199
|
category |
client, windows groupware client client: windows
software server: not included |
licence/costs |
commercial costs: belongs to Microsoft Office |
marketing statement |
A powerful communication and scheduling program, Microsoft
Outlook version 2002 offers new and enhanced functionality that will
improve your efficiency and make it easier to collaborate with
colleagues. Support for multiple e-mail accounts, including MSN
Hotmail, simplify the task of managing your information. Features
like Propose New Time and Group Schedules makes it a snap to
coordinate team schedules. |
installation |
Download: belongs to Microsoft Office
|
functionality |
- calendar: vCalendar files can be imported/exported
supports free/busy times in Internet Only Mode; not tested,
needs at least the Internet Publishing Wizard; it would work with
an http server with Frontpage Extensions on the server; see
installation hints in workgroup mode (using a server, e.g.
Exchange) Calendars can be published
- data exchange: synchronisation with Palm: uses Palm
desktop software and Chapura PocketMirror software
allows
import and export of calendaring data via CSV text files
|
reliability of support |
Microsoft is a huge company. |
pro |
is already installed with MS Office on all clients |
conclusion |
It either could be used with an HTTP server for publishing
and subscribing free busy times of other calendars. But the current
OM configuration does not work. Outlook 2000 requires the Microsoft
Web Publishing Wizard, which is for free, but only supported with
Win98 and WinNT. Or it could be used as client for an Exchange
server simulation. This normally requires a MAPI connector, which
could be the Bynari Insight Connector, but this is too expensive for
OM. Or it could be used with its CSV (Comma Separated Values)
import/export functionality for synchronisation with another
product, e.g. phpGroupWare. But programming effort is needed to
import/export CSV files in phpGroupWare. |
decision |
could be suitable / depends on other solution |
|
MOREGROUPWARE |
moreGroupware 0.6.4pl1 Neo |
Home |
http://www.moregroupware.org/ |
other links |
http://sourceforge.net/projects/moregroupware/
|
category |
webbased, webbased/php client: webbased server:
php, mysql |
licence/costs |
server: opensource (X11 license, which is GPL compatible);
client: every web browser is suitable costs: nothing |
documentation |
no documentation yet available (just faq: http://www.moregroupware.org/faq.php) |
marketing statement |
Web-based groupware written in PHP4. Including modules like
calendar, notes, todo, contacts, project management and others.
|
installation |
Online Demo: http://demo.moregroupware.org/ User/password:
admin/admin Download: http://www.moregroupware.org/download.php official
installation guide: in the distribution archive of moregroupware,
see docs/INSTALL
|
functionality |
- calendar: The Calendaring supports invitations of other
users.
display free and busy times of several people in
comparison look at other's calendar, private entries possible
- email: eMail works with existing smtp/pop3 servers. The
OM sendmail functionality is supported.
- other modules: There are a lot of other modules, but
they can be disabled.
There are the following modules
available: calendar, contact, projects, todo, webmail,
forum other modules are in development There is a very good
user and group management, the admin can change the rights both
per user and per group for each module. several admins are
possible
- data exchange: no palm support; no support of vCalendar
or vCard
|
reliability of support |
18 developers on Sourceforge; very active community (19 open
Bugs out of 610 Bugs); supported by several companies |
pro |
a good shared calendar module |
contra |
no update functionality yet, administrator is responsible for
changing the database to the new structure |
conclusion |
This product is not ready yet. There is no guarantee for
support of user data in future releases. no support of palm
synchronisation |
decision |
missing synchronisation support |
|
MOZILLA |
Mozilla Calendar 0.8 |
Home |
http://www.mozilla.org/projects/calendar/ |
other links |
http://www.mozilla.org/projects/calendar/requirements.html http://www.jsoft.com/Gary/calendar/
|
category |
client, free client software, calendaring client:
integrated in Mozilla server: ftp, http |
licence/costs |
opensource (MPL/LGPL/GPL) costs: nothing |
marketing statement |
Mozilla is an open-source web browser, designed for
standards-compliance, performance and portability. The Mozilla
Calendar project is meant to create an open source, standards based
calendar solution. It will be based on existing calendar standards:
iCalendar, iTIP, and iMIP. The initial codebase is being donated by
OEone Corporation and should be thought of only as a demonstration
of what can be accomplished using XUL, JS, CSS and XPCOM. |
installation |
Download: see installation hints
|
functionality |
- calendar: see requirements; publish calendar to a FTP
server or webDAV enabled webserver and subscribe to other
calendars using HTTP
- data exchange: palm support is in the requirements, but
not yet implemented
import of outlook calendar data is
implemented
|
conclusion |
Palm support promised, but not availabe Free Busy
Calendaring gives a error message, does not work at the
moment |
decision |
missing synchronisation support |
|
NETSCAPE CALENDAR |
Netscape Calendar Server |
Home |
http://wp.netscape.com/calendar/v3.5/index.html |
other links |
http://wp.netscape.com/communicator/calendar/v4.0/index.html
|
category |
outdated, client/server solution client: Netscape
Communicator 4 Professional Edition with Calendar server:
Netscape Calendar Server |
reliability of support |
Netscape Calendar is not longer available: http://sillydog.org/narchive/calendar.html Netscape
Calendar Server also does not seem to be available anymore. Sun
and Netscape are joined in an alliance, so there are no 2 calendar
servers! http://wp.netscape.com/netscape/alliance |
conclusion |
outdated |
decision |
outdated |
|
NOVELL GROUPWISE |
Novell Groupwise 6 |
Home |
http://www.novell.com/products/groupwise/ |
other links |
http://www.gwuser.org/
|
category |
webbased & client, windows/netware server, client
either dedicated workstation client or webbased client: runs on
Windows, or web access, or palm device server: runs on Netware or
Windows NT |
licence/costs |
commercial costs: 25 user $3,250.00 |
documentation |
http://www.novell.com/documentation/lg/gw6/index.html |
marketing statement |
Organizations simply can't run without e-mail, calendaring,
document management and other collaborative activities. GroupWise 6
ensures these Net services are available wherever you are. Only
GroupWise has wireless support 'out of the box'. You can use any
WAP-enabled device or PDA to check e-mail, book appointments and
share documents. |
installation |
Download: http://download.novell.com/download.jsp?pid=136&target=sdExpLic.jsp official
installation guide: http://www.novell.com/documentation/lg/gw6/pdfdoc/gw6_install/gw6_install.pdf
|
conclusion |
This server will not run on a Linux machine. |
decision |
not suitable: no linux server support |
|
OPENOFFICE.ORG |
OpenOffice.org Groupware |
Home |
http://groupware.openoffice.org/ |
other links |
http://www.opencap.org/html/ http://www.openoffice.org/files/documents/81/7727/groupwarefaq.htm
|
category |
client, opensource client (LGPL/SISSL) client:
integrated in the openoffice.org suite server: using an
opensource calendar server (not existing yet) |
licence/costs |
opensource costs: nothing |
documentation |
no product yet available |
marketing statement |
To establish standard-compliant groupware solutions that
will: Work from within the OpenOffice.org office suite Permit
an easy migration from the current StarOffice 5.2 mail, news,
schedule, and schedule server system |
installation |
Download: no product yet available official installation
guide: no product yet available
|
functionality |
|
reliability of support |
OpenOffice.org can't use the StarOffice 5.2 Schedule programs
because they were 3rd party programs. So the people are working on
integration of calendar functionality into their product, but this
project is just in incubator state. They are searching what
opensource programs (e.g. Mozilla Calendar) they can use, and see if
they have to write an own calendaring server. |
contra |
The groupware project is in incubator state. |
conclusion |
this project is in a too early stage |
decision |
experimental |
|
ORACLE COLLABORATION |
Oracle Collaboration Suite |
Home |
http://www.oracle.com/ip/deploy/cs/index.html?content.html |
other links |
http://www.steltor.com/products/
|
category |
webbased & Outlook, server in combination with
windows or linux client: Outlook, webbased server: runs also
on Linux, based on the 9i Application Server and the 9i
Database |
licence/costs |
costs: $60 per named user |
functionality |
- data exchange: PDA Support; Exchange and Outlook
compatibility and support
|
reliability of support |
On June 21 2002, Oracle bought the time-management software
company Steltor (known for their CorporateTime product). Oracle also
uses the experiences from their product Oracle Office which was not
successful. |
contra |
no fixed shipping date (perhaps end of 2002) |
conclusion |
experimental |
decision |
experimental |
|
PHPCOLLAB |
phpcollab |
Home |
http://sourceforge.net/projects/phpcollab |
category |
no calendar, webbased collaboration software, no
calendar
|
conclusion |
no group calendar |
decision |
not suitable: no group calendar included |
|
PHPGROUPWARE |
phpGroupWare 0.9.14.000 |
Home |
http://www.phpgroupware.org/ |
other links |
http://savannah.gnu.org/projects/phpgroupware/ http://mail.gnu.org/pipermail/phpgroupware-developers/2002-August/002146.html http://docs.axisgroupware.org/index.php?page=AxisSync
|
category |
webbased, php; provides API client:
webbased server: php, sql (e.g. mysql) |
licence/costs |
server: opensource (GNU General Public License (GPL)); client:
nearly every web browser is suitable costs: nothing |
documentation |
in the manual app |
marketing statement |
phpGroupWare is becoming a top intranet/groupware tool and
application framework. Our goal is to provide
companies/universities/individuals with a complete, secure and
flexible web based groupware framework for building their own custom
applications. We are focused on creating a Free Software groupware
API with the powerful programability of Lotus Notes. |
installation |
Online Demo: not available at the moment; http://www.phpgroupware.org/demo/login.php
User/password: ??? Download: http://www.phpgroupware.org/index.php?page_name=downloads official
installation guide: http://docs.phpgroupware.org/12-docs/html/admin/
|
functionality |
- calendar: can invite users without a problem; no
invitation of external contacts
conflicts are detected
automatically, conflict can be ignored private
appointments grant access on your calendar to a whole group, or
specific users invited persons can accept or reject or mark as
tentative It seems that there is already a Windows client that
is able to check in given intervals if there is an alarm or change
to the calendar. Alarms can also be sent by mail.
- invitation:
- resource booking: no integration of resources; need
to be simulated by special users that belong e.g. to a group
"resources"
- email: works with pop3/smtp
- other modules: addressbook, admin, backup, bookmarks,
calendar, contacts, chat, view cvs, ldap browser, email,
filemanager, forum, ftp client, image editor, CRM, Manual, notes,
polls, projects, todo, weather, ...
- data exchange: SyncML support is under development;
AxisGroupware also works on PDA sync;
can import / export
vcs/ics calendar files |
reliability of support |
5 Admins. 27 developers |
pro |
uses all standards (vcard, vcalendar) SyncML support clean
modular software design messages about changes to ones calendar
can be sent via email |
contra |
version 1.0 is some months in the future how to synchronise
with outlook? CSV import/export would need to be programmed not
designed for use on enterprise level: see http://docs.axisgroupware.org/index.php?page=TheFutureOFphpGroupware;
but if OM only uses the phpGroupWare calendar application and only a
maximum of 50 workstations is logged in to the server at the same
time, it should be OK. |
conclusion |
depends on AxisSync (Palm synchronisation support), and on
CSV implementation |
decision |
could be suitable / depends on other solution |
|
PHPORGASYNC |
phpOrgaSync |
Home |
http://www.ds-services.de/portal/ |
category |
sync, synchronisation of Outlook and PHProjekt client:
Windows Programm (uses ODBC connection to server
database) server: phprojekt |
licence/costs |
freeware, not opensource costs: nothing |
marketing statement |
This tool enables the user to synchronize his contacts and his
schedule held in outlook with the open source groupware tool
PHProjekt. |
installation |
Download: http://www.ds-services.de/portal/
|
functionality |
- data exchange: synchronizes addresses & calendar
|
reliability of support |
1 person, no opensource |
contra |
poor reliability |
conclusion |
not enough reliability, project depends on only one
developer |
decision |
not enough reliability of support |
|
PHPROJEKT |
PHProjekt 3.3 |
Home |
http://www.phprojekt.com/ |
other links |
http://sourceforge.net/projects/phprojekt/
|
category |
webbased, php client: webbased (frame capable browser,
javascript) server: php, sql (e.g. mysql) |
licence/costs |
server: opensource (GNU General Public License (GPL)); client:
nearly every web browser is suitable costs: nothing |
documentation |
online help available |
marketing statement |
PHProjekt - an open source groupware suite PHProjekt is a
modular application for the coordination of group activities and to
share informations and document via intranet and internet. "of
course - open source" - PHProjekt is free software. |
installation |
Online Demo: http://www.phprojekt.com/demo/index.php
User/password: english/english Download: http://www.phprojekt.com/modules.php?op=modload&name=Downloads&file=index
official installation guide: in the phprojekt directory, file
install
|
functionality |
- calendar:
- invitation: can invite one external
contact
can invite profiles, and can invite group
members; groupview possible, but outside of invitation
- private appointments: normal, private, public
- repeating events: once, daily, weekly, monthly,
yearly
- resource booking: one resource can be booked for a
meeting
- email: eMail works with existing smtp
servers.
receiving email uses imap The OM sendmail
functionality is supported.
- other modules: Group calendar, project management, time
card system, file management, contact manager, mail client and 9
other modules ...
- data exchange: can import Contacts from vCard, Outlook,
other list
export of contacts via vCard no support of
calendar data import/export synchronisation with Outlook with
freeware (not opensource tool) phpOrgaSync |
reliability of support |
the project started in 2000, one person (Albrecht Guenther) is
responsible for it. There are a lot of bugfixes. The program seems
to have a big user community, it is translated in 25 languages.
Several people have developed addons for the project. |
pro |
integrated resource booking chief status to modify someone
else's calendar |
contra |
calendar: can only invite one person; no invitation of group
members |
conclusion |
depends on synchronisation of calendar information with
outlook / Palm |
decision |
missing synchronisation support |
|
PROIEKTOR |
Proiektor |
Home |
http://demo.iuveno-net.de/iuveno/Products/Proiektor |
category |
webbased, python
|
licence/costs |
opensource |
installation |
Online Demo: http://imail.iuveno-net.de:8180/Proiektor/Instances/Demo
User/password: demo/demodemo
|
functionality |
- data exchange: no palm sync
|
reliability of support |
there seems to be nobody is supporting it / working on it (see
nearly empty mailing list archive) |
decision |
not enough reliability of support |
|
SAMSUNG CONTACT |
Samsung Contact 7.1 |
Home |
http://www.samsungcontact.com/en/ |
category |
webbased & Outlook, server with client: webbased and
outlook client: outlook, webclient, java client server: redhat
linux is supported |
licence/costs |
commercial costs: 100 users, $62.05 each (some clients need
also extra licenses) |
documentation |
locally saved, register and download |
installation |
Download: register and download official installation guide:
see local version in manual/samsung (or register and download from
website)
|
functionality |
- data exchange: outlook offline folder synchronisation
|
reliability of support |
formerly HP OpenMail, was bought by Fujitsu, which sold it to
Samsung. Samsung use the program in their own company. There was a
new release of the MAPI connector in October. |
decision |
need to be considered concerning the costs |
|
SCHEDULEONLINE |
ScheduleOnline Intranet |
Home |
http://www.scheduleonline.com/products_intranet.php?pn_id= |
category |
webbased & Outlook client: webbased server:
linux apache, windows |
licence/costs |
commercial costs: $44.50 per user license |
installation |
Online Demo: http://www.scheduleonline.com/products_intranet.php?pn_id= official
installation guide: http://www.scheduleonline.com/Install.mysql.unix.txt
|
functionality |
- calendar: distinguishes between meeting, appointment,
resource, task, reminder, chat;
resource management also
integrated in meeting; allows attachments for
meetings conflict management; detailed recurrence
- other modules: forum, contacts, email, todo list, file
manager, bookmarks
- data exchange: Outlook sync; Palm sync
|
reliability of support |
The company uses this software to provide a calendar service on
the internet. |
decision |
need to be considered concerning the costs |
|
SKYRIX |
SKYRiX Web Groupware |
Home |
http://www.skyrix.com/ |
category |
webbased client: webbased server: linux, requires
Database: FrontBase, Oracle, Sybase |
licence/costs |
costs: Unlimited Edition 980 EUR |
marketing statement |
SKYRiX Web Groupware is web and data base based groupware
solution for enterprises of every type and size. It connects
classical groupware functionality with the advantages of the
innovative technology of a web-based application server. A browser
is sufficient in order to communicate with coworkers, customers,
partners, suppliers and investors in the whole world, to work on
common projects, to access the same documents and data, and to
process and administer these platform-independently both
enterprise-internally and externally. |
installation |
Online Demo: http://www.skyrix.com/en/demo/standard/index.xhtml
|
functionality |
- data exchange: no offline client; no synchronisation
with Outlook
|
decision |
missing synchronisation support |
|
SMARTCAL |
www.smartcal.com |
Home |
http://www.smartcal.com/ |
category |
service provider
|
conclusion |
There is an enterprise version for intranets, but without
further documentation |
decision |
not suitable: no linux server support |
|
SQWEBMAIL |
Courier MTA / SqWebMail 3.3.7 |
Home |
http://www.inter7.com/sqwebmail/ |
other links |
http://www.courier-mta.org/ http://sourceforge.net/projects/courier/
|
category |
webbased, webbased/CGI client: web browser server:
program using CGI |
licence/costs |
opensource (GNU General Public License (GPL)) costs:
none |
documentation |
see in sourcecode, pcp/README.html, some description of the
calendar |
marketing statement |
SqWebMail is a web CGI client for sending and receiving E-mail
using Maildir mailboxes. Calendaring services can be optionally
enabled by the system administrator. When enabled, basic calendar
management is available. NOTE: this is an experimental beta
feature. This is the same webmail server that's included in the
Courier mail server, but packaged independently
The Courier
mail transfer agent (MTA) is an integrated mail/groupware server
based on open commodity protocols such as ESMTP, IMAP, POP3, LDAP,
SSL, and HTTP. Courier provides ESMTP, IMAP, POP3, Webmail,
calendaring, and mailing list services. |
installation |
Online Demo: http://webmail.inter7.com/ User/password:
webmail@webmail.com/webmail Download: http://sourceforge.net/projects/courier/ http://ftp.die.net/apt/redhat/7.3/en/i386/RPMS.extra/
|
functionality |
- calendar: group calendaring is experimental.
- data exchange: no palm synchronisation; not even
support of vCalendar standards
|
reliability of support |
one person is developing it (Sam Varshavchik). average of 1
release per month (from August 2001 to August 2002) A lot of
people seem to use it, the users mailing list archive on Sourceforge
contains more than 13000 messages. |
contra |
groupware calendaring is just experimental no use of
standards like vCalendar, but own Personal Calendar Protocol |
conclusion |
experimental, just one developer no support of palm
synchronisation |
decision |
missing synchronisation support |
|
SUN CALENDAR |
Sun Calendar Server |
Home |
http://wwws.sun.com/software/products/calendar_srvr/home_calendar.html |
other links |
http://wwws.sun.com/software/product_categories/email_calendar_collaboration.html http://wwws.sun.com/software/products/calendar_srvr/faqs_calendar.html
|
category |
non linux server, Sparc/Solaris, HP-UX, or Windows
server, client webbased client: webbased server: runs on SPARC
machines with Solaris, Windows NT 4.0, HP-UX 11.00 |
licence/costs |
commercial costs: $30.00 per installed Client |
installation |
Download: http://wwws.sun.com/software/download/email_cal.html
|
functionality |
- data exchange: no synchronisation with PDAs available
at the moment. promised by Sun to be available soon.
user needs
to be connected to the network, because the calendor is not stored
on the PC. Future: They haven't planned anything, they hope
everyone will be connected to the net. Sun ONE Calendar Server
can import and export calendars in iCalendar format.
|
reliability of support |
This product was formerly called iPlanet Calendar Server. |
conclusion |
This server will not run on a Linux machine. |
decision |
not suitable: no linux server support |
|
SUN STAROFFICE |
Schedule and Schedule Server - StarOffice 5.2 |
Home |
http://wwws.sun.com/software/star/staroffice/5.2/whatsnew/schedule.html |
other links |
http://wwws.sun.com/software/star/staroffice/5.2/details.html#7 http://groupware.openoffice.org/ http://wwws.sun.com/software/star/staroffice/6.0/whatsdifferent.html
|
category |
outdated, client/server solution
|
licence/costs |
costs: StarOffice 5.2 was free |
marketing statement |
Coordinate Schedules To Improve Collaboration Keep track of
your time and tasks with this full-featured information manager.
Store, access, and organize your scheduling and communication
information quickly and easily on your desktop or your Palm OS-based
personal computing device. |
functionality |
- data exchange: synchronisation with PalmOS is available
|
reliability of support |
Sun offered StarOffice 5.2 for free download, but when they
released StarOffice 6.0, this free download was stopped. You still
can get StarOffice 5.2, but you have to order it on
CD. StarOffice 6.0 comes without the Schedule Client and Schedule
Server and has no replacement: http://wwws.sun.com/software/star/staroffice/6.0/migrationfaq.html#1q22
OpenOffice.org also can't use the Schedule programs because they
were 3rd party programs. So the people are working on integration of
calendar functionality into their product, but this project
OpenOffice.org Groupware is just in incubator state. They are
searching what opensource programs they can use, and see if they
have to write an own calendaring server. They are not planning to
support palm synchronisation: http://www.openoffice.org/files/documents/81/7727/groupwarefaq.htm
see also http://xml.openoffice.org/xmerge/index.html |
contra |
Star Office 5.2 is not uptodate; StarOffice 6 doesn't contain
the schedule application; OpenOffice is still working on this
functionality. |
conclusion |
not available any more |
decision |
outdated |
|
SUPERCALENDAR |
www.supercalendar.com |
Home |
http://www.supercalendar.com/ |
category |
service provider
|
decision |
not suitable: no linux server support |
|
SUSE GROUPWARE |
SuSE Linux Groupware Server with Lotus Domino |
Home |
http://www.suse.com/us/business/products/suse_business/groupware_server/index.html |
category |
webbased & client, commercial server and client
software
|
licence/costs |
costs: see http://www.suse.com/us/business/products/suse_business/groupware_server/prices.html |
marketing statement |
SuSE Linux Groupware Server makes use of the enterprise
operating system SuSE Linux Enterprise Server 7 with the new Linux
kernel 2.4.18. Lotus Application Server 5.0.10 provides efficient
tools for
- Scheduling
- Defining workflows
- Workflow management
- Messaging/e-mail server
- Document management
- Web server/web application server
|
functionality |
- data exchange: EasySync Pro: Palm synchronisation
software
|
reliability of support |
see also SuSE Linux OpenExchange Server: http://www.suse.com/us/company/press/press_releases/archive02/openexchange.html;
it is announced to be available in mid of November |
conclusion |
overkill of functionality |
decision |
too difficult to integrate with current OM solution |
|
SUSE MAIL |
Suse Mail Server 3.1 |
Home |
http://www.suse.com/us/business/products/suse_business/email_server/index.html |
other links |
http://www.skyrix.com/en/products/packages/emailserver3/index.xhtml
|
category |
webbased & Outlook client: webinterface based on
Skyrix; Outlook supported server: linux based; Skyrix |
licence/costs |
commercial; Yast Lisence costs: US $999.00 |
installation |
Online Demo: http://emailserver3.suse.de/perl/login.pl?doit=login&lang=EN
|
functionality |
- calendar: Internet Free Busy times (ftp/http)
- data exchange: palm support
|
decision |
too difficult to integrate with current OM solution |
|
SYNCBUILDER |
SyncBuilder Java Framework |
Home |
http://sourceforge.net/projects/syncbuilder/ |
category |
sync, framework for synchronisation with palm
|
licence/costs |
opensource (GNU General Public License (GPL)) costs:
framework is free, but development of own software costs (at least
time) |
marketing statement |
The SyncBuilder framework allows you to develop Java
applications that can connect with Palm devices. It works
independently from Palm Computing, Inc.'s HotSync technology and is
not bound to a specific platform (some functionality currently
requires native support code, that is only available for Unix and
Win32). Its functionality includes the ability to read and write
records from/to the Palm device, and to query information on the
Palm device. It also offers special support for the built-in
applications (Calendar, To-Do, Address book, Mail, Expenses,
MemoPad). Finally, it can read and write .PDB and .PRC database
files. It supports both the normal sync through a serial cable as
well as the Network HotSync technology. SyncBuilder is a
framework that allows you to develop synchronisation applications
between a host machine running Java 1.1 or higher, and a Palm
device. It is a complete replacement for Palm's HotSync Manager.
|
reliability of support |
no community (last available version 1999) |
contra |
requires development of own software no current version
available on the net, nobody's working on it (using it?) |
conclusion |
no community, requires own development |
decision |
not enough reliability of support |
|
TEAMWARE OFFICE |
Teamware Office 5.3 Ed 4 for Linux |
Home |
http://www.teamware.net/Resource.phx/twoffice/index.htx |
category |
webbased & client, webbased or windows client with
linux or windows server client: webbased or windows
program server: linux or windows server |
licence/costs |
commercial costs: no information online; see http://www.teamware.net/Resource.phx/uk/index.htx
for addresses |
documentation |
http://www.teamware.net/dman/Folder.phx/download/office-for-linux/documents |
marketing statement |
Teamware Office is a complete, modular set of collaborative
applications. It provides a robust and scaleable messaging
environment combined with active information sharing, document
management, and resource management functions. Teamware Office is a
secure bridge between the merging network technologies. It enables
teams to share and manage information in corporate intranets,
supporting mobile and virtual office concepts, full Web integration,
network security, corporate and public directories and connectivity
for business applications. ... Teamware Calendar is a flexible
time management tool that helps people organize group meetings and
book shared resources like meeting rooms or common equipment.
Several calendars and calendar groups can be viewed across the
enterprise in a single intuitive user interface. |
installation |
Online Demo: http://office.teamware.com:8008/ User/password:
John/john Download: http://www.teamware.net/Resource.phx/download/index.htx official
installation guide: http://www.teamware.net/dman/Folder.phx/download/office-for-linux/documents
|
functionality |
- calendar: good integration of resource
management
can invite people and groups; several states for
invited persons to reply repeating events, possibility of using
several days
- email: should work with existing sendmail
configuration
no offline client support
- other modules: mail, calendar, forum, library (document
management); notifier for notices
- data exchange: SMS Connector: built-in PDA Calendar
synchronisation
|
reliability of support |
The Teamware Company belongs to Fujitsu. TeamWare Office is not
the only product of this company. |
pro |
pda support for calendars |
conclusion |
offline client support is missing |
decision |
missing synchronisation support |
|
TUTOS |
Tutos 1.0 |
Home |
http://www.tutos.org/ |
other links |
http://sourceforge.net/projects/tutos
|
category |
webbased, php client: web browser server:
php/mysql |
licence/costs |
opensource (GNU General Public License (GPL)) costs:
nothing |
documentation |
http://www.tutos.org/documentation/book0/index.html |
marketing statement |
TUTOS is the ultimate team organization software, a webbased
groupware or ERP/CRM system to manage events/calendars, addresses,
teams, projects, tasks, bugs, mailboxes, documents and your time
spent with these things. |
installation |
Online Demo: http://www.tutos.org/php/mytutos.php
User/password: linus/guest Download: http://www.tutos.org/homepage/download.html official
installation guide: http://www.tutos.org/homepage/install.html
|
functionality |
- calendar: invite persons and / or groups; invite per
mail
book one or more resources for an
appointment participants can be allowed to change details of
the appointment repeating events
- email: works with existing smtp and pop3 server as well
as directly through sendmail
- other modules: calendar, address manager, bug tracking
system,
product/project repository ( with task management, with
document management, with installation management), support of
different roles (manager,developer,customer etc.) support of
relations to other projects (base product, subproject
etc.) mailboxes (imap/pop) timetracking on projects,
installations and bugs Invoices Watchlists. Stay informed
on changes on projects/bugs etc via email. support for teams
that are distributed over different timezones color schemes
fine grained permission handling change history
- data exchange: nothing done about palm synchronisation
yet;
can export iCal files, but no import no import /
export of vCard |
reliability of support |
9 Developers, 1 Admin |
pro |
developed with a lot of details (e.g. everywhere are links, for
example click on a participant, and you get to his details) a
good documentation |
contra |
no palm synchronisation yet |
conclusion |
palm and outlook synchronisation is not available |
decision |
missing synchronisation support |
|
TWIG |
TWIG 2.7.6 |
Home |
http://twig.screwdriver.net/about.php3 |
category |
webbased, php client: web browser server: php |
licence/costs |
opensource (GNU General Public License (GPL)) costs:
nothing |
documentation |
not available |
marketing statement |
TWIG is rapidly becoming a very useful intranet/groupware tool
and application framework. It is written and implemented completely
with the PHP programming language. Our intention is that it become a
simple, cross-platform, fast, and browser-independent way to access
or share almost any kind of information, without the complexity or
costs of other intranet/groupware packages. |
installation |
Online Demo: http://twig.screwdriver.net/demo/ User/password:
test/test Download: http://twig.screwdriver.net/download.php3
|
functionality |
- calendar:
- invitation: an appointment is always
assigned to a group; no possibility to invite single
persons
user can't specify a group to invite for a meeting
- private appointments: not possible
- repeating events: strange solution of
repeating events: first save the event, then edit the data
concerning the recurrence. But very detailed:
- email: just IMAP support
- data exchange: no palm synchronisation
can import
contacts from Outlook, Netscape, Pegasus no export/import of
calendar data
|
contra |
no possibility for palm / outlook synchronisation |
conclusion |
no synchronisation |
decision |
missing synchronisation support |
|
UW |
UW Calendar Information Center 1.0.1 |
Home |
http://www.washington.edu/ucal/ |
category |
webbased
|
licence/costs |
opensource |
documentation |
http://www.washington.edu/ucal/require.html |
functionality |
- calendar: group calendaring, with realtime server,
using standards
- email: used for invitations
- data exchange: planned, but not realised yet
|
reliability of support |
about 6 people working on it at the University of
Washington |
conclusion |
under development (no group calendaring available yet, only
personal calendar and public events work at the moment) |
decision |
experimental |
|
WEBEVENT |
WebEvent Team |
Home |
http://www.webevent.com/products/team/ |
category |
webbased & Outlook server: requires perl program,
mysql |
licence/costs |
costs: $1,200 for a 10-calendar/user license including Sync;
Educational institutions and 501(c)(3) non-profit organizations are
eligible for a 25% discount on WebEvent licenses |
installation |
Online Demo: http://demo.webevent.com/public/team/cgi/webevent.cgi
|
functionality |
- data exchange: outlook & Palm sync
|
conclusion |
there were already charity prices on the website, so there
was no need to send a special request |
decision |
even with discounts too expensive for OM |
|
XENTRIX |
intisoft Xentric groupware server |
Home |
http://www.intisoft.com/index.phtml?scp=soln_groupware |
category |
webbased, based on Xentric XML Server server: no
statement about server |
licence/costs |
commercial |
functionality |
- data exchange: supports WAP-Browsers, other sync is
planned (SyncML, Palm)
|
conclusion |
no offline sync, or palm sync yet |
decision |
missing synchronisation support |
|
XIMIAN EVOLUTION |
GNOME Ximian Evolution 1.0 |
Home |
http://www.ximian.com/products/ximian_evolution/index.html |
category |
client, linux groupware client client: linux client,
GNOME server: either Exchange, or peer-to-peer |
licence/costs |
Ximian Evolution is opensource (GPL), Ximian Connector is
commercial costs: Ximian Connector: 25 clients = $1449 |
marketing statement |
Ximian Evolution is the premier personal and workgroup
information management solution for Linux and UNIX. The software
seamlessly integrates email, calendaring, meeting scheduling,
contact management and online task lists in one powerful, fast, and
easy to use application. It supports peer-to-peer calendaring
with users on products that support iCalendar, including Microsoft
Exchange and Lotus Notes. Ximian Connector is an optional add-in
to Ximian Evolution that is now available for purchase. With Ximian
Connector installed, Ximian Evolution functions as a Microsoft
Exchange 2000 client, seamlessly integrated with Exchange
calendaring and other mail storage and mail handling features.
|
installation |
official installation guide: installed with Gnome
|
functionality |
- calendar: It supports peer-to-peer scheduling and
allows users to create and confirm group meetings online, even
with Microsoft Outlook and Lotus Notes users.
- invitation: see schedule (free/busy) of others
- repeating events: even custom recurrance is
supported; exceptions from the recurrance
- resource booking: can assign a type (individual,
resource, room) to every attendee
- data exchange: Ximian Evolution can synchronize
calendar, address, and task list information with PalmOS devices.
|
conclusion |
could be a good program for users that don't use Windows
clients. |
decision |
not suitable: no windows workstation support |
|
YAHOO CALENDAR |
www.calendar.yahoo.com |
Home |
http://www.calendar.yahoo.com/ |
category |
service provider
|
decision |
not suitable: no linux server support |
|
7.3 Installation Hints for Groupware
Applications on the OM
Standard Linux Server
Installation of BILL Workgroup Server- python 1.5.2 is already
installed. - python dev needs to be installed. - postgresql needs to
be installed:
rpm -i postgresql-libs-7.2.1-2PGDG.i386.rpm
postgresql-7.2.1-2PGDG.i386.rpm rpm -i
postgresql-server /etc/rc.d/init.d/postgresql start sample conf file
: /usr/share/pgsql/pg_hba.conf.sample
conf file:
/var/lib/pgsql/data/pg_hba.conf; content see billworkgroup doc plus:
host all 127.0.0.1 255.0.0.0 trust
postgres
/var/lib/pgsql/data/postgresql.conf for setting up the tcp
options, and port 5432 install pygresql and mx
omniorb and
omniorb-python
do something about etc/hosts localhost? omniNames
-start
mailer: there are some ^M at the end of some line in the
mailer msgstore init
start
everything: /etc/rc.d/init.d/postgresql start omniNames& cd
/usr/local/BILL-StorageServer-2.1.3 python Server.pyc Problem:
Segmentation fault
problems: Segmentation fault when trying
to start the server
Installation of BrownBear Calcium Web Calendar Server and
TripleSynchttpd.conf: perl.c perl.so alias: path to
cgi-bin directory the same
change
cgi-bin /usr/local/Calcium-3.7 /usr/local/groupware/cgi-bin/Calcium37.pl
Installation of BSCWextracted the bscw.tar.gz to
/home/timop run as timop: ~/bscw-4.0.6$python setup append
apache.conf to httpd.conf modify src/config.py: SERVER_ROOT: http://192.168.1.200/bscw SERVER_ADMIN:
timop@c.ict.om.org SERVER_ADMINS: 'admin' SMTP_HOST don't think I
needed have done that: create server/data/htpasswd; htpasswd -c htpasswd
username access problems bscw as root: chmod a+w
/usr/local/groupware ~/bscw-4.0.6$python setup
/usr/local/groupware/bscw again add apache.conf create
htpasswd
http://bscw.gmd.de/faq/inst20.html Why do I get a
Python trace with "RuntimeError: cgi/bscw.cgi: No setgid"?
got an
account on http://bscw.gmd.de/bscw/bscw.cgi
cd
<bscw-path> % cc -o wrapper wrapper.c as bscw user (timop): %
./bsadmin chkconfig this brought some error messages about group id and
mode as root: chgrp 509 cgi/bscw.cgi as root: chmod 06755
cgi/bscw.cgi as bscw user (timop): % ./bsadmin chkconfig
stop
server: <bscw-path>/start_servers -k start server:
<bscw-path>/start_servers
configure garbage
collection!
http://192.168.1.200/pub/bscw.cgi?op=rmail problems
with sending instead of that: as user timop: cd bscw ./bsadmin
register -r user@c.ict.om.org user test62 login with http://192.168.1.200/bscw/bscw.cgi
Installation of Bynari Insight Serverchanged /etc/xinetd.d/ipop3;
disable = yes kill sendmail setup
problem: sendmail is in
bootup before insight
possible solution: put xinetd.d/ipop3 in
order again /etc/rc.d/rc.local: remove /usr/bin/insightserver
start create script in init.d: insightserver with the
line /usr/bin/insightserver $1 cd /etc/rc.d/rc3.d ln
../init.d/insightserver S79insightserver 79 because of sendmail having
80
Installation of Meeting Makermkdir
/usr/local/mm ./mmadminstall /usr/local/mm mmadmin requires
RedHat 7.1 and X11
see also Admin/ch4__sys/creating.html
Installation of Microsoft Outlooksee http://www.tldp.org/HOWTO/mini/Apache+SSL+PHP+fp-2.html; see
the public Outlook calendaring newsgroup: http://groups.google.com/groups?hl=en&lr=&ie=UTF-8&oe=UTF-8&group=microsoft.public.outlook.calendaring
Web
Publishing Wizard (IE 4.0 or higher) for Windows 95 & NT 4.0 see http://www.microsoft.com/downloads/release.asp?releaseid=22658&area=search&ordinal=2
see http://download.microsoft.com/download/win95/Utility/1.52/W97/EN-US/wpie415-x86.exe
see http://www.microsoft.com/windowsxp/home/using/productdoc/en/default.asp?url=/windowsxp/home/using/productdoc/en/webpub_overview.asp
Microsoft FrontPage 2000 Server Extensions SR1.2: Downloads for
UNIX-Based Servers: http://msdn.microsoft.com/library/default.asp?url=/library/en-us/dnservext/html/unixfpse.asp
FP2000: Installing FrontPage Server Extensions to an Apache Web
Server: http://support.microsoft.com/default.aspx?scid=KB;EN-US;Q202198&LNG=ENG&SA=ALLKB
improved mod_frontpage: http://sourceforge.net/projects/mirfak/ and http://home.edo.uni-dortmund.de/~chripo/index.html tar
xvfz fp40.linux.tar.gz gzip -d fp40.linux.tar.gz cd
frontpage/version4.0 mv ../../fp40.linux.tar
./ ./fp_install.sh
he installs the frontpage extensions to
/usr/local/frontpage server config filename:
/etc/httpd/conf/httpd.conf
frontpage/version4.0/bin/fpsrvadm.exe create
a subweb web name: freebusy port: 80 Unix username: timop unix
group: users
./change_server /usr/sbin/httpd download a most
recent patch from http://www.rtr.com/fpsupport/index.asp rpm -i
apache-1.3.20-16.src.rpm cd /usr/src/redhat/SOURCES tar xvzf
apache_1.3.20.tar.gz cd apache_1.3.20/src patch <
/home/timop/download/fp-patch-apache_1.3.22
Installation of moreGroupwareinstalled: rpm -i
apache-1.3.20-16.i386.rpm mm-1.1.3-1.i386.rpm rpm -i
php-4.0.6-7.i386.rpm curl-7.8-1.i386.rpm
pspell-0.12.2-3.i386.rpm libtool-libs-1.4-8.i386.rpm rpm -i
php-mysql-4.0.6-7.i386.rpm rpm -i mysql-3.23.41-1.i386.rpm rpm -i
mysqlclient9-3.23.22-6.i386.rpm rpm -i
mysql-server-3.23.41-1.i386.rpm
/etc/rc.d/rc3.d: mv K..mysqld
S99mysqld, same for httpd
changes to
/etc/httpd/conf/httpd.conf: DocumentRoot
"/usr/local/moregroupware" <Directory>
"/usr/local/moregroupware" AddType application/x-httpd-php
.php LoadModule php4_module libexec/libphp4.so AddModule
mod_php4.c
remove all other httpd / apache
installations
httpd restart
see
moregroupware/docs/INSTALL
/etc/rc.d/init.d/mysqld start no
password for user root at the moment mysqladmin -u root -p create
moregroupware shell> mysql --user=root mysql mysql> GRANT ALL
PRIVILEGES ON *.* TO moregw@localhost IDENTIFIED BY 'test62' WITH GRANT
OPTION;
/etc/om-firewall.d/S62.internal.local and uncomment the
services you wish to use. Example for http and https: ipchains -A
int-in -j ACCEPT -p tcp --dport http
http://192.168.1.200// run the setup mysql:
server: localhost, user: moregw, database:
moregroupware
possibility to hide all other modules but the
calendar from user. Problems with calendaring: - inviting other
people does not work
Good: can see the free/busy time of invited
persons; private appointments
solved one problem with webmail,
by copying the config.inc.php from moregroupware to
moregroupware/modules: there was a warning / error in
modules/wmail/sendmsg.php
changed
moregroupware/modules/wmail/inc/class.html.mime.mail.inc: Line
14: require_once('inc/mimePart.php');
try to install redhat 6.3
php: rpm -i db3-3.3.11-6.i386.rpm rpm --upgrade
libtool-libs-1.4.2-7.i386.rpm rpm --upgrade php-4.1.2-7.i386.rpm
curl-7.9.5-2.i386.rpm php-mysql-4.1.2-7.i386.rpm
problem: only
users belonging to default group can login??? passwords for the local
test version: admin admin
problems: can choose participants
when creating a meeting, but there are no changes to the participant's
calendars; participants are not saved with the meeting webmail
interface could not be tested because of errors the initiator of a
meeting is always a participant
Installation of Mozilla Calendarfirst download Mozilla 1.2, then
visit the homepage of the calendar, and you can start the installation of
mozilla calendar on the webpage problems: Free Busy Calendaring
gives a error message, does not work at the moment
Installation of phpGroupWareModifications to a Standard OM Linux
Server 1.2, which is based on RedHat 7.2: extract
phpgroupware-0.9.14.000.tar.gz to /usr/local/phpgroupware: cd
/usr/local tar xvzf phpgroupware-0.9.14.000.tar.gz
rpm -i
apache-1.3.20-16.i386.rpm mm-1.1.3-1.i386.rpm rpm -i
php-4.0.6-7.i386.rpm curl-7.8-1.i386.rpm pspell-0.12.2-3.i386.rpm
libtool-libs-1.4-8.i386.rpm
or better use postgresql? axissync
requires postgresql rpm -i php-mysql-4.0.6-7.i386.rpm
mysql-3.23.41-1.i386.rpm mysqlclient9-3.23.22-6.i386.rpm
mysql-server-3.23.41-1.i386.rpm
/etc/rc.d/rc3.d: mv K..mysqld
S99mysqld, same for httpd
changes to
/etc/httpd/conf/httpd.conf: DocumentRoot
"/usr/local/phpgroupware" <Directory>
"/usr/local/phpgroupware" AddType application/x-httpd-php
.php LoadModule php4_module libexec/libphp4.so AddModule
mod_php4.c
/etc/init.d/httpd start
Database
configuration: mysql: /etc/rc.d/init.d/mysqld start no password
for user root at the moment mysqladmin -u root -p create
phpgroupware shell> mysql --user=root mysql mysql> GRANT ALL
PRIVILEGES ON *.* TO gw@localhost IDENTIFIED BY 'test62' WITH GRANT
OPTION;
postgresql: rpm -i postgresql-7.1.3-2.i386.rpm
postgresql-libs...rpm postgresql-server...rpm
php-pqsql-4.0.6-7.i386.rpm su postgres postmaster -D
/var/lib/pgsql/data
/etc/rc.d/rc3.d: mv K..postgresql
S99postgresql
(As Linux user postgres) createuser gw --createdb
--pwprompt --no-adduser createdb phpgroupware -U gw
so that
header can be written: chmod a+w /usr/local/groupware/phpgroupware
/etc/om-firewall.d/S62.internal.local and uncomment the services
you wish to use. Example for http and https: ipchains -A int-in -j
ACCEPT -p tcp --dport http
from the client's windows
explorer: http://192.168.1.200/setup/index.php
in
configuration: 192.168.1.200 use /tmp
test server admin
login: admin /test62
Installation of PHProjektfor configuration of apache and sql see
the installation infos with phpgroupware
create
database: mysqladmin -u root -p create phprojekt
admin
login: http://192.168.1.200/phprojekt/setup.php root,
root
The admin has to create the resource. there are several
profiles: one to configure via contacts, the other configured in options:
group members / external
Installation of Samsung Contactproblems with / partition, it was
too small omwizard (OpenMail = OM) didn't work: wish could not be
found (as root: rpm -Uvh omwizard-7.1.0-1.noarch.rpm)
Manual
installation: as root: rpm -i contact-core-7.1.0-1.i386.rpm
contact-lang-British-7.1.0-1.i386.rpm
add to
/etc/profile: PATH=$PATH:/opt/openmail/bin:/opt/openmail/adm export
PATH
ommakeom /opt/openmail/bin/omaddmn -m test -D
c.ict.om.org omaddfb /etc/init.d/openmail start
perl and
apache: httpd.conf: perl.c perl.so alias: path to
cgi-bin directory the same
cp /opt/openmail/access/omsession.cgi
/usr/local/groupware/cgi-bin mkdir -p docsDir/omsession/admin cp -r
/opt/openmail/template/access/apps/admin/HTML
docsDir/omsession/admin
docsDir is /usr/local/groupware
user
is Unix user, Mailnode test: omaddu -n "Timotheus Pokorra/test" -a
"timop" -c admin -p test62 -u timop -F
F = FreeBusy
see man
omaddu
uninstall firewall: rpm -e om-firewall --nodep uptodate
licences? in /var/opt/openmail/Contact-Licences install Samsung MAPI
create profile that uses samsung don't choose NOD Mail scanner, but
only HP Openmail (with server store) server: c.ict.om.org user: timo
pokorra (that after the -n) password: test62 outlook: options:
prompt for login name then in openmail/General/local files:
h:\openmail
it works: two accounts, create meeting, messages are
sent via email calendar, properties, permissions, add, find, add,
ok
then to read another persons folder, File / open / other users
folder
seeing others free busy times also works, without specific
read permissions
offline folders: create new pst file, copy e.g.
calendar to this file.
Installation of Teamware Officerpm -i
TeamWAREOffice-5.3.40-10.i386.rpm for directory other than /to: rpm -i
--prefix /usr/local/to TeamWAREOffice-5.3.40-10.i386.rpm login as user
twu to config
expert mode: NO setup as directory server:
YES serial number activation key name for site:
omcalendar passwords: test6262
install everything but forum and
library to start to
status
/etc/om-firewall.d/S62.internal.local: add lines: #
Teamware office Server listen ipchains -A int-in -j ACCEPT -p tcp
--dport 25000 # Teamware office client notifier listen ipchains -A
int-out -j ACCEPT -p tcp --sport 25003
start Teamware Admin on
client login settings, connection, server address:
192.168.1.200 make default ADMIN test6262 Admin / organization
directory or directly the Directory application entry / new / user
template entry / new / user
|
